Specifications

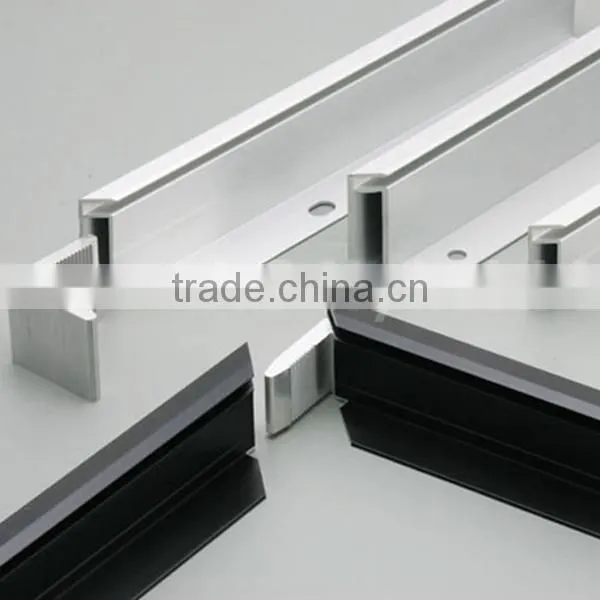

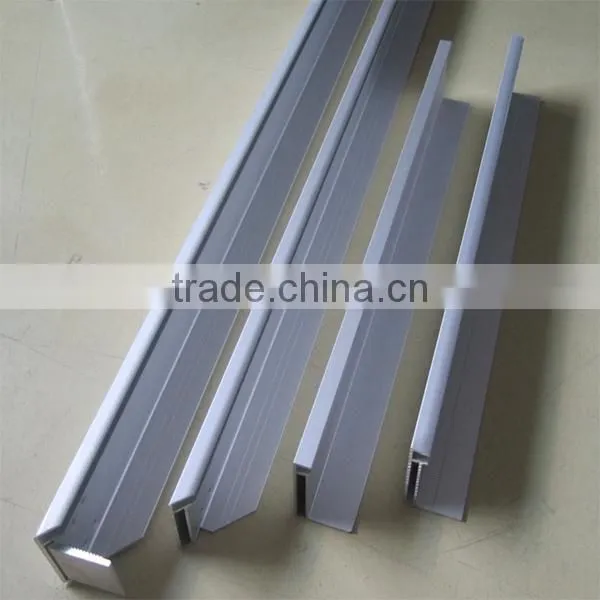

aluminium profile for solar panel frame
1.Material:al alloy6063
2.Temple:T5
3.Suface:Anodizing,powders coating
4.Ce: ISO
aluminum profile solar panel
(1) Certification: 9001:2008
(2) OEM service offered

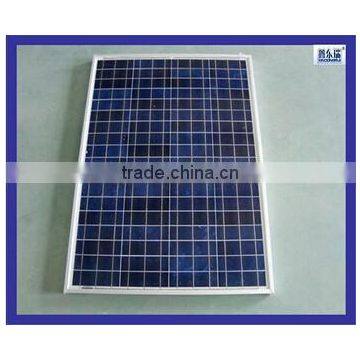

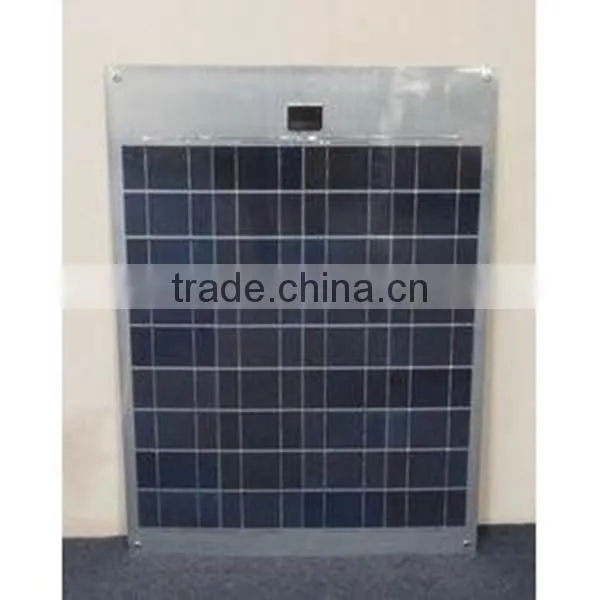

Aluminum frame for solar modules
(1).40*35 suitable for 30-120w
(2).50*35 suitable for 160-220w
(3).35*35 suitable for 80-180w
Aluminum frame for Solar panel
A).Features:
(1).35*35 suitable for 80-180w solar modules
(2).40*35 suitable for 30-120w solar modules
(3).50*35 suitable for 160-220w solar modules
(4).Many more other sizes such as: 25*35,30*35,46*40,50*35 etc, all the sizes according to customer's requierments.
Common specifications:
1956*992*50mm
1650*992*45mm
1640*992*45mm
1580*808*40mm
1576*808*40mm
1482*670*40mm
1200*545*35mm
754*669*30mm
824*545*30mm
620*286*30mm
B).Two types:
(1) 90°-Angle
(2)45° -Angle
C)Suface Treatment
(1). Anodizing:(Clear,silver,golden,bronze,other muiticolar.)
(2). Electrophoresis
(3). Powder,polishing,PVDF,Sandblasting,etc
Standard: GB/75237-2004,Q/320281/PDWD-2008
Certification: ISO9001
Specifications: According to your design drawings and your samples
Standard: GB/75237-2004, Q/320281/PDWD-2008
Material | 6063-T5, 6061 |
Angle | Can be made 45°and 90° |
Color | Silver, black, brown, golden etc. |
Specification | 620*286*30mm, 824*545*30mm, 1200*545*35mm, 1650*997*45*35mm, etc. |
Size | 50*35mm, ZD0513, (1)weight: 0.661kg/m, thickness: 1.8mm (2) weight: 0.7kg/m, thickness: 2.0mm 45*35mm, GY-03, weight: 0.55kg/m (striped); GY-05, 0.53kg/m (side B, mill finish) 40*35mm, GY-19, 0.57kg/m (striped); 0.59kg/m (side B, mill finish) 35*35mm, GY-01, 0.443kg/m (striped) 30*25mm, GY-12,0.4kg/m |
Features | (1). 35*35mm suitable for 80-180W solar modules (2). 40*35mm suitable for 30-120W solar modules (3). 50*35mm suitable for 160-220W solar modules, etc (4). Further processing: Punching, drilling, cutting, bending, planning etc.
|
Surface treatment | (1). Anodizing: (Clear, silver ,golden bronze, other multicolor.) (2). Electrophoresis (3). Powder, polishing, PVDF, Sandblasting, etc |
Package | Foam paper and carton box package, craft paper package, plastic film and the plastic wrap. All the specification and packing details can according to customer's request |
Advantages | (1). Die excellent accuracy up to 0.02mm (2). High weather resistance anti scratch anti corrosion (3).Warranty: 25 years (4). Certification: ISO9001:2008 (5). CNC matching (6). OEM service offered
|
Notice:
1. We have a variety of sizes for the aluminum solar frame,so you need not to pay for the new molds.
2. Our aluminum solar frame are appreciated by customers both at home and abroad.
3. We can support the aluminum solar frame according to your design drawings and samples,if you are interested in this, please contact us.
Atavantage of our products:
1.Quality-assured products, fully accredited by ISO9001 and "National Inspection-free produt".
2.The productcts are manufactured by first-class automatized equipment and and advanced quality inspection&test facilities.Die excellent accuracy up to 0.02mm.
3.High weather resistance anti scrach anticorrosion and good wearer resistance subtle edges and eligent appearance and eazy processing and installationn high brightness and hardness.
4.Wide variety of styles and sizes suitable for any tastes and budgets.
If you are interested in our produts and want to know further information,please contact us,we are very glad to offer you more details.
