Specifications
1. OEM2.CNC machining
3. mould design
4.surface finish
5. aluminum curving curtain rail
Specifications:
Material: Aluminum Alloy

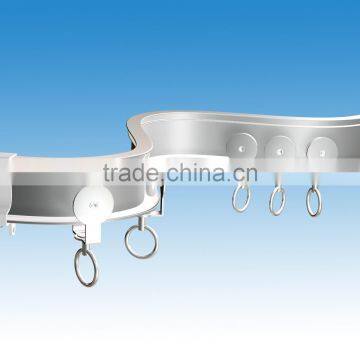

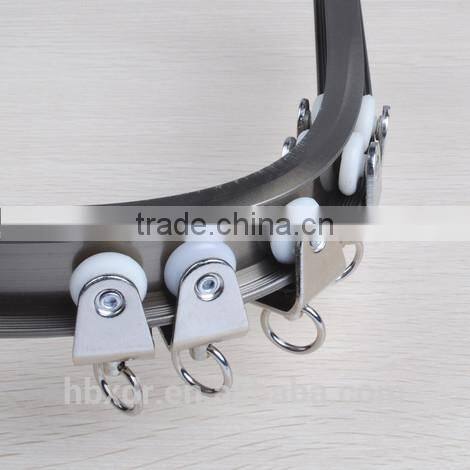

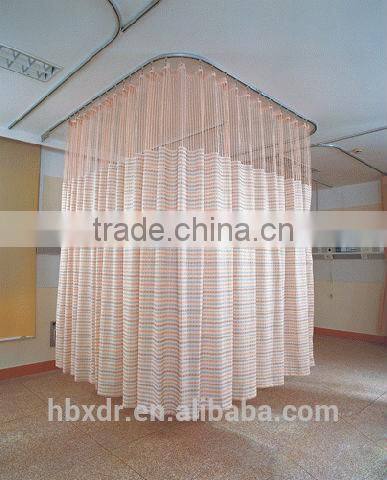

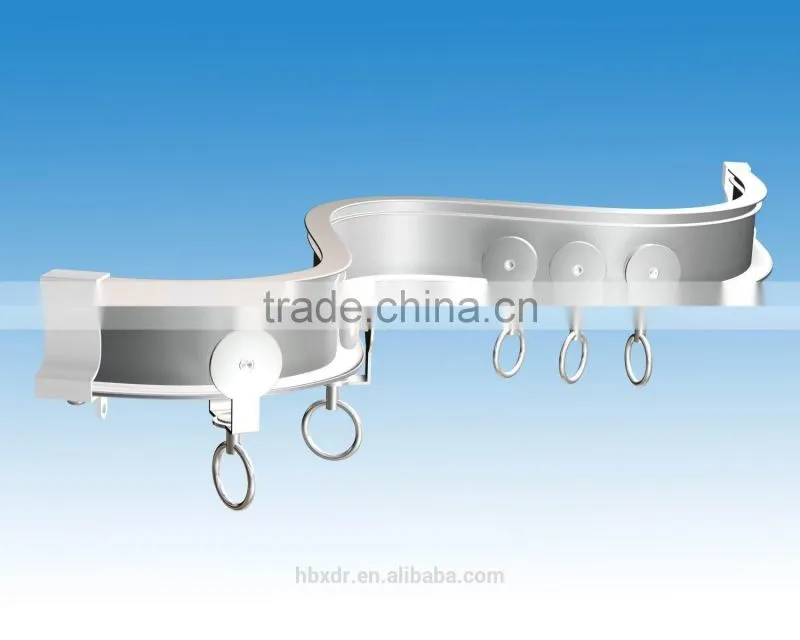

name: OEM high quality hospial & hotel aluminum curving curtain rail

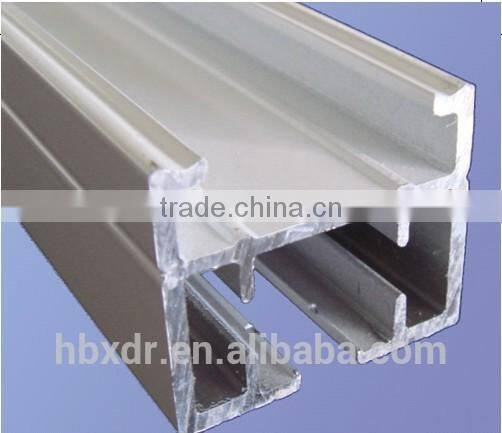

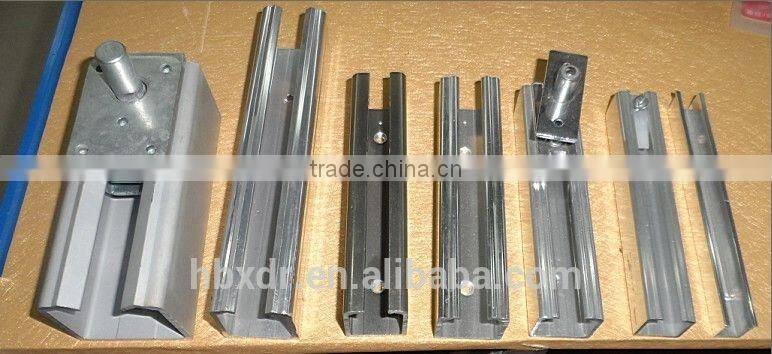

Our factory can produce customized aluminium profiles.If you have interests,please send your drawing to us for further discussions.Sample provided is also welcomed.
production Information:
1)Material.:Alloy 1050, 1060, 6061, 6063 etc.
2)Temper:T3- T38
3)Surface Treatment:
1.Powder Coated2.Anodized 3.sandblasting4.wire drawing5.Polish
4)Powder Coating Color: silver,white, black ,champagne,yellow,golden,and so on.
5)Deep processing ability: Drill hole, stretch bending, milling, welding, fabrication etc.
6)Cutting Length: According to your requirement and also the max length should be fit for 20” and 40” container.
Billet Technical Data
1)Chemical composition
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2).Mechanical property
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
1)Engineering design and support.
2)Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3)High Quality system, strictly inspection during production and whole inspection before package.
4)Good performance, product warranty for 15 years.
