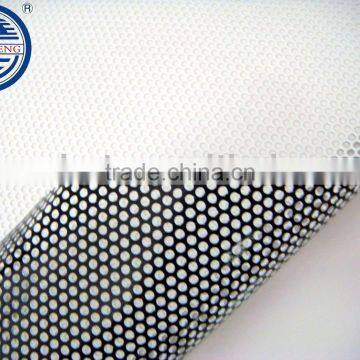

One-way Vision

Specification

Description

PVC

Type

PVC

Calendered monomeric soft PVC film

Thickness

150±10um

Color Code

Ceramic white

Back

Black coating

Shrinkage

0.8%

Surface Tension

30dn/cm

Opacity

>99%

Holes No.

Average 130/sq in

Hole Diameter

1.6mm

Distance Between Holes

2.4mm

Hole Space

50%

Adhesive

Type

Clear solvent based removable pressure sensitive glue

Weight(g/)

28±3

Adhesion Temperature

15~40

180°

Peeling Force

5N/25mmGB2792-81China National Standard

Initial Adhesion- Ball Tack

5#Steel Ball

GB4852-84China National Standard

Holding Power

800minGB4854-84China National Standard

Removable Durability

1,23~25,50~60%

One year cleanly removable glue on clean glass surface at temperature of 23~25 and RH of 50~60%

Liner Paper

Type

  Coated paper (Replacement Liner)

Color

White

Weight

160g±5g/

Release Force

0.4~1N/4cm

Storage Period

1222,5055

12 months under ordinary condition at temperature of 22 and relative humidity of 50-55%

Application

One way vision media used in digital and silk screen printing machines for signage display, vehicle graphics , subway and glass walls of building

Compatibility of machines and ink

MimakiRolandVutekHP Scitex38~43

Media is suitable for all solvent and eco solvent digital printers with heating system including Phaeton,Infiniti, Mimaki , Roland, Vutek and HP Scitex.

Inks should be the original inks from the printer manufacturers. The best printing temperature is 38-43.
