Specifications
Sprinkler Irrigation1.Size:1/2''
2.Working Pressure:2-3Bar
3.Discharge:2300-2800L/H
4.Diameter of nozzle:4.5*2.1mm

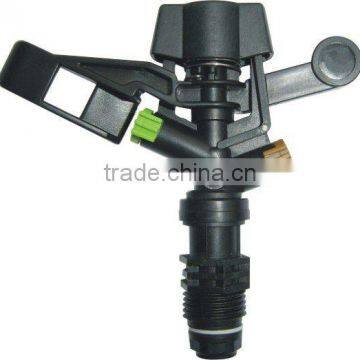

Sprinkler Irrigation
Function
1.Arm rotary sprinkler,This model has male and female thread.
2.Impact driven,Adjustable water spray distribution.
3.The material of this product is the best plastic and stainless steel.
4.Diffuser screw breaks water into smaller droplets for uniform watering.
5.Adjustable deflector flap adjusts stream length from 20-foot(6m) to 41 foot(12.5) radius.
6.The plastic construction,stainless,steel spring make the quality is durable what is more,The performance is attractive.
7.Pie-cast,Zinc spray arm controls stream,Prevents side splash onto building and walkways.
8.It is the circle or part circle operation,It can spary evenly by 180 or 360 degree rotated.Meanwhile the degree can be changed according to the need of user.3/4,1/2 inch male pipe thread connection.
9.Wide range of flow rates and long spray radius.Spacing up to 50 feet apart high gallonage output.
10.The colour of the sprinkler nozzle can be changed according to the demands of the customers as red,Blue,prink etc,So as the arm rotary,Like yellow,grey,red.
11.Our products are exported to America, Russia, Brazil, Australia and
so on the other countries off the world, so we have rich experience in
export to save a lot of trouble for you.
If there is any question or need pls feel free contact us for more information.
|
Diameter of nozzle(mm) Color of nozzle |
Working pressure (Kpa) |
Single-nozzle flow rate(L/H) |
Two-nozzle flow rate(L/H) |
Range (m) |
|
2.5+1.6 Purple+brown |
200 |
320 |
470 |
9.5 |
300 |
400 |
580 |
10 |
|
400 |
470 |
670 |
10 |
|
|
2.8+1.6 Orange+brown |
200 |
420 |
550 |
9.5 |
300 |
520 |
700 |
10 |
|
400 |
600 |
810 |
10 |
|
|
3.0+1.6 Red+brown |
200 |
480 |
610 |
10 |
300 |
590 |
760 |
10.5 |
|
400 |
690 |
880 |
10.5 |
|
|
3.2+1.6 Green+brown |
200 |
540 |
680 |
10.5 |
300 |
680 |
850 |
10.5 |
|
400 |
790 |
990 |
11 |
|
|
3.5+1.6 Blue+brown |
200 |
640 |
780 |
10.5 |
300 |
800 |
970 |
11 |
|
400 |
940 |
1140 |
11 |
|
|
4.0+1.6 Black+brown |
200 |
820 |
950 |
11 |
300 |
1030 |
1200 |
11.5 |
|
400 |
1220 |
1430 |
11.5 |
