1 | HS Code: | 3920610000 | Payment term: | T/T,L/C,Trade assurance... |
2 | Delivery time: | 7-10days | Packing: | Nude packing,kraft paper,pallet.. |
3 | Sample policy: | Free samples is OK. | Shipping Port: | Shanghai port,Ningbo port |
4 | Min Order: | At least 100 square meters | Original: | Zhejiang,China |
5 | Raw Materials: | 100% Lexan//Bayer virgin materials | Color: | Clear,blue,green,opal..or customized |
Remarks: | OEM can be provided according to your request. | |||

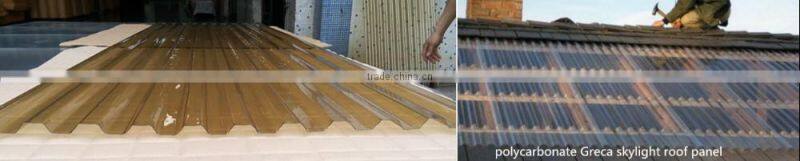

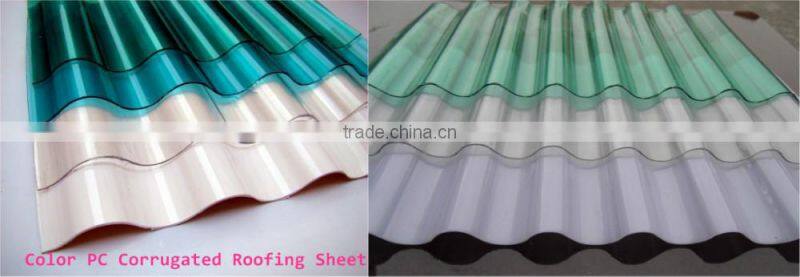

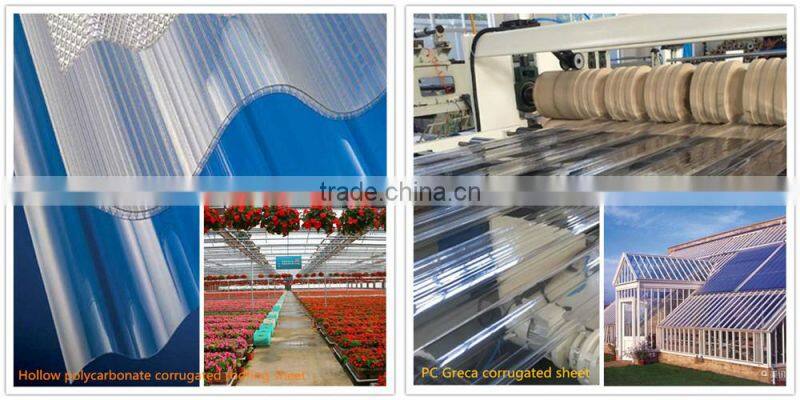

1. Polycarbonate corrugated roofing sheet
Color : Clear, blue, light green, red, opal, yellow,bronze (gray)...etc ,others can be customized
2. TECHNICAL PARAMETERS
Characteristics | Unit | Data of twin-wall hollow sheet | Data of triple-wall hollow sheet | Data of polycarbonate solid sheet |
Light transmission | % | 40~82 | 25~75 | 88~92 |
Impact strength | J/m | 2.1~2.3 | 2.4~3.5 | 50 |
Coefficient of thermal expansion | mm/m °C | 0.065 | 0.065 | 0.065 |
Heat conductivity | W/m² °C | 3.0~3.9 | 2.2~3.2 | 0.21 |
Service temperature | °C | -40°C~+120°C | -40°C~+120°C | -40°C~+120°C |
Tensile strength | n/mm² | ≥60 | ≥60 | ≥60 |
Bending strength | n/mm² | 100 | 100 | 100 |
Bending elastic modulus | Mpa | 2400 | 2400 | 2400 |
Tensile stress | Mpa | ≥65 | ≥65 | ≥130 |
Elongation at break | % | ≥100 | ≥100 | ≥130 |
Sound insulation effect | db | 20decibel decrease for 10mm thick sheet | 25decibel decrease for 16mm thick sheet | 35decibel decrease for 6mm solid sheet |
Impact strength | Transparency | Specific gravity | Coefficient of thermal expansion | Service Temperature | Heat Conductivity | |||||
2.1j/m-2.3j/m | 40%-80% | 1.2g/cm³ | 0.065mm/°C | -40°C—120°C | 3.0-3.9w/m²°C | |||||
Tensile Strength | Flexural Strength | Modulus of elasticity | Effect of sound insulation | Tensile stress at break | Elongation at break | |||||
≥60N/mm | 100N/mm² | 2400Mpa | 10mm two laminates reduced 10db | ≥65Mpa | >100% | |||||
3. RAW MATERIALS
4. PACKING
5. LOADING CONTAINER
6. COMPANY INTRODUCE
Haining Pure Plastic Sheet Co.,Ltd is a leader manufacturer in China which supplying polycarbonate sheet :
1.polycarbonate hollow sheet(twin & multiwall,# & X wall);
2.polycarbonate Solid sheet(flat sheet,frosted & embossed sheet);
3.Polycarbonate corrugated roofing sheet (polycarbonate greenhouse)
4.PC accessories.
We have a long history of providing quality products and warmhearted service that keep our clients cooperating with us for 20 years.
100% imported original BAYER&SABIC material with UV coating,warranty of 10 years guarantee.
7. CERTIFICATIONS
8.Exhibition & Trade show
9. OUR ADVANTAGE
1)20 years of manufacturing quality polycarbonate sheets
2)Europe imported equipment
3)Durable for 10 years with guarantee letter.
4)Products completely entered the world market.
5) Complete product range(series) .
6) 20 years of store operations and management experience
7) First-grade environment and convenient land,sea and air traffic.
8) Through comprehensive international certification such as ISO,SGS and so on.
9) We will not sacrifice our future for today’s profit.
welcome to visit our products,more detail informations and latest price list ,pls no hesitate to contact me!!
