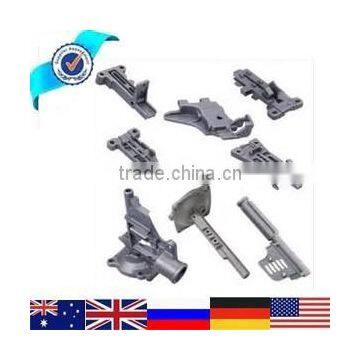

Help CenterDie Cast Aluminum Pneumatic Tools Parts
Related Products
-
Iron Casting Furniture PartsUS$ 2 - 5MOQ: 100 Pieces -
Customized Seal Laminator Parts From ChinaUS$ 15.99 - 33.99MOQ: 100 Pieces
-
Custom Made Die Casting Mill Finish Aluminum ProductsUS$ 0.5 - 20MOQ: 100 Pieces
-
Custom Made Die Casting Heat Changer Aluminum ProductsUS$ 0.5 - 20MOQ: 100 Pieces
-
Custom Made Sand Casting Aluminum Solar StandUS$ 0.5 - 20MOQ: 100 Pieces
:
1. Raw Material (Aluminum ingot / Aluminium ingot):
aluminum alloy ADC12, A360, A380.
2.Design to prototyping:
(1)mould design according to Pro/E, Auto CAD, Solidwork,
| 1.mould design | according to CAD file(IGES,STEP,PRT) |
| 2.mould material |
mould frame:45#steel or ductile iron mould core:H13 |
| 3.suitble process | die casting |
| 4.suitble material | aluminum,zinc,copper |
| 5.suitble machine | 88-800ton hot chamber die casting machines |
| 6.mould life | 50000shots |
| 7.mould time | 35days finished mould |
(2)Mould flow analysis.
Mould model will indicate :
- Tentative gate and ejector pin location
- Tentative parting line locations
- A general idea of the configuration of the cavity, core, and any sliders needed.
(3)Test mould, proofing.
| Picture | Machine |
|
one set 800 ton hot chamber die casting machine. |
|
two sets 500 ton hot chamber die casting machines. |
|
two sets 280 ton hot chamber die casting machines |
|
two sets 160 ton hot chamber die casting machines. |
|
one set 88 ton hot chamber die casting machine. |
(4)Deburring,Drilling,Post machining.
(5)Surface treatments:
Polishing, painting, anodization, shot blasting, power coating, electrophoresis, zinc plating, black oxidation.
(6)Quality Control
Aluminum Casting parts, Aluminum Alloy Casting, gravity die Casting, auto parts and components, air compressor, housing for power resistors, handles for switching power supplies, clips, Aluminum front panels, terminals, turning parts, fuse holders etc.
A Manufacturer of die cast handles. Zinc & aluminum die castings, pneumatic fittings, die cast handles & automotive starter, electrical & tool housings. Die casting capabilities include tooling, drilling, tapping, facing, slotting & CNC turning. Industries served include electrical, automotive, aircraft, hardware, appliances, architectural, agricultural, communications, telecommunications & government defense.
| Die casting mould | Cavity | Single or multiple |
| Material | H13,DIEVAR,QDN,8407,2344V,TQ1,2343,SKD61, 45#steel,etc. |
|
| Heat treatment | Hardened, Nitriding | |
| Hardness | HRC50~55 | |
| Mould features | Advanced design, Logical structure, High precision, Qualified materials, Long lifetime, Short delivery time. |
|
| Die casting product | Material | Aluminum alloy,A360, A380, A383, AlSi10Mg, AlSi9Cu3, ADC3, ADC6, ADC12, ZL104, ZL107. |
| Process | Casting, Deburring, Machining, Surface Treatment, Packing. | |
| Surface treatment | High quality polishing, Chrome/nickek/Zinc(white, blue, yellow, black)plating, hot galvanized, painting, powder coating, Anodizing, electrophoresis, sandblasting and ect. | |
| Leadtime | 7-30 days | |
| Advantage | Company established | in 2003 |
| Software | Pro/E, Auto CAD, solid work 2001,CAXA,UG,CAD,CAM | |
| Machines | High, refined, sharp equipment, a more high-speed processing center, walking thread cuttings, precision machine sparks, large grinding machines, CNC engraving machines and 10PCS of die-casting machines ( range from 160 to 1250 Tons). | |
| Inspection equipment | Metal material metallographic analyzer, metal detection machine, coordinate measuring machine, large-scale aluminum material direct reading spectrometer, aluminum material hardness meter, X optical testing machine, tensile testing machine, used from mold manufacturing to samples test. | |
| R&D team | Plentiful experience and skillful technique on die casting | |
| Certifications | ISO9001:2008, TS16949 |
