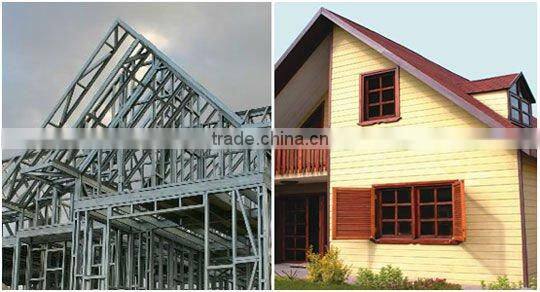

prefab steel house villa/cottage

Specifications

1.High price performance,
2.Durable structure,, easy to assemble and disassemble, 3.Environment-protection,et

.........................................................................................

    contact Sitwell S :

     Laizhou Hongshengda Machinery Co., Ltd

      Tel:+ 86 -1525456703
      Fax:+86 0535 2418818
.........................................................................................



Characteristics:

• Energy-saving, lightweight, and environmental protection
• Polyphenyl granule in Vanjoin board has good heat-insulation effect and heat lost ratio is far below the other brick wall building
• Energy-saving effects of the building is greatly improved
• Raw materials do not include harmful substances
• Environmental products, it is highly recommended by the government
• Capacity: 650kg/m³, just one sixth of the brick building
• Comparison of inner wall panel 75 and 120mm it will increase 12m practical area, for 100m² house, it will increase 4.16m²
• Waterproof and damp resistant
• With fireproof feature

NO.	Item	National Standards			Testing Indexes
		60mm	90mm	120mm	60mm	90mm	120mm
1	/ Anti-impact Capacity/times	≥5	≥5	≥5	≥8	≥10	≥15
2	/ Anti-bending damageload/times over deadweight	≥1.5	≥1.5	≥1.5	≥3	≥4	≥5
3	/Mpa Compressive strength /Mpa	≥3.5	≥3.5	≥3.5	≥5	≥5	≥5
4	Softening coefficient	≥0.80	≥0.80	≥0.80	≥1	≥1	≥1
5	/Kg/ Surface density g/	≤70	≤90	≤110	≤55	≤70	≤85
6	a/% Moisture rate  a/%	≤12/10/8			≤10/9/7
7	/mm/m Drying shrinkage value /mm/m	≤0.6	≤0.6	≤0.6	≤0.45	≤.0.5	≤0.5
8	/N Single point hanging force/N	≥1000	≥1000	≥1000	≥1200	≥1300	≥1500
9	/Db Sound insulation capacity in the air /Db	≥30	≥35	≥40	≥35	≥40	≥45
10	/h Fire proof limit /h	≥1	≥1	≥1	≥2.5	≥3	≥4
11	b/w/.k Heat transfer coefficient  b/w/.			≤1.0			≤1.0
12	Radioactivity Limit	≤1	≤1	≤1	≤1	≤1	≤1
13	IRa IRa Inner radiation indexes	≤1	≤1	≤1	≤1	≤1	≤1
14	Ir Ir Outer radiation indexes	≤1	≤1	≤1	≤1	≤1	≤1
