modern cheap steel structure building for sale
Laizhou Hongshengda Machinery Co., Ltd. ,belongs to Lazhou Construction Group, is a professional steel structure of warehouse ,workshop and mobile house.
We are located in Chengguo Park, Laizhou, Yantai City, Shandong Province. We have convenient transportation and are adjacent to Qingdao port, Yantai port, and Laizhou port. We possess a factory of four sections covering a construction area of 92,046 square meters and a yearly output of 120000 tons. The company has wide standard workshop including aluminum-plastic windows&doors processing with the new steel-structure combination equipment—multi-NCflame cutting machine,automatic submerged arc welding machine,automatic machine legislation overturned group,H-beam straightening machine,shot crew rusing,Bending machine,three-dimensional numerical control drilling machine and other advanced production line of the color steel plate, with steel structure design,special-shaped steel structure design and the fast and accurate computer program of the budget and the final accounts.Furthernore,it also has strong professional techincal force responsible for the research,development,design,manufacturing,installation work.Relying on the above mentioned advantages and the high-quality workteam as well as such advanced equipment combination, the company is capabale of providing all customers with reliable fist-class products and services.
Our products include steel beams, stainless steel panels, sandwich panels, color steel panels, stainless handrails, stainless glass paneled balustrades, stainless glass awnings, free stainless steel doors, and frame-less glass doors. Besides, we can also machining stainless windows & doors and aluminum-plastic windows & doors. As a professional steel structure manufacturer, we have good equipment of roof and wall processing lines ,We used to deliver and construct steel structure buildings, stadiums, substations, warehouses, and workshops as your drawing and your budget.
Steel structure prefabricated warehouse specifications:
No. | Sort | Name | Specification |
1 | Specification | length | No limited |
2 | Width | Less than 11m | |
3 | Wall height | 2600mm/2800mm | |
4 | Clear height | 2600mm/2800mm | |
5 | Roof slope | 15° | |
6 | Standard accessory | Wall board | 75mm thickness double color-steel sandwich panel with polystyrene foam inside. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.546w/ m².k. |
7 | False ceiling | 75mm thickness double color-steel sandwich panel with polystyrene foam inside. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.546w/ m².k. | |
8 | Roof board | color steel corrugated sheet, 0.5mm thickness | |
9 | Outside door | Security door, single door with dimensions of 900*2100mm, furnished with a handle lock with 3keys. Doorframe is made of 1.2mm steel, and door is made of 0.7 mm steel, 90mm thick rock wool insulation foam. | |
10 | Inside door | SIP, single door with dimensions of 750*2000mm, furnished with a cylinder lock with 3keys. Doorframe is made of aluminum, 50mm thick EPS insulation foam. | |
11 | Window(W-1) | PVC, white color, with dimensions of 1200*1200mm, glazed with glass in a thickness of 5mm, two bay fixed, and two bay sliding, supplied with fly screen. | |
12 | Window(W-2) | PVC, white color, with dimensions 500*500mm, glazed with glass in a thickness of 5mm, casement opening, supplied with fly screen. | |
13 | Channel | Galvanized Steel Plain Sheet press moulding Material: Q235. Painted | |
14 | Post | Square steel tube Material: Q235. Painted | |
15 | Purline | Square steel tube Material: Q235. Painted | |
16 | Roof truss | Square steel tube Material: Q235. Painted | |
17 | Decoration and connection | color steel sheet, 0.35mm thickness | |
18 | Option | Decorative floor | PVC, laminated or ceramic tile |
19 | Drainage system | Provided plan, design and construction | |
20 | Electric system | Provided plan, design and construction | |
21 | Technical parameter | Bearing load | 30kg/m2 |
22 | Wind pressure: | 0.45KN/M2 | |
23 | Fire proof | B2 grade | |
24 | Resistant temperature | -20 ºC to 50ºC |
Steel structure prefabricated warehouse features:
1. Dimensions: W9.0xL15.0xH5.5m (29'6''x49'x18')
2. Fabric: Durable PVC tarpaulin, waterproof, fire retardant and UV resistant.
3. Galvanized special steel tube, exellent for anti-rusting and corrosion.
4. Ele.remote-controlled door for easy operation.
5. Ideal for storing and protecting grain, livestock, hay machinery, tractors, and equipment. 6. Can be used as a workshop.
7. Designed to withstand high winds and heavy snow conditions, make your property safe and sound.
8. Under the same width, the length can be adjustable every 3m according to your option.
9. Snow load: 0.3KN/M2, Wind load: 0.4KN/M2

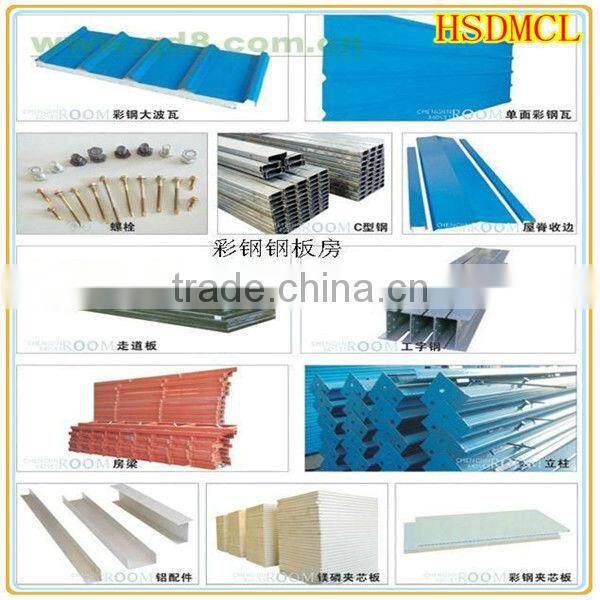

Steel structure prefabricated warehouse main materials:
1. Q235, Q345 H section steel structure for columns and beam
2. Pre-embedding anchor bolts for connection columns to foundation
3. Intensive bolts for connection tween columns and beams
4. Wall/roof panel: one layer corrugated steel plate or sandwich panels
5. Windows/doors, PVC, aluminum alloy, steel ,etc.
6. Color steel plate or gavanized steel gutter and PVC tubes for rain water
Steel structure prefabricated warehouse advantages:
- Well and High Quality Control
- Prompt Delivery
- Customer's Designs and Logos are Welcome
- Competitive Prices
- Earth-friendly Products
- In a Variety of Designs
- Small Order Acceptable
- OEM Accepted
Steel structure prefabricated warehouse qualify certifications:

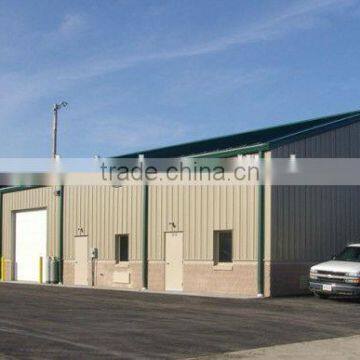

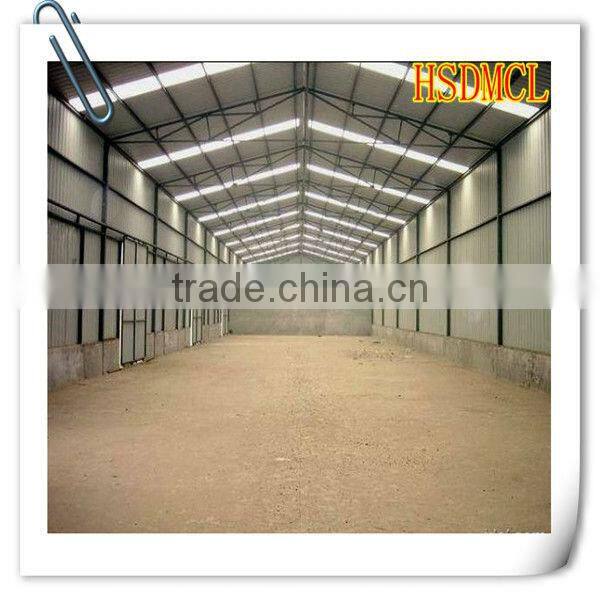

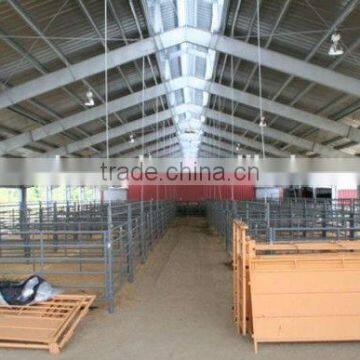

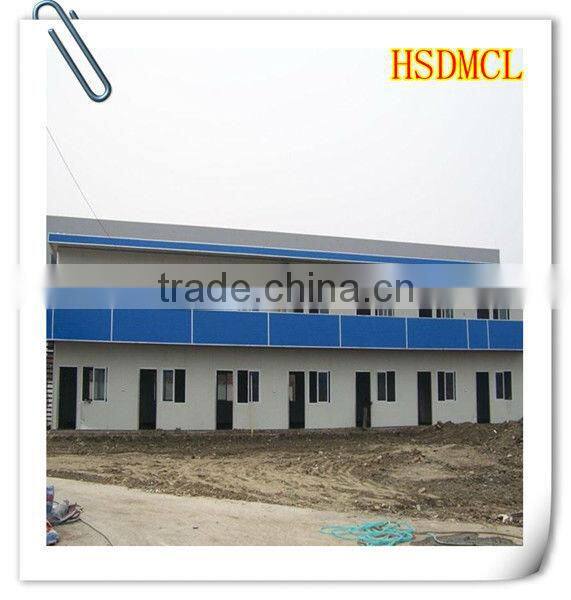

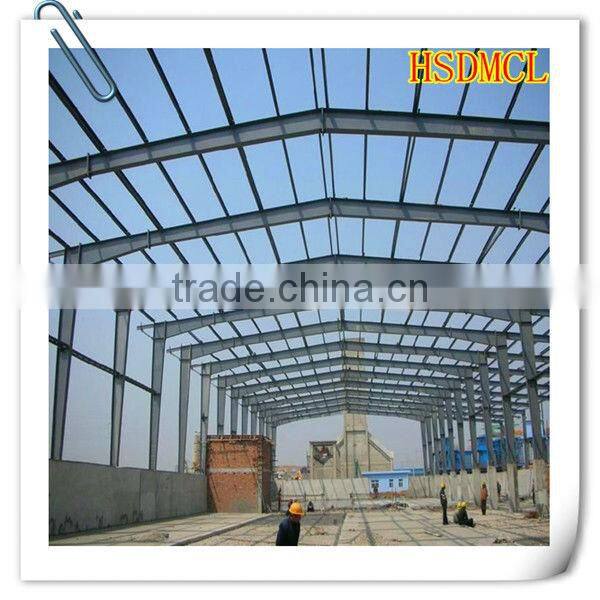

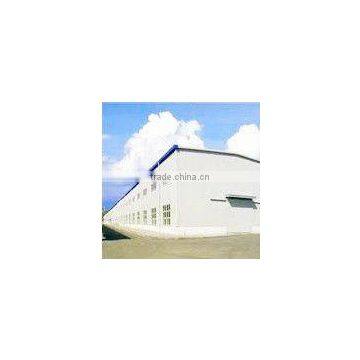

Steel structure prefabricated warehouse showing:
