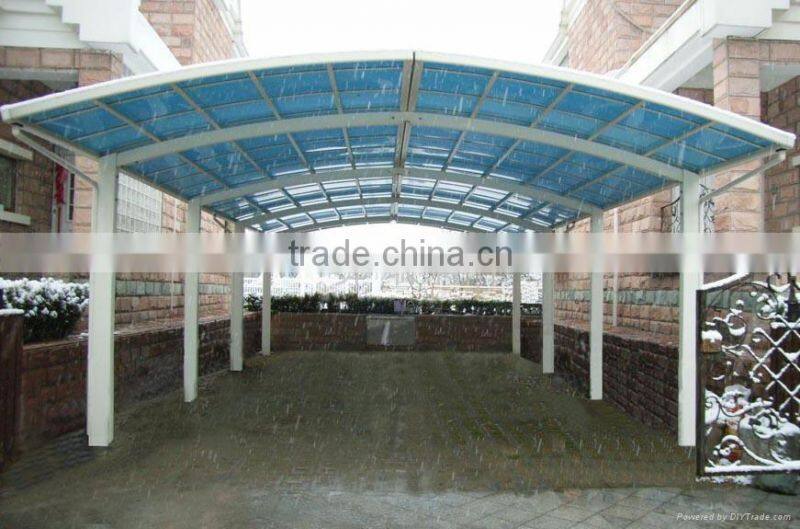

Steel Structure Shed

Specifications

Steel stucture carport

Main Body:

Steel Fram with Tunefulite PC Hollow sheet or PC solid sheet.,or steel sheet.

1.Building area:Standard unit:L10000XW3000X3000MM

2.Production feature: Snow load: 0.3KN/sqm  Wind Load: 0.4KN/sqm

Good transparency: as clear as glass, the transmission can reach 88%

Light weight:  solid sheet is less than half the weight of glass, hollow is about 1/20 of glass

Anti-UV treatment: keeps the sheet from turning old for its anti-UV layer. And turn UV into other useful light for the photosynthesis of foliage.

High impact strength:  200 times stronger than glass

Can be thermoformed or cold formed.

Fire proof: according to the GB8624-1997 Standard, it reaches Flame Retardant B1 Grade. It will crush out itself when it is away the flame without any smother or venomous gas.

Thermal insulation, cold insulation: -40 to 120degree

Sound insulation: reduce the noise by 20-45 db. Transmittance:49%

Flame retardancy:B1

No pollution and environment protection.

3.size:Span is 5.0~5.3m,Height is 2.5~3m,Arch rise is 0.45m. Arc unfold:5.5m

Fram

Post:Galvanized square tube 150mmX100mm

Arc roof:Galvanized tube 80mmX40mm

Installation Accessory:

1.Cover material: 8mm PC Hollow sheet. Guarantee time: 10years.(the life is 12 years or so).

2.Mating material: Fasten PC sheet with Aluminum alloy or PVC batten,use waterproof tape,connect aluminum batten with steel frame use tapping screw

   The company has wide standard workshop including aluminum-plastic windows&doors processing with the new steel-structure combination equipment—multi-NCflame cutting machine,automatic submerged arc welding machine,automatic machine legislation overturned group,H-beam straightening machine,shot crew rusing,Bending machine,three-dimensional numerical control drilling machine and other advanced production line of the color steel plate, with steel structure design,special-shaped steel structure design and the fast and accurate computer program of the budget and the final accounts.Furthernore,it also has strong professional techincal force responsible for the research,development,design,manufacturing,installation work.Relying on the above mentioned advantages and the high-quality workteam as well as such advanced equipment combination, the company is capabale of providing all customers with reliable fist-class products and services.
Our products include steel beams, stainless steel panels, sandwich panels, color steel panels, stainless handrails, stainless glass paneled balustrades, stainless glass awnings, free stainless steel doors, and frame-less glass doors. Besides, we can also machining stainless windows & doors and aluminum-plastic windows & doors.
