Simple low-cosesteel strycyure carport

Metal carport

The height can be 6’ to 14’

The width can be 12’ to 48’

The length can be less than 41’,if you want it longer than 41’ just connect two metal shed together

80*40*2 square tube for the structure,0.4mm thickness corrugated metal sheet for the roof and wall.

Wind load 130mph snow load 30psf

each style can add wall to make it semi or total closed as customer’s request

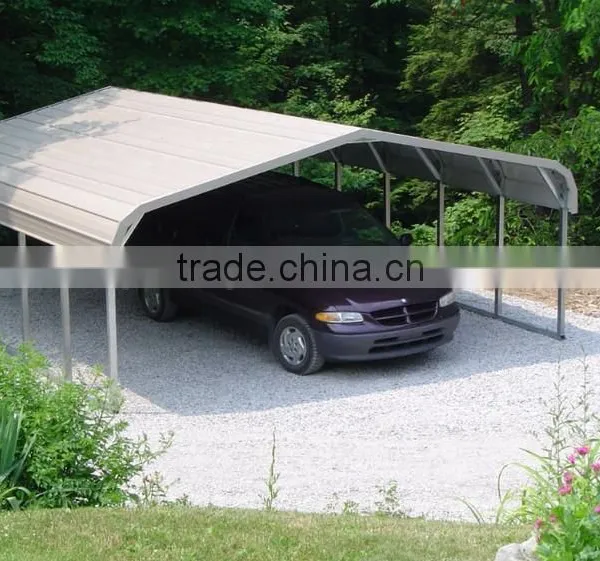

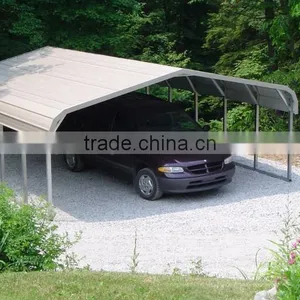

1.Difference between the three kinds carport

The regular style is rounded on the sides and has a barn shaped roof. This is the most economical of the metal carports. The boxed eave carport has an A-frame gable roof with a 0.2m overhang on both sides. The vertical carport also has an a-frame roof as well as a 0.2m overhang on both sides. All carports have a 0.2m overhang on the front and back ends. What makes the vertical carports for sale different from the boxed eave carports is a feature of the roof. On the vertical style carport, the roof sheeting runs up and down from side to side which allowing the snow to easily slide off of the roof. The vertical carport is the only model that has this roof design. On the other two styles, the metal roof runs the length of the building. In order to attach the sheeting to the roof of the vertical carport, bracing is attached under the roof. This feature creates a strong roof for the vertical carport and allows snow to slide off the top. No more scraping and shoveling snow off the roof of the carport!

                                                Vertical style roof

2.regular size(width 12’-24’,length 21’-41’,height 6’-14’)

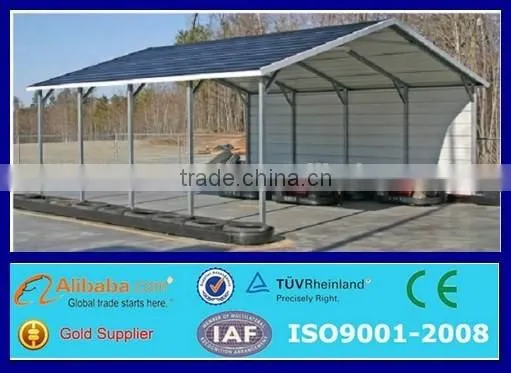

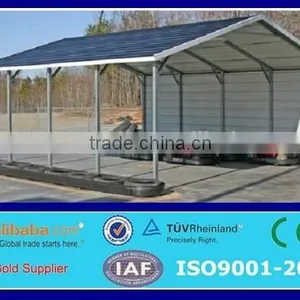

               boxed eave carport

                 vertical style carport

You can add wall and door to make it a garage

2.tripple wide shed(width 26’-30’,length 21’-41’,height 6’-14’)

                                        Pictures

3.   32’ to 40 wide(width 32’-40’,length 21’-41’,height 8’-14’)

                                     Pictures

4.lean to building(width 36’-48’,length 21’-41’,height 6’-14’)
