Low cost light weight color steel foam panel / wall panel construction materials

Specifications

1. Wall panels brief induction:

Sandwich Panel is composed by three layers, up and lower steel sheet wotj specific core materials.

The panels are formed by laminating and pressing with 2 components PU glue through forming machines;

2 Specification:

1. Net Width:950mm

2.Thickness:50mm-175mm

3.Length: as per customers' requests

4.Common color: red, blue, white

Up/Lower steel sheet:

Thickness: 0.3mm-0.6mm

Width: 820mm-1100mm

Material: color-coated panel/zinc plate,galvanized steel sheet

Surface: LDPE Guard Film

Core material:

Tpye: EPS, Glasswool, Rock Wool, PU

Density: 8-15kg/ m3

Thickness: 50mm-75mm-100mm-120mm-150mm

Length: variable length according to order according to container

3 Connection types:

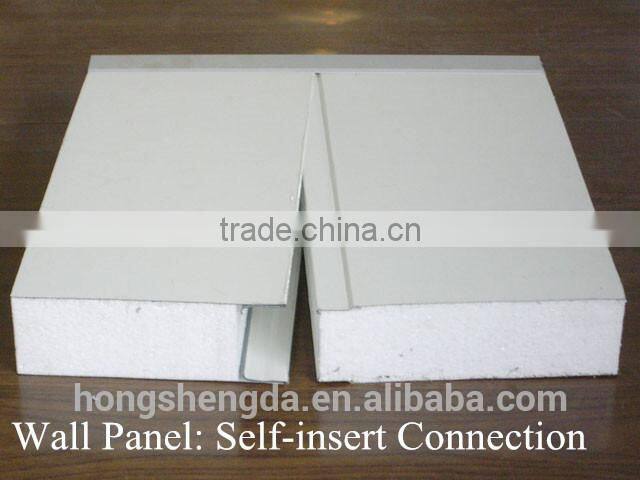

1. Wall Panel: Self-insert Connection;

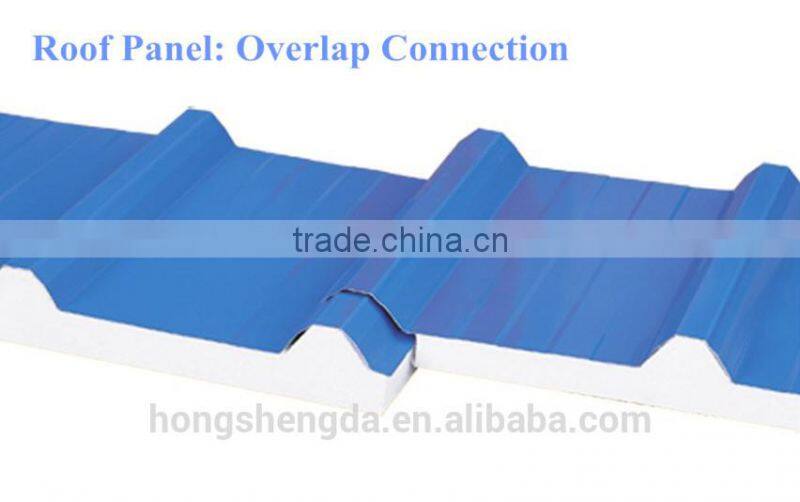

2. Roof Panel: Overlap Connection;

Screw and Accessories is available as your design.

4 Advantages

1 Light Weight,Sound Insulation

2 Heat Insulation,Preservation

3 Environmental protection

4 Waterproof and damp resistant

5 Fire,Water Proof

6 Fast, Easy

7 Good appearance

PS:The sandwich panel has been a new type of multi-purpose construction material. It is featured with temperature keeping, hot & sound insulation,

waterproof and fireresistant functions as well as light weight and decorative application. It is widely used

as the wall or roof for industrial or residential buildings, such as cold storages, industrial workshops,

prefabricated houses, etc.

Sandwich panel used for buildings:

Thanks for going througn our product proflile. For more details about our prodcuts, please do not hesitate to contact me. We're ready to serve you!
