U Glazing Structure Polycarbonate Multi-wall Sheets

FOB Price

Negotiable / Square Meter

1000 Square Meters(Min. Order)

Port Shanghai/Ningbo
Payment TermsT/T D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	Gensin/Liyans
Model Number	GA-101

Product Description

Specifications

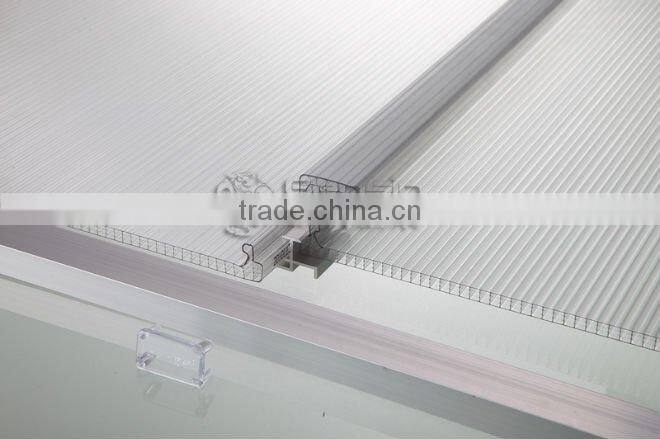

U glazing Structure Polycarbonate Multi-wall Sheet
1. H-structure and X structure
2. triple-wall
3. produced by 100% Lexan ra

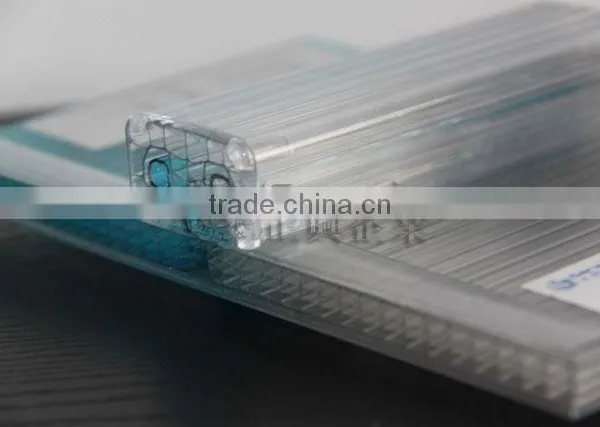

Hollow U-lock polycarbonate sheets

Specification for PC triple-wall sheet(H structure& D structure):

1)Standard width:2100mm

2)Length:no limit

3)Thickness:6mm--30mm

4)Colors:clear,blue,green,brown,bronze,opal,red,etc.

Technical Features:

1)Light weight:8mm-1.9kg/sqm,10mm-2.2kg/sqm,12mm2.6kg/sqm,14mm-3.1kg/sqm 16mm-3.3kg/sqm

2)High impact resistance

3)Good light transmission:60%-77% for clear color different thickness

4)Good heat insulation(K value):8mm-2.8W/m²K 10mm2.7W/m²K

12mm-2.6W/m²K 14mm-2.5W/m²K, 16mm-2.3W/m²K

5)UV layer thickness: 50μm ,can filter about 99% ultraviolet radiation in sunshine

6)The minimum bend radii for different thicknesswith standard size(2100mm*6000mm)

10mm--1750mm, 12mm--2100mm,14mm--2450mm,16mm--2800mm

7)Simply processed and installed

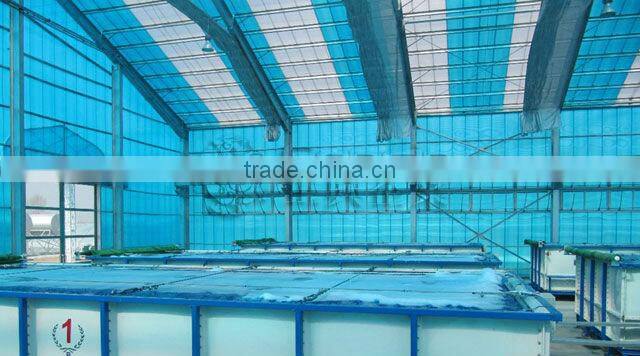

Applications:

1)Building/House skylights

2)Work shop/storehouse skylight

3)Roofing

4)Carports

5)Indoor partition

6)Cover of greenhouse
