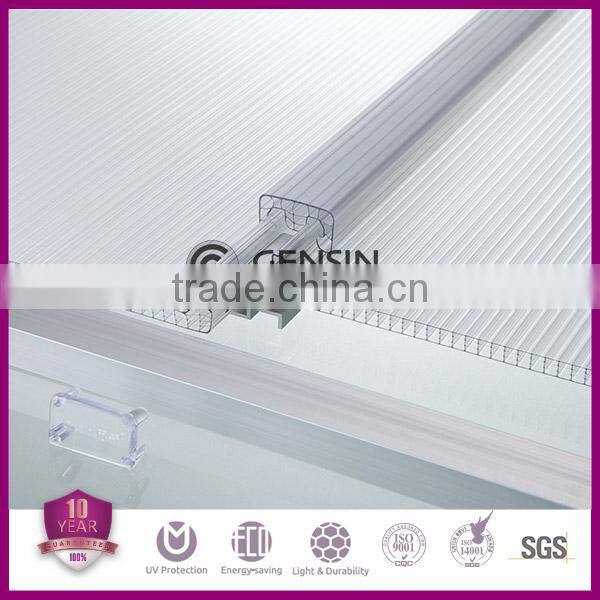

10year warranty uv coated U-lock polycarbonate sheet, pc connection system
Gensin U-lock polycarbonate sheet is an advanced construction system, its design has been proved it combined good lighting, heat insulation and high impact resistance features. I t provides a l.ight, non heat expansion and no leakage design, can bearing a very high weight loads. Advantages of Gensin standing seam connection systems make it a good choice for long-time use.

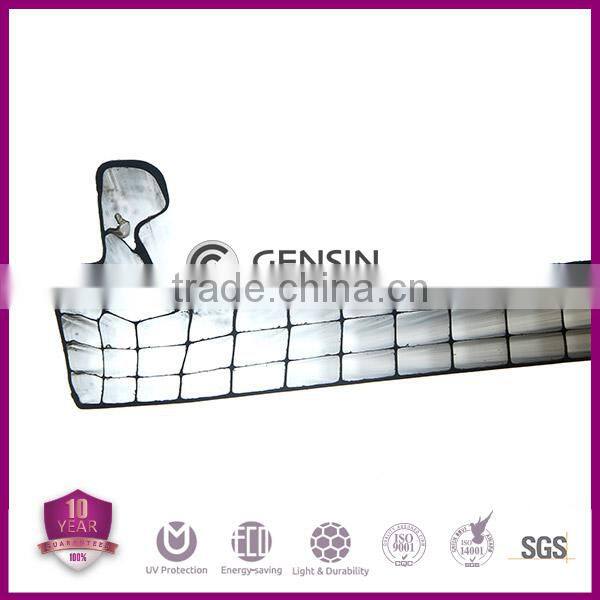

Polycarbonate u-locking standing seam connection system offers:
· A concealed fixing system.
· A positive mechanical lock between sheets ensuring impact compliance.
· A system that is 100% watertight.
· Eliminate penetrations through the sheet.
· Fix to purlins or rafters only.
· Free form glazing to suit any structure shape.
· More than 99.9% protection from harmful UV.
· Quick and easy installation.
· UV protection by Co-Extrusion eliminating any chance of delamination.
Advantages:
1. Withstand high loads
2. No thermal expansion
3. Simple and quick to install
4. Prevent leakage
5. Thermal protection and insulation
6. Suitable for bending design
7. UV protection & 10 years gurantee
8. Intellective & light control series products
Property |
method |
conditions |
units |
Value |
Density |
D-790 |
|
g/cm3 |
1.2 |
Heat deflection temperature (HDT) |
D-648 |
Load:1.82Mpa |
°C |
130 |
Service temperature-short term |
|
|
°C |
-50-120 |
Service temperature–long term |
|
|
°C |
-50-100 |
Coefficient Of Linear Thermal Expansion |
D-696 |
|
cm/cm°C |
6.5*10-5 |
yield strength |
D-638 |
10mm/min |
Mpa |
62 |
elongation at break |
D-638 |
10mm/min |
% |
>80 |
falling weight impact test |
ISO 6603/1 |
|
J |
40-400 |
Applications :
- Buildings
- Business and retail building
- Sporting roofing
- With canopy footway
- Fairground
- Service station
- Entrance
- Natatorium roofing
- Color: clear, bronze, white opal, blue, orange, etc.
- GENSIN ONLY PROVIDE THE GRADE A POLYCABRONATE SHEET !
- WE HAVE 12 PRODUCTION LINES FOR DIFFERENT POLYCARBONATE SHEETS, GENSIN OWNS ONE UNION MACHINE.
- GENSIN HAS A GREAT SALES TEAM, FEEL FREE TO CONTACT US !
