Specifications
U Locking System Polycarbonate Multi-wall Sheets1. H-structure and X structure
2. triple-wall
3. 100% Lexan raw material

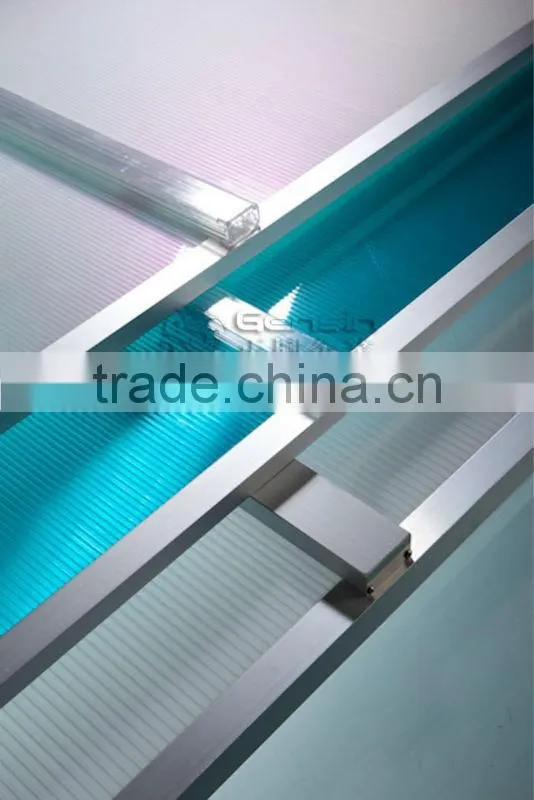

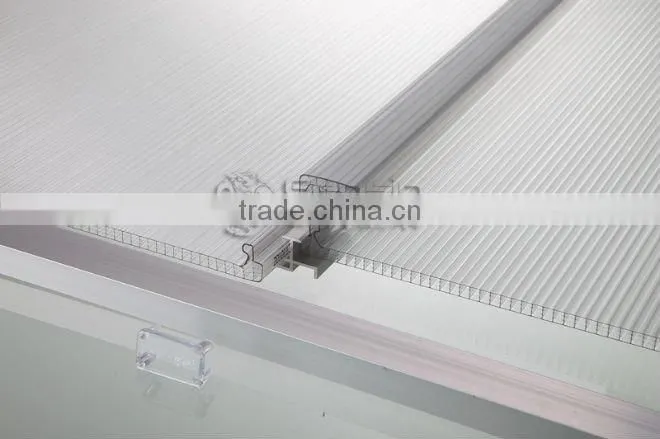

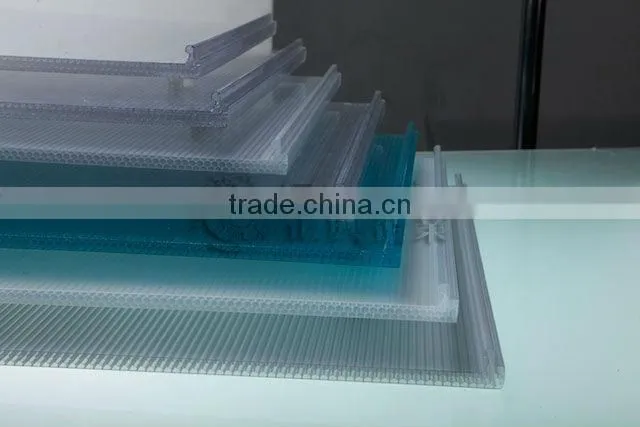

U Locking System Polycarbonate Multi-wall Sheets
Specification for PC triple-wall sheet(H structure& D structure):
1)Standard width:2100mm
2)Length:no limit
3)Thickness:6mm--30mm
4)Colors:clear,blue,green,brown,bronze,opal,red,etc.
Technical Features:
1)Light weight:8mm-1.9kg/sqm,10mm-2.2kg/sqm,12mm2.6kg/sqm,14mm-3.1kg/sqm 16mm-3.3kg/sqm
2)High impact resistance
3)Good light transmission:60%-77% for clear color different thickness
4)Good heat insulation(K value):8mm-2.8W/m2K 10mm2.7W/m2K
12mm-2.6W/m2K 14mm-2.5W/m2K, 16mm-2.3W/m2K
5)UV layer thickness: 50μm ,can filter about 99% ultraviolet radiation in sunshine
6)The minimum bend radii for different thicknesswith standard size(2100mm*6000mm)
10mm--1750mm, 12mm--2100mm,14mm--2450mm,16mm--2800mm
7)Simply processed and installed
U Locking System Polycarbonate Multi-wall Sheets
Applications:
1)Building/House skylights
2)Work shop/storehouse skylight
3)Roofing
4)Carports
5)Indoor partition
6)Cover of greenhouse
