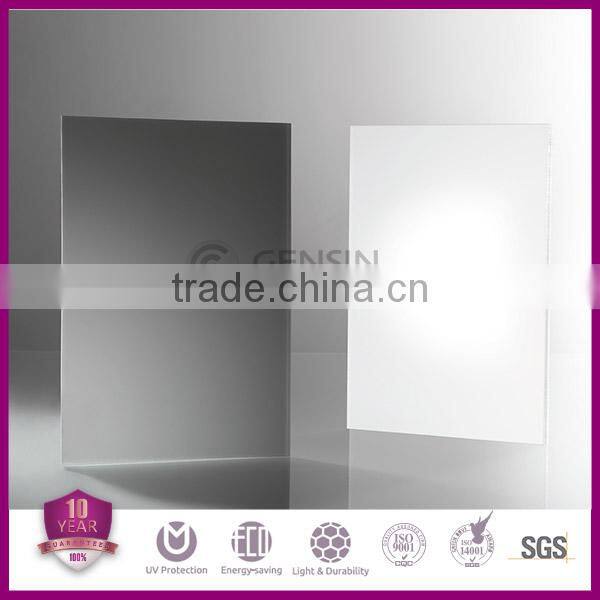

Milky White Smooth Light Diffuse Polycarbonate sheets,PC Sheet,Polycarbonate Lences For LED Light Cover
| Thickness | 1-6mm |
| Maximum width | 2100mm |
| Length | any dimension |
| Specific gravity | 1200kg/cbm |
| Colors | opal, red, yellow, blue, etc |
| Light transmission | 38%-80% |
| Haze | ≥90% |
| Illuminance | ≥3500lux |
| Uniformity | ≥90% |
| Color temperature | 6500K |
| Application | advertising light panel, shop sigh, outdoor billboard, LCD optical panels |
| Production Standards Features | ||
| Thicknss(mm) | Width(mm) | Length(mm) |
| 0.8-1.5 | Maximum 1220 | Unlimited |
| 1.5-3.0 | Maximum 2100 | |
| 3.0-6.0 | Maximum 2450 | |
| Material | 100% Virgin Sabic Lexan/Bayer Makrolon PC Resin | |
| UV Coating | 50micron meters UV Resistance Coating On 1 Side or 2 Sides | |
| Color | Opal,Green,Blue,Bronze,Red,Yellow,Lake-blue,Sky-blue or Customized Colors | |
| Warranty | 10 Years Guarantee | |
| Technical Data Of PC Sheet | |||
| No. | Characteristics | Unit | Data |
| 1 | Impact Strengt | J/m | 850 |
| 2 | Light Transmission | % | According to the Thickness and Color |
| 3 | Specific Gravity | g/m³ | 1.2 |
| 4 | Coefficient of Thermal Expansion | mm/m℃ | 0.065 |
| 5 | Service Temperature | ℃ | -40 to 120 |
| 6 | Heat Conductivity | W/m²℃ | 2.3 to 3.9 |
| 7 | Tensile Strength | N/mm² | >60 |
| 8 | Flexural Strength | N/mm² | 100 |
| 9 | Modulus Of Elasticity | MPa | 2400 |
| 10 | Tensile Stress At Break | MPa | >65 |
| 12 | Elongation At Break | % | 100 |
| 13 | Specific Heat | KJ/kg K | 1.17 |
| 14 | Heat Deflection Temperature | ℃ | 140 |
|
Advantage | |
1 |
Light weight |
2 |
Excellent impact resistance |
3 |
Good light transmission |
4 |
Good weather resistant and UV protection |
5 |
Sound and heat insulation |
6 |
Simple process and installation |
7 |
Grade B1 fire resistance |
8 |
An engineering plastic of excellent integration capability |
Product Show

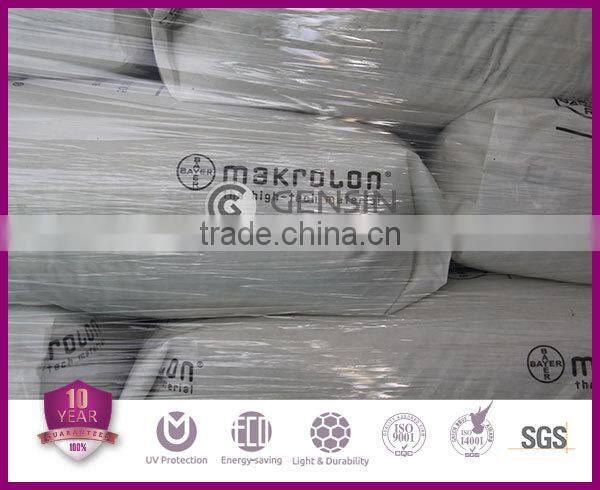

Gensin Polycarbonate Sheets are made from 100% virgin Sabic Lexan or Bayer Makrolon Raw PC Resin

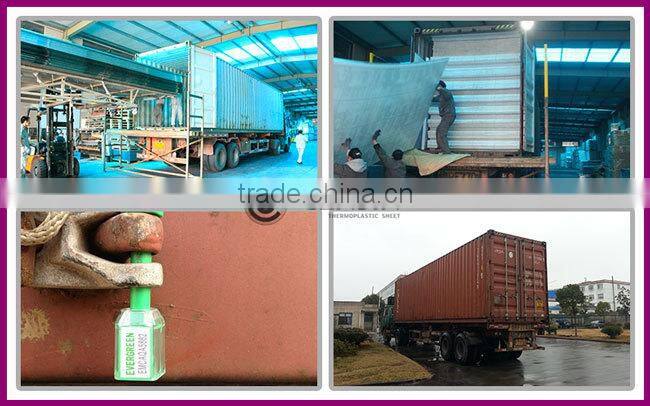

For solid sheets, PE film on both sides, and packed on wooden pallets.
Every year we will take an active part in many related building materials exhibition and advertising exhibition
1,HOW TO CHOOSE THE SUITABLE SHEETS FOR US?
If you are not sure that which kind of sheet that you will use,you can contact us,and tell us your application,our sales will introduce the suitable sheets for you,and we will give you more information about the sheets
2,WHAT'S THE PRICE OF THE SHEETS?
Please contact us,and inform your sheets' thickness,size,quantity and other requirements,our sales will quote our best price to you.Also you can send us your project detail drawing,we will check and quote to you.
3,THERE IS NO SHEETS AND PROFILES THAT I WANT?
If that,you can send us your special sheets or profiles drawing with details,we can quote to you.
