12/16/18mm 6-wall D Structure Multiwall Polycarbonate Sheet/Plastic Roof
Gensin 6-wall D structure Polycarbonate sheet is produced from 100% Sabic or Bayer virgin material, with one side or two sides UV protection, 10 years guarantee. Thickness from 12mm to 18mm.
Advantages of multi-wall polycarbonate sheet:
- light weight
- high impact strengh
- high light transmission
- good weather resistance and UV protection
- good heat insulation
- simply processed and installed

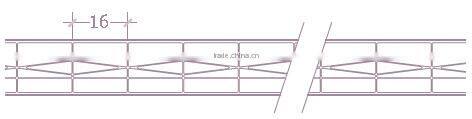

Structure:
Datasheet:
| Item |
Thickness (mm) |
Weight (Kg/m²) |
Rib(mm) Distance |
U-value (W/m²·k) |
Width (mm) |
Light Transmittance of clear color (%) |
MOQ |
|
6-Wall D Structure polycarbonate sheet |
12 |
2.2 |
16 |
2.1 |
2100 |
60 |
1400sqm
|
| 16 | 2.9 | 16 | 1.8 | 2100 |
59 | ||
| 18 | 3.0 | 16 | 1.7 | 2100 |
58 |
Application of Polycarbonate Sheet
- Architectural Roofing
- High speed railway station, Airport glaze lighting
- Natatorium Covering
- Roofing and Glazing of Industry
- Green house/House skylights
- Walkways/Carports
- Do it by yourself
Technical Features of polycarbonate sheet :
1) Impact strength: 850J/m
2) Light transmission: 88%
3) Specific gravity: 1.2 g/cm3
4) Coefficient of thermal expansion: 0.065
5) Temperature: -40 to 120oC
6) Heat conductivity: 2.3-3.9 W/m2
7) Tensile strength: >602
8) Flexural strength: 1002
9) Modulus of elasticity: 2,400Mpa
10) Tensile street at break: >65Mpa
11) Elongation at break: >100%
12) Specific heat: 1.16J/kg.K
13) Heat deflection temperature: 140oC
14) Soundproofing: (6mm solid): 20db
