Specifications
Polycarbonate Honeycomb1.100% virgin Sabic Lexan material,
2.UV Coating
3.10 Years Warranty
4.Honeycomb Structure
Lake-blue Colored Glass Sheets Polycarbonate Honeycomb Hollow Roofing

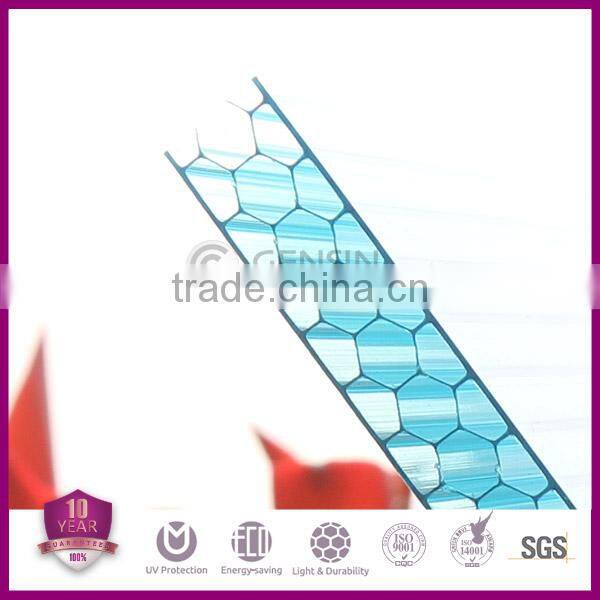

Structure Display
4-wall Honeycomb Structure Hollow Sheet Data | ||||||||||||
|
Structure |
Item No. |
Thickness (mm) |
Weight (kg/sqm) |
Stand Width(mm) |
Rib Distance (mm) |
U-value (w/sqm*k) |
UV Side |
LT(%) Clear |
LT (%) Bronze |
LT(%) Opal White |
LT(%) Opal Green |
LT(%)
Opal Blue
|
|
4-wall Honeycomb Rectangle Structure |
LGC4HS8T2000 | 8 |
2.0 |
2100 | 5.5 |
2.1 |
1/2 |
62 |
||||
LGC4HS10T2100 |
10 |
2.1 |
2100 |
5.5 |
1.9 |
1/2 |
60 |
|||||
LGC4HS12T2300 |
12 |
2.3 |
2100 |
5.5 |
1.7 |
1/2 |
58 |
|||||
| Technical Data Of PC Sheet | |||
| No. | Characteristics | Unit | Data |
| 1 | Impact Strengt | J/m | 850 |
| 2 | Light Transmission | % | According to the Thickness and Color |
| 3 | Specific Gravity | g/m³ | 1.2 |
| 4 | Coefficient of Thermal Expansion | mm/m℃ | 0.065 |
| 5 | Service Temperature | ℃ | -40 to 120 |
| 6 | Heat Conductivity | W/m²℃ | 2.3 to 3.9 |
| 7 | Tensile Strength | N/mm² | >60 |
| 8 | Flexural Strength | N/mm² | 100 |
| 9 | Modulus Of Elasticity | MPa | 2400 |
| 10 | Tensile Stress At Break | MPa | >65 |
| 12 | Elongation At Break | % | 100 |
| 13 | Specific Heat | KJ/kg K | 1.17 |
| 14 | Heat Deflection Temperature | ℃ | 140 |
|
Advantage | |
1 |
Light weight |
2 |
Excellent impact resistance |
3 |
Good light transmission |
4 |
Good weather resistant and UV protection |
5 |
Sound and heat insulation |
6 |
Simple process and installation |
7 |
Grade B1 fire resistance |
8 |
An engineering plastic of excellent integration capability |
Product Show
Polycarbonate sheet has high light transmittance, good impact resistance, good thermal insulation, easy installation, and widely used in construction and decoration.
HAINING GENSIN Plastic sheet co., ltd is the largest manufature of polycabronate sheets in east china, establshed since 2003, located in haining(between Hangzhou and Shanghai ).
For solid sheets, PE film on both sides, and packed on wooden pallets.
Every year we will take an active part in many related building materials exhibition and advertising exhibition
1,HOW TO CHOOSE THE SUITABLE SHEETS FOR US?
If you are not sure that which kind of sheet that you will use,you can contact us,and tell us your application,our sales will introduce the suitable sheets for you,and we will give you more information about the sheets
2,WHAT'S THE PRICE OF THE SHEETS?
Please contact us,and inform your sheets' thickness,size,quantity and other requirements,our sales will quote our best price to you.Also you can send us your project detail drawing,we will check and quote to you.
3,THERE IS NO SHEETS AND PROFILES THAT I WANT?
If that,you can send us your special sheets or profiles drawing with details,we can quote to you.
