Gensin Lixin Sabic multiwall polycarbonate roofing sheets

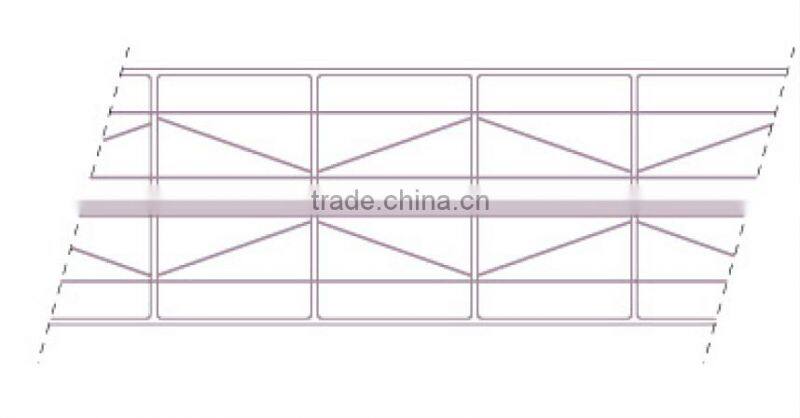

Gensin Lixin Sabic multiwall polycarbonate roofing sheets are reinforced pressure sheets, in general based on the rectangular sheet inclined to increase the Oblique support so as to enhance the overall capacity. The sheet can support greater purlin spacing, the maximum reduction of profiles, allowing the designer can have more space to play in the selection. At the same time, the diagonal support increased lateral stability of the multi-wall sheet has played a positive role in making the overall structure of sheet is more reasonable. Multi-layer structure formed cavity to increase the thermal insulation performance, compared to the same thickness of ordinary sheet with a lower U-value.
Haining Gensin Plastic Sheet Co.,Ltd is founded in 2003, one of the largest manufacturer of polycarbonate sheet.
There are 5 hollow sheets production lines, 2 solid sheets production lines, 1 Union solid sheet production line and 4 PC profile production lines. More than 100 production workers.
All our products are produced by 100% virgin Sabic/Bayer/Lexan material.
Polycarbonate sheet is an economic and environmetal building material.
|
Wall |
Thickness (mm) |
Weight (kg/sqm) |
Rib Distance (mm) |
U-value (w/sqm*k) |
UV Side |
LT(%) Clear |
LT(%) Opal White |
|
8-wall diamond Structure |
25 |
3.4 |
20 |
1.4 |
One side |
48 |
15 |
32 |
4.5 |
1.3 |
46 |
15 |
|||
35 |
4.8 |
1.3 |
44 |
15 |
|||
40 |
5.4 |
1.1 |
42 |
15 |
Property |
Method |
Condition |
Units |
Value |
Density |
|
D-1505 |
g/cm3 |
1.2 |
Heat deflection temperature |
GB/T1634 |
D-648 |
℃ |
135 |
Combustion Performance |
GB/T8624 |
UL94 |
Grade |
B1/V2 |
Service Temperature-Long Term |
|
|
℃ |
-50 to±100 |
Coefficient of Liner Thermal Expansion |
GB/T1036 |
D-696 |
Mm/m℃ |
0.065 |
Tensile Strength at yield |
GB/T1040 |
D-638 |
Mpa |
62 |
Elongation at Break |
GB/T1040 |
D-639 |
% |
>80 |
Impact Falling Dart |
GB/T14153A |
ISO 6603/1 |
times |
1/10 |
Practical Thermal Expansion/Contraction |
GB/T2680 |
|
% |
0 |
For hollow sheets, PE film on both sides,and the two ends sealed with dustproof sealing tape.
Polycarbonate sheet has high light transmittance, good impact resistance, good thermal insulation, easy installation, and widely used in construction and decoration.
Every year we will take an active part in many related building materials exhibition and advertising exhibition.
1. We only produce Grade A polycarbonate sheets
2. We have 12 production lines
3. Gensin has a great sales team, feel free to contact us!!!
