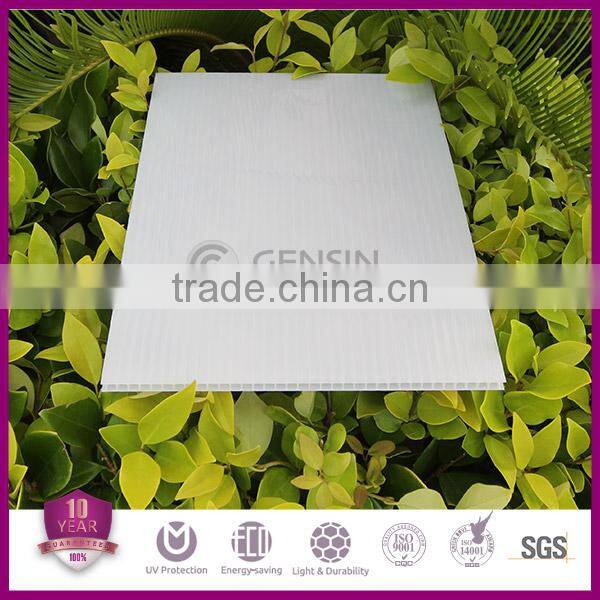

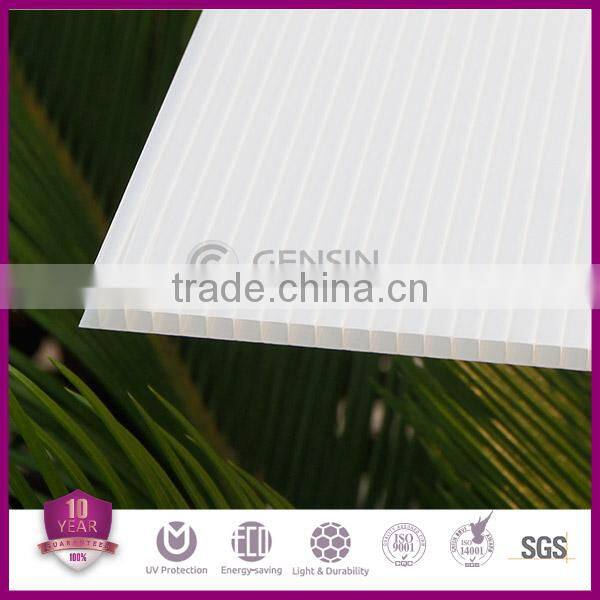

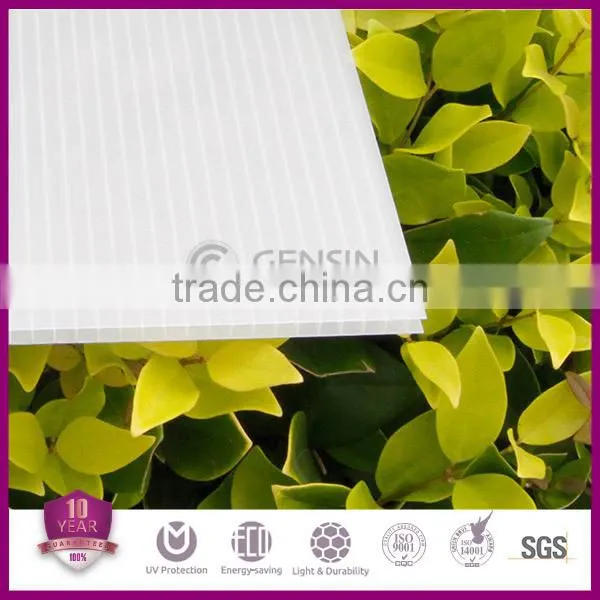

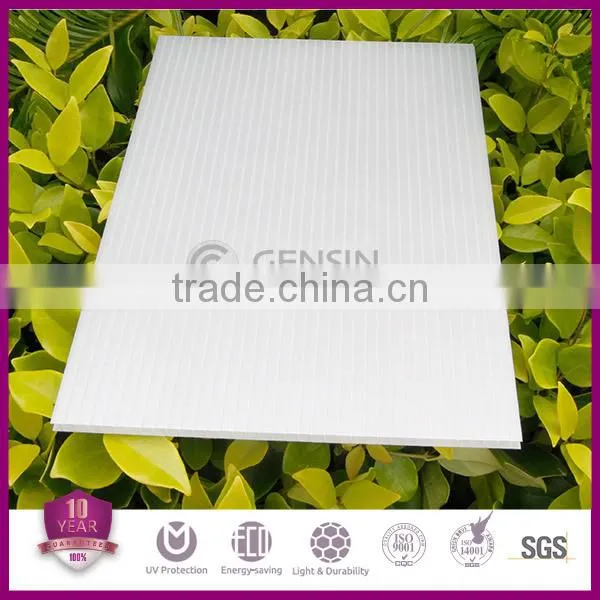

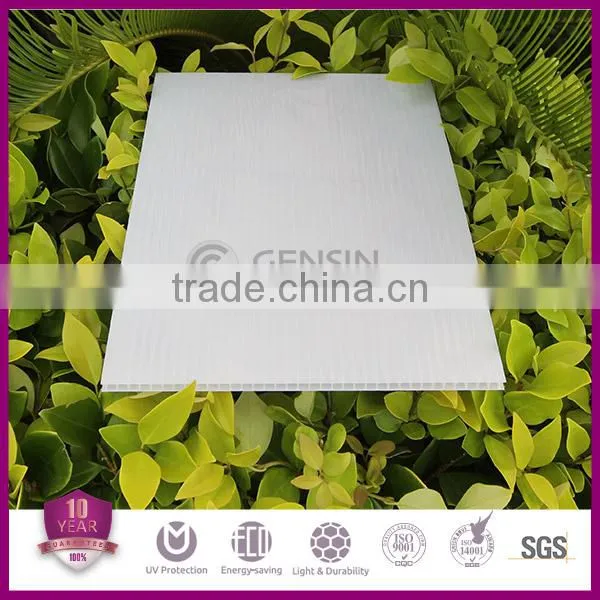

Solar Control Infrared Reflective Pearlescent White Polycarbonate Sheet
Gensin polycarbonate hollow sheet provides a construction application option other than solid polycarbonate sheet when lighter weight is required, ensuring superior thermal insulation and excellent impact strength. As a general type of hollow sheet, Gensin twin-wall polycarbonate sheet is widely used for roofing, glazing, skylights, carports and greenhouses.
With advanced UV coextrusion technology, Gensin supplies 10 years warranty for all polycarbonate sheets.
Gensin twin-wall polycarbonate sheet has 4-10mm thickness options.

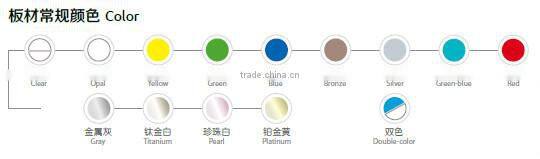

Special option: anti-drop, solar control (metallic colors, pearl colors, etc), two-tone, matte colors.
Specail functional polycarbonate sheet for better heat insulation is to meet different requirements. Pearlescent white color reduces heat by reflect infrared.
Gensin Twinwall polycarbonate sheet:
| Basic Information | |
| Material | 100% Sabic/Bayer virgin material |
| UV stability | 50micron; one side or two sides |
| Guarantee | 10 years |
| Package | PE film on both sides, anti-dust tape seals the two ends |
| Delivery time | 7-10 working days against your deposit |
| Port of loading | Shanghai/ Ningbo |
| Payment | 30% T/T in advance, 70% against the copy of BL; L/C |
Polycarbonate Sheet Features
- light weight
- very high impact strength
- Good light transmission
- good weather resistance and UV protection
- high heat insulation
- Simply processed and installed
- UV protection layer: 50μm
- soften temperature : 148°C
- continuous use temperature :-40 ~120°C'
- elastle stress :2400MPa(1mm/rain.ISO 527)
- tensile stress :63MPa(at yeild 50mm/min.ISO 527)
- tensile strain:6%(at yeild 50mm/min.ISO 527)
- nominal tensile strain: >50%(at break 50mm/min.ISO 527)
Specification of Twinwall Polycarbonate sheet:
Item | Thickness(mm) | Rib distance(mm) | Standard Width (mm) | Length (mm) | Weight (Kg/sqm) | MOQ (sqm) | U value (W/m2K) |
Twin-wall Polycarbonate Sheet
| 4 |
5.5
| 1220/2100 |
5800/ 6000/ 11800
| 0.9 |
3300 | 3.8 |
5 | 1220/2100 | 1.1 | 3.7 | ||||
6 | 1220/2100 | 1.3 | 3.5 | ||||
8 |
10.5 | 2100 | 1.5 |
2000 | 3.3 | ||
10 | 2100 | 1.7 | 2.9 |
Application of polycarbonate sheet:
1) Building skylights
2) Indoor partition, folding screen
3) Furniture
4) Bathroom
5) Natatorium coverings
Gensin have two production lines for polycarbonate hollow sheet.

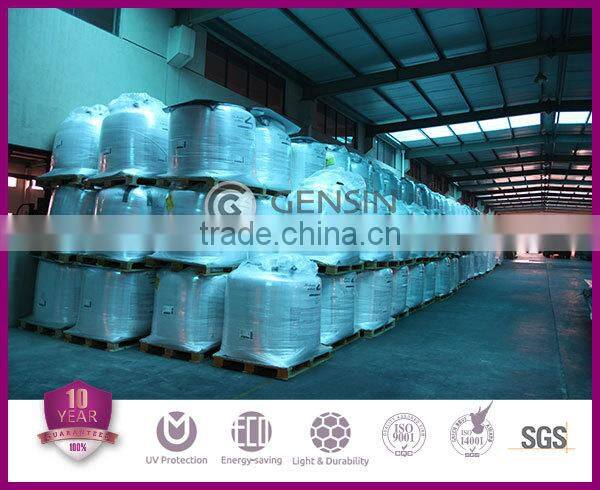

Raw materials: Sabic and Bayer polycarbonate resins in stock.
PE film on polycarbonate sheet both sides, anti-dust tape seals the two ends.
