Help CenterRain Drop Pattern Polycarbonate Embossed Sheet
Related Products
-
Polycarbonate Embossed Sheet (GENSIN)US$ 3 - 4MOQ: 3 Tons -
High Impact Embossing Solid Polycarbonate SheetUS$ 3.2 - 4MOQ: 3 Tons
-
PC Embossed Sheet, Extruded Polycarbonate Sheet, Solid Polycarbonate SheetUS$ 3.2 - 4MOQ: 1000 Square Meters
-
PC Embossed Sheet(GENSIN)NegotiableMOQ: 1000 Square Meters
-
Rain Drop Embossed Polycarbonate Sheet(GENSIN)US$ 3 - 4MOQ: 1000 Square Meters
Specifications
rain drop polycarbonate embossed sheet1. 100% Lexan/Bayer virgin material
2. UV & 10yrs warranty
3. ISO 9001,SGS
4.1.8-10mm

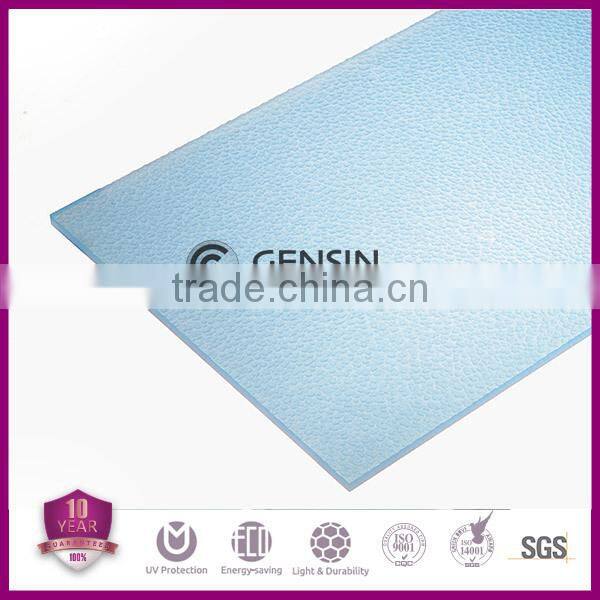

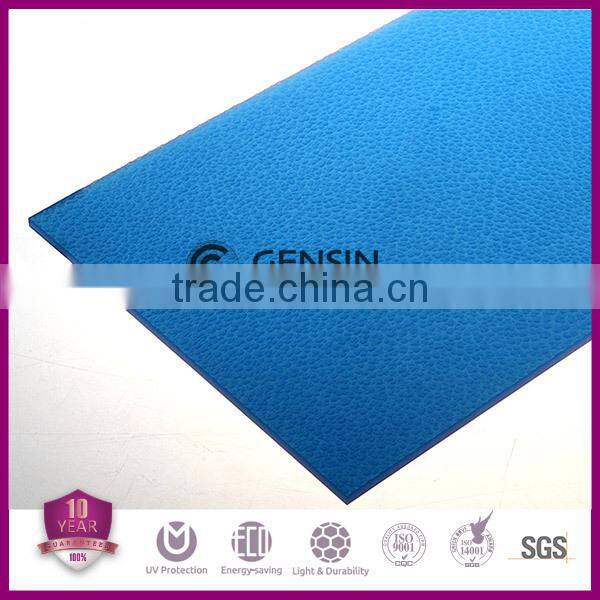

Rain drop pattern polycarbonate embossed sheet
Specifications:
1) Thickness: 1.8mm--10mm
2) Maximum width: 2,100mm
3) Length: any dimension
4) Specific gravity: 1.2g/cm3
5) Colors: clear, blue, green, opal, brown,bronze,etc.
6) Pattern: drip-drop pattern
Thickness(mm) |
Standard size (mm) |
Min bend radius (mm) |
Specific gravity (g/cm3) |
Standard colors |
2 |
1200-2100 |
300 |
1.2 |
Clear, green, blue, brown, smoky gray |
2.5 |
375 |
|||
3 |
450 |
|||
4 |
600 |
|||
5 |
750 |
|||
6 |
900 |
|||
8 |
1200 |
|||
10 |
1500 |
Technical features:
1) Impact strength: 850J/m.That means the impact resistance of polycarbonate solid sheet is about 200 times of comman glass ,20 times of acrylic sheets.
2)Light weight:About 1/2 times of glass .
2)Light transmission(clear color)80%--90% for different thickness
2) Light transmission: 80%-90% for different thickness of clear color
3) Specific gravity: 1.2 g/cm
4) Coefficient of thermal expansion: 0.065 mm/moC
5) Service temperature range: -40oC to 120oC
6) Heat conductivity: 2.3-3.9 W/m2 oC
7) Tensile strength: >60N/mm2
8) Flexural strength: 100N/mm2
9) Modulus of elasticity: 2,400mPa
10) Tensile street at break: >65mPa
11) Elongation at break: >100%
12) Specific heat: 1.16J/kgk
13) Heat deflection temperature: 140oC
14) Soundproof index: 4mmthickness--27dB, 5mm--28dB, 6mm--29dB, 8mm--31dB, 10mm-32dB 12mm--34dB
Applications: Bathroom, upholster, lighting, inddor partion, folding screen, ceiling, etc.
PE protective film on the smooth side of polycarbonate embossed sheet, packed on pallets or in rolls
Brief introduction of Haining Gensin Plastic Sheet Co., Ltd:
- professional manufacturer of polycarbonate sheet, founded in 2003
- total buliding size: 10,000sqm
- staff number: about 100
- GENSIN ONLY PROVIDE THE GRADE A POLYCABRONATE SHEET !
- WE HAVE 12 PRODUCTION LINES FOR DIFFERENT POLYCARBONATE SHEETS, GENSIN OWNS ONE UNION MACHINE.
- GENSIN HAS A GREAT SALES TEAM, FEEL FREE TO CONTACT US !
