Specifications
Embossed polycarbonate solid sheet1.100% virgin material
2. 2/3/4/5/6mm
2.UV and 10years guarantee
3.ISO 9001, ROHS, SGS
polycarbonate embossed solid sheet

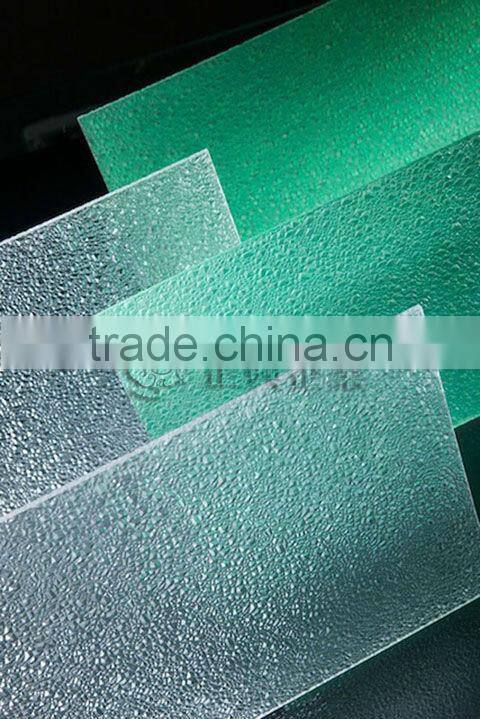

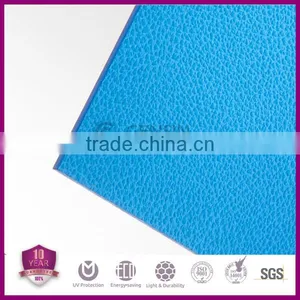

Gensin polycarbonate embossed sheet has high impact strength, can provide drip-drop pattern, barleycorn pattern, diamond pattern and litchi pattern.
specifications:
1) Thickness: 1.5mm--10mm
2) Maximum width: 2,100mm
3) Length: any dimension
4) Specific gravity: 1.2g/cm3
5) Colors: clear, blue, green, opal, brown,bronze,etc.
6) Pattern: drip-drop pattern, barleycorn pattern, diamond pattern and litchi pattern.
7) Package: PE protective film on the smooth side of polycarbonate sheet, pallets
Thickness(mm) |
Standard size (mm) |
Min bend radius (mm) |
Specific gravity (g/cm3) |
Standard colors |
2 |
1200-2100 |
300 |
1.2 |
Clear, green, blue, brown, smoky gray |
2.5 |
375 |
|||
3 |
450 |
|||
4 |
600 |
|||
5 |
750 |
|||
6 |
900 |
|||
8 |
1200 |
|||
10 |
1500 |
|||
12 |
1800 |
Technical Data:
1) Impact strength: 850J/m.That means the impact resistance of polycarbonate solid sheet is about 200 times of comman glass ,20 times of acrylic sheets.
2)Light weight:About 1/2 times of glass .
2)Light transmission(clear color)80%--90% for different thickness
2) Light transmission: 80%-90% for different thickness of clear color
3) Specific gravity: 1.2 g/cm
4) Coefficient of thermal expansion: 0.065 mm/moC
5) Service temperature range: -40oC to 120oC
6) Heat conductivity: 2.3-3.9 W/m2 oC
7) Tensile strength: >60N/mm2
8) Flexural strength: 100N/mm2
9) Modulus of elasticity: 2,400mPa
10) Tensile street at break: >65mPa
11) Elongation at break: >100%
12) Specific heat: 1.16J/kgk
13) Heat deflection temperature: 140oC
14) Soundproof index: 4mmthickness--27dB, 5mm--28dB, 6mm--29dB, 8mm--31dB, 10mm-32dB 12mm--34dB
Applications: Bathroom, upholster, lighting, inddor partion, folding screen, ceiling, etc.
