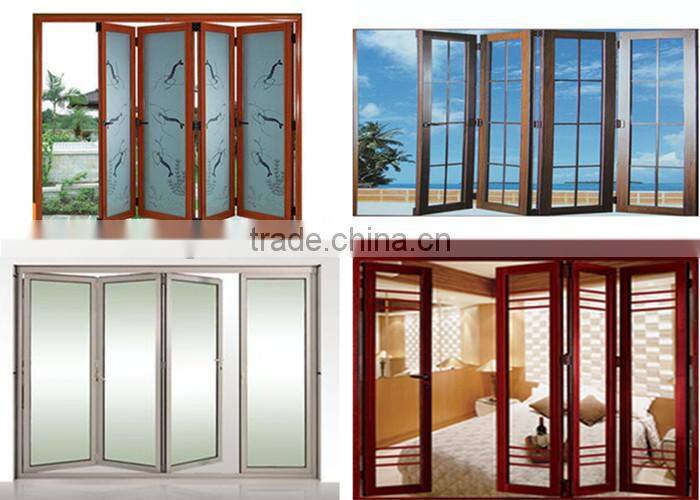

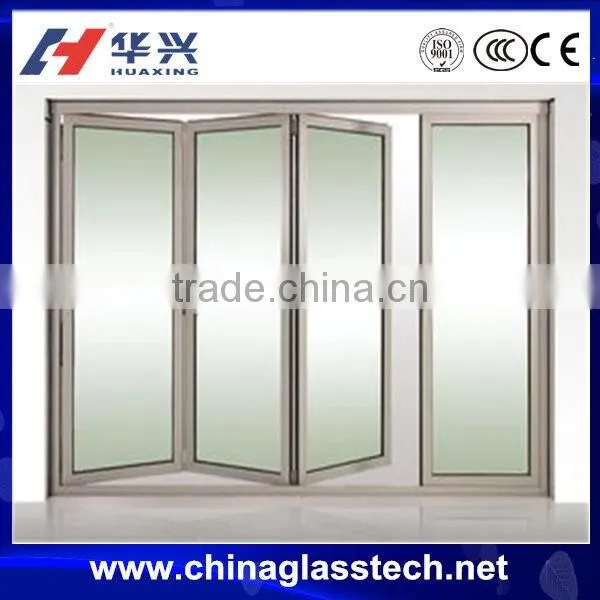

Aluminum framing folding insulating glass out door

Type Option

Exterior doors/interior door/balcony door/emergency door/weather door

Frame color

Silver, bronze, black, gold, blue, grey, champagne, bright

Size

1000×2100mm,1200×2100mm,1500×2100mm or as you request

Frame Material

Aluminum profile with 1.4mm thickness

Aluminum Option

Normal aluminum profile, Thermal-Break aluminum profile

Glass Option

Clear glass, Laminated glass, Tinted glass, Low-E glass, Frosted glass, tempered glass

Single glass: 4mm, 5mm, 6mm, 8mm, 10mm, 12mm and etc

Double glass: 5+9A+5mm, 5+12A+5mm, 6+12A+6mm and etc

Triple glass: 6+9A+6+9A+6mm and etc

Hardware

China famous brand / German brand

sealant

EPDM, Silicone Sealant

Fly  Screen

Metal and Nylon material for option

Opening Method

Inwards or Outwards, right or left hand opening as your requested

Surface Treatment

Mill finish, anodizing, powder coating, electrophoresis, wooden transfer or fluorocarbon coating, polishing, sand blasting

Lifetime

Above 50years

Scope of Application

Apply to commercial houses, hotels, villas, office buildings, prefabricated houses and etc.

Temper

T5 or T6

Quality standard

China National Standard GB/T 5237 -2008 (advanced class)

Certification

ISO9001,CE

Items

 Performance

1:sound insulation :

RW>30DB

2:wind pressure Resistance:

Third class(GB/106)

3:Air Permeation Resistance:

Third class(GB/108)

4:Heat insulation Resistance:

Third:2.8/(m2k),2.5W/(m2k),or below2.0w/(m2k)

5:water penetration rate

350PA
