Exterior used thermal-break aluminum three panel sliding glass door

Specifications

1.PA66 insulation bridge
2.Sound insulation 30-40db
3.57 years professional manufacturer
4.CE/ISO/CCC certification

  Exterior used thermal-break aluminum three panel sliding glass door

1. Brief Introduction

Three panel sliding glass door is a special kind of door leaf. Firstly, it is not enough to say a solid door because of its thickness,and it also does not belong to allotypic door. In fact, It is a special kind of door leaf. Glass door is usually made of 12mm tempered glass, which is both strong and safe.

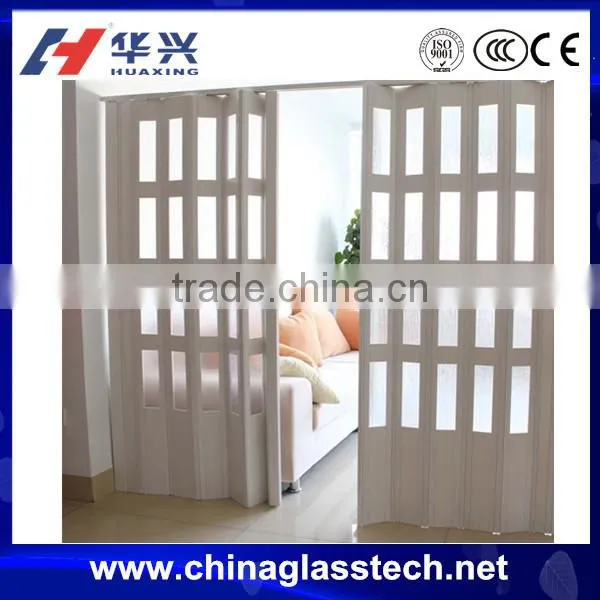

2. Picture of three panel sliding glass door



3. Design Features

1)  Production is completely in accordance with the ISO9001 quality management system and environmental system and security system

2)  Provides insulation from draughts, rain & noise with a self-draining aluminum tread

3)  Superior energy efficiency provided by sealing around the door jamb & tread

4)  Various glass types available for doors and windows

5)  Sill seal fitted as standard for the doors and windows



4. Techinical Data of  three panel sliding glass door

Type Option	Exterior doors/interior door/balcony door/emergency door/weather door
Frame color	Silver, bronze, black, gold, blue, grey, champagne, bright
Size	1000×2100mm,1200×2100mm,1500×2100mm or as you request
Frame Material	Aluminum profile with 1.4mm thickness
Aluminum Option	Normal aluminum profile, Thermal-Break aluminum profile
Glass Option	Clear glass, Laminated glass, Tinted glass, Low-E glass, Frosted glass, tempered glass
	Single glass: 4mm, 5mm, 6mm, 8mm, 10mm, 12mm and etc
	Double glass: 5+9A+5mm, 5+12A+5mm, 6+12A+6mm and etc
	Triple glass: 6+9A+6+9A+6mm and etc
Hardware	China famous brand / German brand
sealant	EPDM, Silicone Sealant
Fly  Screen	Metal and Nylon material for option
Opening Method	Inwards or Outwards, right or left hand opening as your requested
Surface Treatment	Mill finish, anodizing, powder coating, electrophoresis, wooden transfer or fluorocarbon coating, polishing, sand blasting
Lifetime	Above 50years
Scope of Application	Apply to commercial houses, hotels, villas, office buildings, prefabricated houses and etc.
Temper	T5 or T6
Quality standard	China National Standard GB/T 5237 -2008 (advanced class)
Certification	ISO9001,CE



5. Packing picture of  three panel sliding glass door

Seaworthy and fumigated wooden cases/end-caps with powder or paper interlayer which assure your goods intact till to your warehouse.





6. Photo of Factory

China Glass Tech Co. Ltd is established in 1957 and covering more than 60,000 square meter. Mainly engaged in glass machinery, door&windows curtain walls, glass products.





7. Customer Visiting

Our product has been exported to 20 countries and regions all over the world such as UK, America, German, Saudi Arabia, and Iraq etc. HUAXING Brand has good reputation between our customers. It has been become a worldwide brand.



8. Exhibition

We attend professional international exhibition not less than ten times each year. Looking forward to meet you on our show!
