Wall Mounted Electric Boiler for Radiator/ Floor Heating- CE Approve, Manufacturer

This Electric heating boiler is a domestic heating device used in cold winter.

This item DBL-150 with 4 time setting, clear & readable LCD screen, and can be connect to Room Thermostat.

1) The boilers only Heating function

2) Two Heating mode

Floor heating: 30~55°C;

Radiator: 30~80°C,

3) Anti-freeze Protection.

When the room temperature drop to below 7°C the circulating water pump operate and heating element be allowed to warm the water up to 30°C then stop working.

4) Anti-dry burn Protection.

When the sensor feel there isn't enough water in tank, the Main Circuit Board cut down the electric power and alarm at once.

5) 3.0bar Overpressure Protection.

When the Heating system pressure reach to 3.0bar the safety valve will be opened to release the high pressure automatically.

6) 92'C Overheat Protection.

When the inner hot water over 92'C the boiler will be cut down the electric power instantly and alarm at once.

7) Waterproof class IPX1

8) Water tank made of food grade 304 stainless steel shaped through a unique welding craft that make the water tank can bear 4.0MPa pressure.

9)  Provide Electric power 220V/380V- 4.5kw, 6.0kw, 8.0kw and 380V-12.0kw for available.

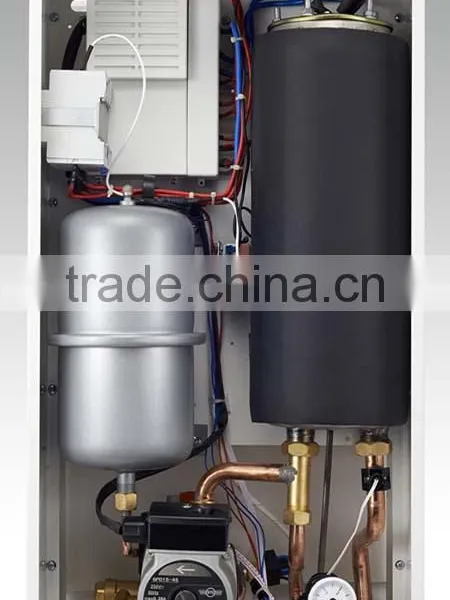

The inner structure of Electric heating boiler

Bottom Board

 CE certification
