Electric boiler for radiator/ floor heating

This Electric boiler not only is a Home heating device for cold winnter.

It also can connect to external Indirect heating hot water tank(DHW).

380V 3-phase voltage, 12kw 15kw 18kw 20kw 24kw for optional electric power.

Item DBL-160 own 24hours time setting, clear & readable LCD screen, room thermostat connector and hot water temperature connector are on the boiler bottom.

1) Two heating mode to select

     Floor heating 30~55°C

     Radiatior 30~80 °C

2) Anti-freeze protection

    When the room temperature drop to below 7°C the circulating water pump running and heating element warm the water up to 30°C then boiler stop working.

3) Anti-dry burn protection

     When the temperature sensor feel there isnt any water in water tank, the Main board will cut down the power at once.

4) Over heating protection

     When the temperature sensor find the water over 90°C, the RCD will be trip, cut down the power at once.

5) Pressure release Safety valve 3.0bar

6) Water proof class IPX1

7) Heating Hot water prior

      When the boiler connect with both Radiator and Indirect hot water Tank at the same time, the boiler will be make sure prior to heating hot water.

8) Heating tank made of food grade 304 stainless steel and shaped through a professional welding craft. That can bear 4.0Mpa pressure.

We also can provide customers the 220V voltage!!!

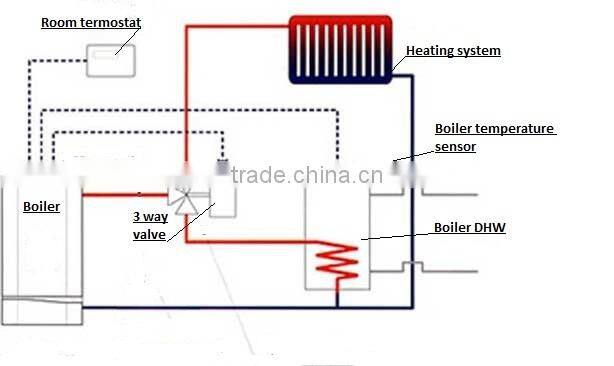

Boiler can connect to both Radiator/Floor heating and Indirect hot water tank moreover hot water is prior.

When at summer consumer turn off the heating function, DBL-160 still can continue to heating hot water tank and detect hot water temperature as long as consumer not turn off the boiler.

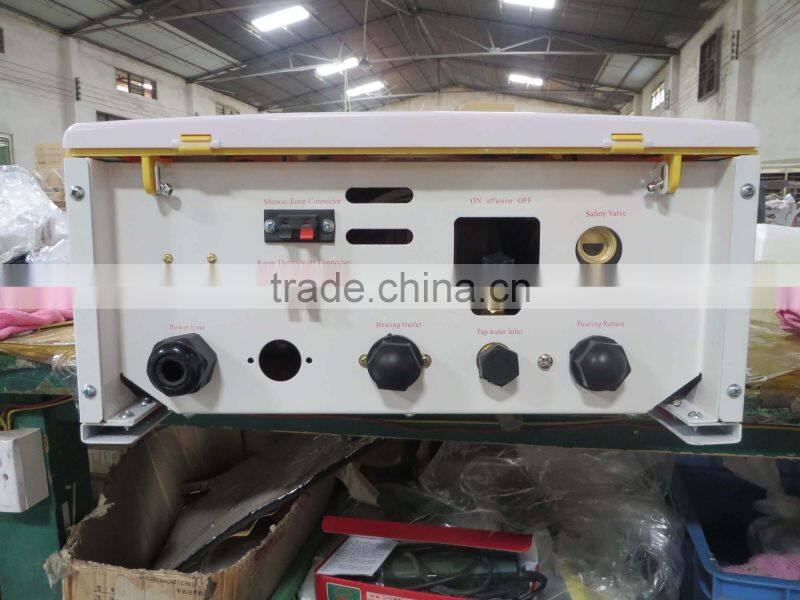

DBL-160 appearance
