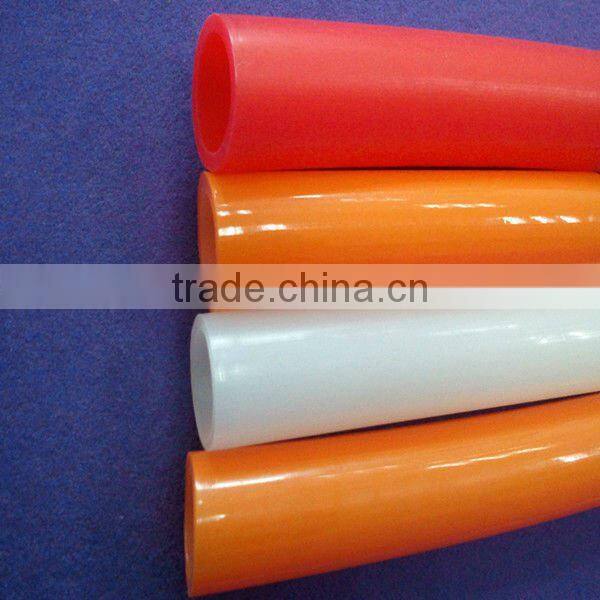

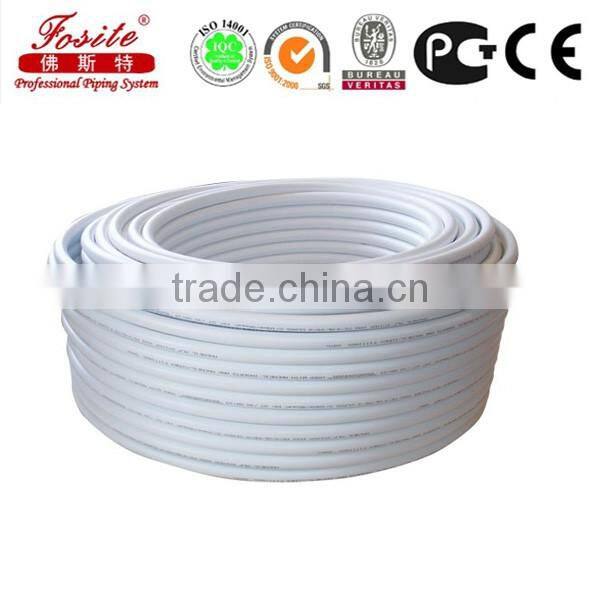

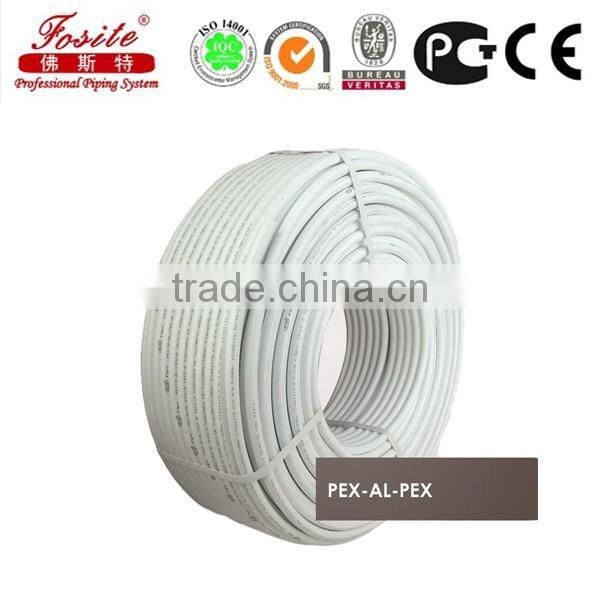

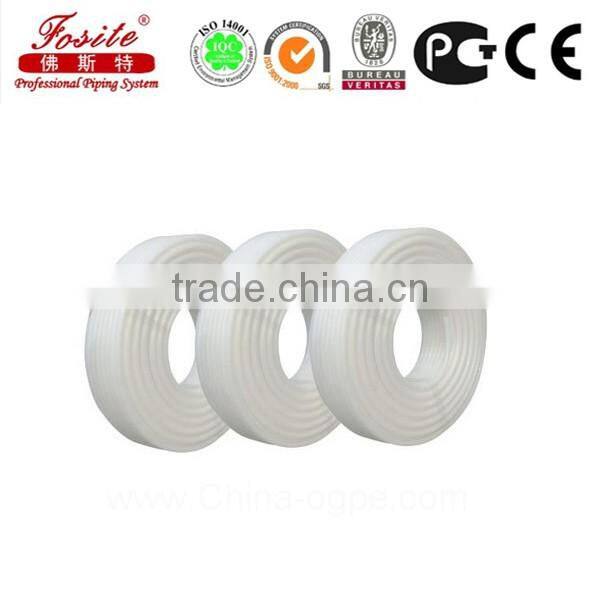

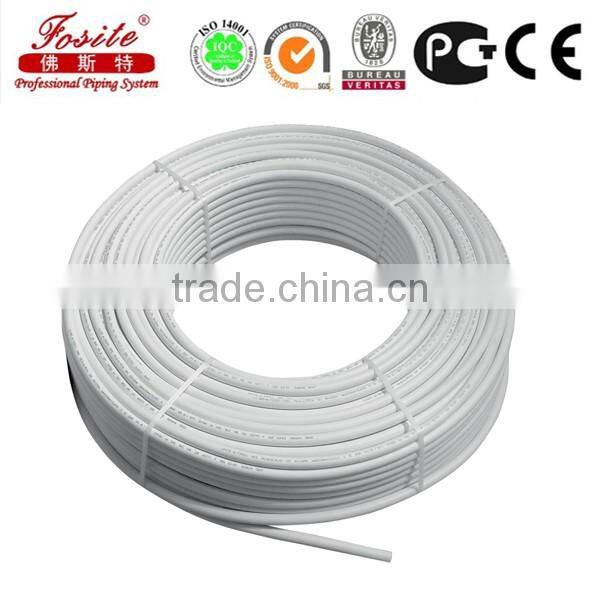

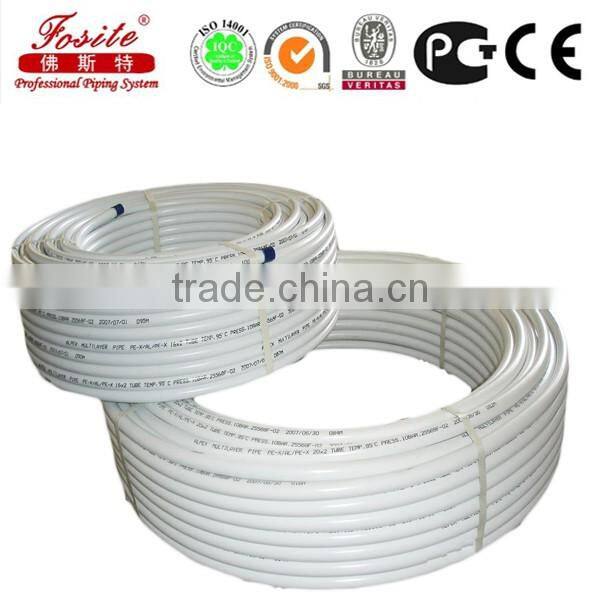

Water Heating Pipe/PE-RT Underfloor Heating Pipe
1. Material: 100% imported SK DX800 from Korea
2. Size: From 16mm- to 32mm
3. Color: whiite,red or as customer request
4. ISO can provide the quality.
5. Guaranteed service life of 50 years
PE-RT Pipe for floor heating | ||
| Size(mm) | 16mm,20mm,25mm,32mm |
Heat Conductivity | 0.4w/mk | |
Coefficient of thermal expansion | 0.159 mm/mk | |
Bending radius | ≥5D | |
Medium temprature | +90°c | |
Pipeline internal wall | smooth pipe with low fluid resistance | |
Continuous operating temprature | (-40)° c ~ +90°c | |
Continuous operating pressure | 1.25Mpa | |
Serviceable life | more than 50 years | |
Certification | ISO 9001:2008 ISO14001 | |
| SIZE(mm) | Packing(m/coil) |
| 20*2.0 | 300m/coil |
| 25*2.3 | 200m/coil |
| 32*2.9 | 120m/coli |
Advantages:
1) Easy to process
2) Good thermal stability and long-term pressure resistance
3) Good anti-impact strength, reliability and security (The temperature of brittle fracture can reach to -70 degree)
4) Higher cost performance ratio
5) Flexibility and easy installation
6) Link by fusion, easy installation and repair
Applications:
1) For floor heating system of residential rooms, public building, bathroom and swimming pools
2) For using as the pipe of radiator and central heating in residential area
3) For hot and cold water supply and pipeline of drinking water system
4) For the pipeline of beverage alcohol and milk in food industry
