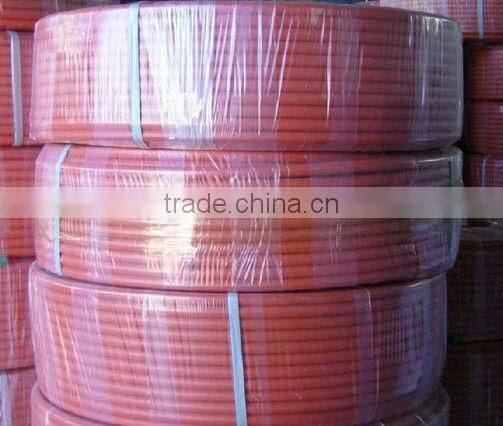

Five-Layers PEX-AL-PEX PIPE
1. Material: imported materials from Korea
2. Size: From 16mm- to 32mm 16*2.0, 20*2.0, 32*3.0
3. Color: whiite,red or as customer request
4. ISO can provide the quality.
5. Guaranteed service life of 50 years
PEX-AL-PEX Pipe | ||
| Size(mm) | 16mm,20mm,25mm,32mm |
Heat Conductivity | 0.45w/mk | |
Coefficient of thermal expansion | 0.159 mm/mk | |
Bending radius | ≥5D | |
Medium temprature | +95 degree | |
Pipeline internal wall | smooth pipe with low fluid resistance | |
Continuous operating temprature | (-40) ~ +95 | |
Continuous operating pressure | 1.0 Mpa | |
Serviceable life | more than 50 years | |
Certification | ISO 9001:2008 ISO14001 | |
PEX-AL-PEX pipe
Pex-al-pex pipes are designed with special polythene both inside and outside, being clean
and smooth. The aluminum layer in the middle is of 100% insulation.
Features:
1) Specification: Φ16 – 32mm
2) Non-toxic, anti-corrosive
3) Light weight, strong mechanical properties and thermal-resistant ability
4) Low fragile humidity and long using life
5) Low flowing resistance inside the pipe, scaling can rarely happen
6) The fluids cannot be contaminated. Effective diameters are big
7) Oxygen is 100% isolated and infiltration is thoroughly prevented. In case they are used as shielding materials for telecommunication circuit, magnetic interference can be prevented
8) Anti-static, and suitable for gas and fuel transportation
9) Can be bended or straightened without restriction
Applications:
1) For floor heating system of residential rooms, public building, bathroom and swimming pools
2) For using as the pipe of radiator and central heating in residential area
3) For hot and cold water supply and pipeline of drinking water system
4) For the pipeline of beverage alcohol and milk in food industry
1.How to get free samples ?
A: Send your address ,your telphone number ,post code ,and express account number to our mail box .and told us which model of samples you need .
2.Who pay for the express cost ?
A: We can support you free samples each model 1-3 pcs ,and we do not pay for express cost .
3.What is your packing?
A: usually plastic bags,carton,can be packed as your require.
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
