Specifications
1.99.9% pure Aluminum Foil
2.Size:1.2m * 40m
3.Weight: 160g-800g
4.Reflectivity:97%
5.ISO & CE certificate
Description

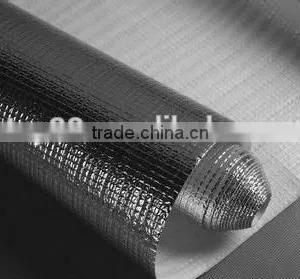

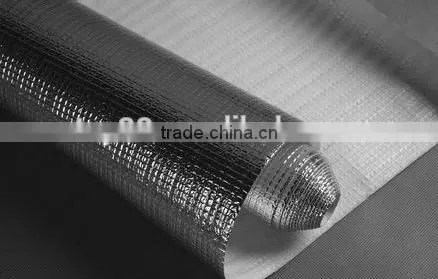

This upgrade product consists of a layer of polyethylene bubbles that are sandwiched between two layers of pure
aluminum foil. This wonderful product is Eco-friendly and contains no harmful substances. Compare with the
traditional insulation materials, it is fiber free, no airborne particles, non itchy and non cancerous. It is easy
to install for homeowners and professional installers.
Two outer aluminum layers reflect up to 97% of radiant heat away from a structure on the outside and back into a
structure from the inside. Therefore, it works effectively in both hot and cold climates. The inner layer of insulating
bubble pack resist conductive heat flow as well as giving high reliability and strength. The bubble creates a more
substantial barrier between volatile outside elements and the comfort of those within a building. It is a favourite to
use in luxury homes and workplaces that need superior comfort and protection from noise.
Technical parameters
Properties | Test Data | Unit |
Size | Standard: 1.0 x 40 , 1.2 x 40, 1.6 x 40 Customized: Any length x 1.0-1.6 width | m |
Thickness | 3-15 (3,4,6,8,9,13) | mm |
Bubble diameter | 7,9,10,12,20,25,30,35 | mm |
Bubble Height | 2, 5, 3.8, 3.6, 4, 5, 15 | mm |
Weight | 160-800 | G/M2 |
Temperature | -60 ~ 180 °F (-51 ~82) | °C |
Reflectivity | 95 ~ 97 | % |
R-value | As high as R17 |
|
Fire rating | Class A / Class 1 |
|
Coating | Sliver, blue, green, or any other colors as you want |
|
Printing | Logo and messages can be printed |
|
Shipping Volume | Single Bubble: 20GP 180-188rolls/ 40HQ 400-410 rolls Double Bubble: 20GP 85-95rolls/ 40HQ 210-230 rolls EPE(3-10mm): 20GP 55-183rolls/ 40HQ 130-443 rolls XPE(3-10mm): 20GP 55-185rolls/ 40HQ 130-450 rolls |
|
