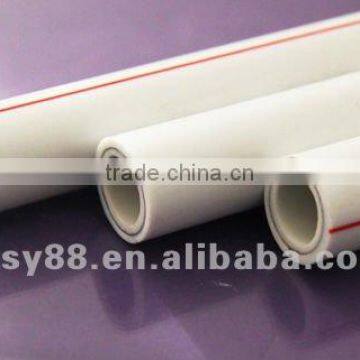

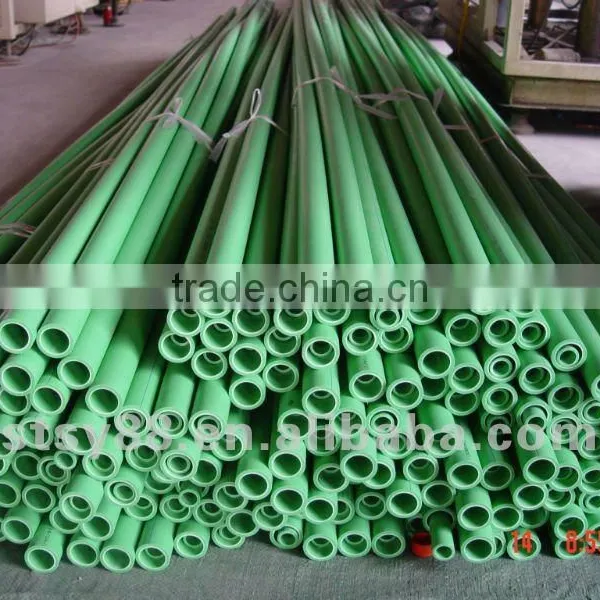

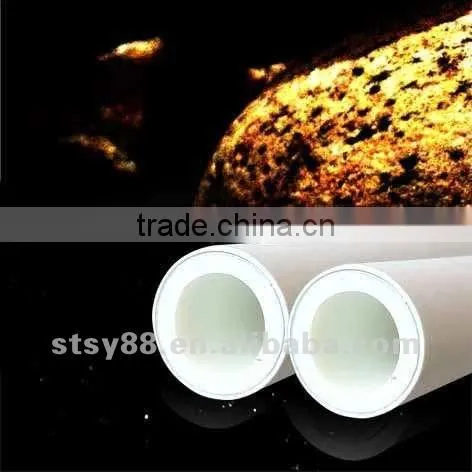

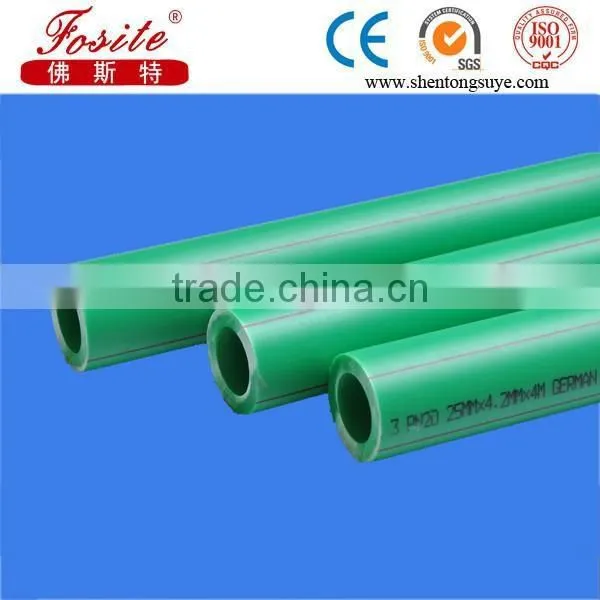

Hot-sale PP-R pipe & fittings for water tube supply
1. Material: 100% virgin PPR
2. Colors: white, grey, green, light brown and any other color on request
3. Certification: ISO9001,
4. Size(mm): 16-160mm (16,20,25,32,40,50,63,75,90,110,125,160)
Physical Property :
- High Temperature Resistance: the maximum sustained working temperature is up to 70 Degrees Celsius, the maximum transient temperature is up to 95 Degrees Celsius
- Heat Preservation: low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe
- Non-toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium
- Corrosion Resistant: resist chemical matters or electron chemical corrosion
- Lower Installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system
- Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes
- Long Life: more than 50 years under normal conditions
- Recycled and Environment-friendly
Specification:
|
PN 1.0MPa |
PN 1.6MPa |
PN 2.0MPa |
PN 2.5MPa |
Outer Diameter dn(mm) |
Wall Thickness en (mm) |
WallThickness en(mm) |
Wall Thickness en(mm) |
Wall Thickness en(mm) |
16 |
|
|
|
|
20 |
2 |
2.3 |
2.8 |
3.4 |
25 |
2.3 |
2.8 |
3.5 |
4.2 |
32 |
2.9 |
3.6 |
4.4 |
5.4 |
40 |
3.7 |
4.5 |
5.5 |
6.7 |
50 |
4.6 |
5.6 |
6.9 |
8.3 |
63 |
5.8 |
7.1 |
8.6 |
10.5 |
75 |
6.8 |
8.4 |
10.1 |
12.5 |
90 |
8.2 |
10.1 |
12.3 |
15 |
110 |
10 |
12.3 |
15.1 |
18.3 |
160 |
14.6 |
17.9 |
21.9 |
26.6 |
Applications:
cold or hot water supply, heating system including flooring heating, wall heating and radiant, central air conditioning and industrial liquids transportation.
Sales in Malaysia in 2012
| MONTH | QTY OF PRODUCTS |
| 1 | 2000M PPR PIPES AND 60000PCS PPR FITTINGS |
| 4 | 2400M PPR PIPES |
| 8 | 1200M PPR PIPES AND 10000PCS PPR FITTINGS |
| 10 | 3000M PPR PIPES AND 30000PCS PPR FITTINGS |
| 12 | 50000M PPR PIPES AND 500000PCS PPR FITTINGS |
1.How to get free samples ?
A: Send your address ,your telphone number ,post code ,and express account number to our mail box .and told us which model of samples you need .
2.Who pay for the express cost ?
A: We can support you free samples each model 1-3 pcs ,and we do not pay for express cost .
3.What is your packing?
A: usually plastic bags,carton,can be packed as your require.
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
