Home > Products > PPR PIPING SYSTEM > China manufacturer ppr pipe fittings for water supply with high quality
China manufacturer ppr pipe fittings for water supply with high quality
- 200000 Meter / Meters per Month
- XINGANG
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Hebei, China | Brand Name: | fosite | Model Number: | ST1001 |
Material: | Other, PPR | Specification: | 20mm--160mm | Length: | 4M or as required |
Thickness: | 2.3mm | Standard: | DIN8077/8078 |
Product Description

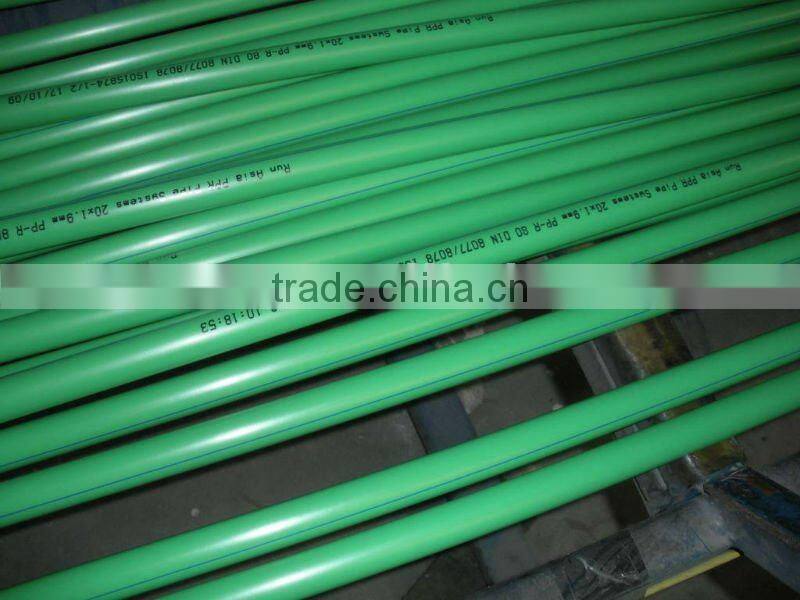

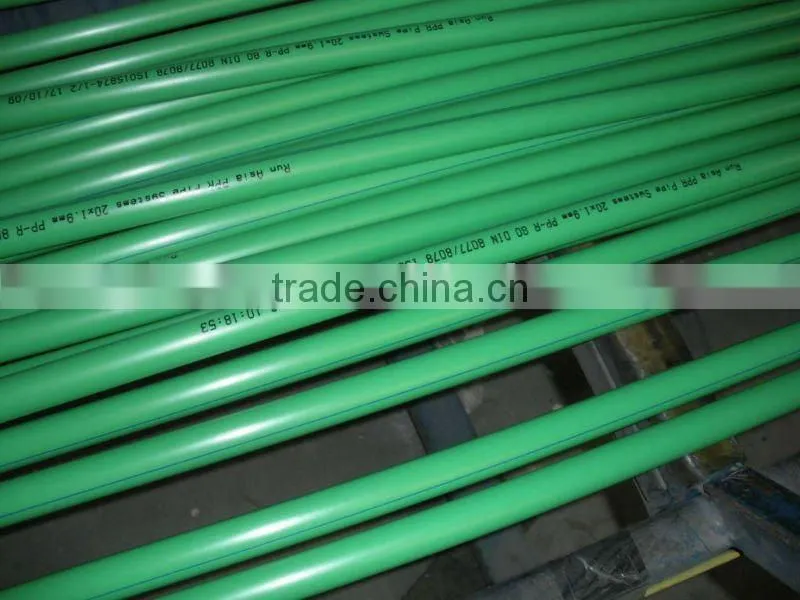

China manufacturer ppr pipe for water supply with high quality
Specifications
plastic pipes for water
1.OD(mm):20-160
2.Friendly for environment
3.Light weight,easy to install
plastic pipes for water
The size as follows:
S5(PN1.25) | S4(PN1.6) | S3.2(PN3.2) | S2.5(PN2.5) |
| 20*2.3 | 20*2.8 | 20*3.4 |
25*2.3 | 25*2.8 | 25*3.5 | 25*4.2 |
32*3.0 | 32*3.6 | 32*4.4 | 32*5.4 |
40*3.7 | 40*4.5 | 40*5.5 | 40*6.7 |
50*4.6 | 50*5.6 | 50*6.9 | 50*8.4 |
63*5.8 | 63*7.1 | 63*8.6 | 63*10.5 |
75*6.9 | 75*8.4 | 75*10.3 | 75*12.5 |
90*8.2 | 90*10.1 | 90*12.3 | 90*15 |
110*10.1 | 110*12.3 | 110*15.1 | 110*18.3 |
Material: first class Random Polypropylene
Sizes: 20mm to160mm
Pressure Rating: 1.25MPa, 1.6MPa, 2.0MPa ,2.5MPa
Colors: light grey, white or other colors on request
Connection: socket fusion joint, electro fusion joint or transition joint
Applications: Cold or hot water supply, heating system including flooring heating, wall heating and radiating system, Central air conditioning system, industrial liquids transportation
Products Advantages:
1. High Temperature Resistance: the maximum sustained working temperature is up to 70 Degrees Celsius, the maximum transient temperature is up to 95 Degrees Celsius
2. Heat Preservation: low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe
3. Non-toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium
4. Corrosion Resistant: resist chemical matters or electron chemical corrosion
5. Lower Installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system
6. Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes
7. Long Life: more than 50 years under normal conditions
8. Recycled and Environment-friendly.
The connection of PP-R piping
1. Prepare the pipe lengths; using standard pipe cutter.
2. Apply heat to pipe ends; Specialised Heating Tool(250°C)-between 5 to 50 sec, depending on pipe thickness
3. Join the pipe to desired fitting; Allow for welding time-between 4 to 10 sec depending on pipe thickness.
1.How to get free samples ?
A: Send your address ,your telphone number ,post code ,and express account number to our mail box .and told us which model of samples you need .
2.Who pay for the express cost ?
A: We can support you free samples each model 1-3 pcs ,and we do not pay for express cost .
3.What is your packing?
A: usually plastic bags,carton,can be packed as your require.
