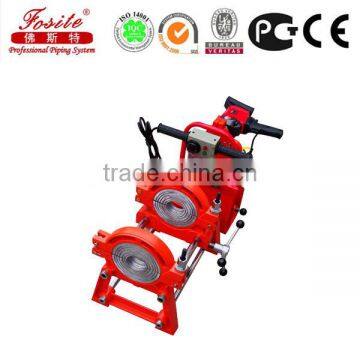

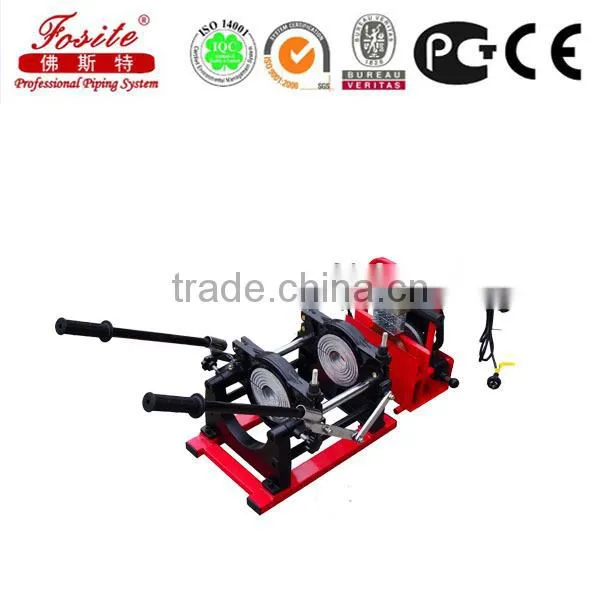

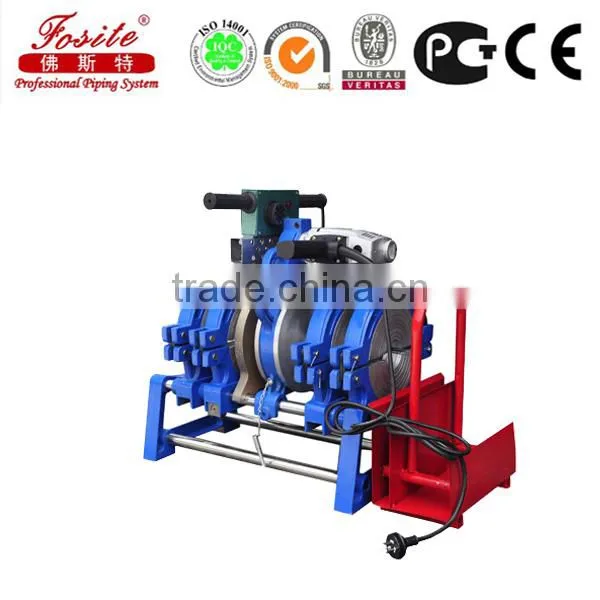

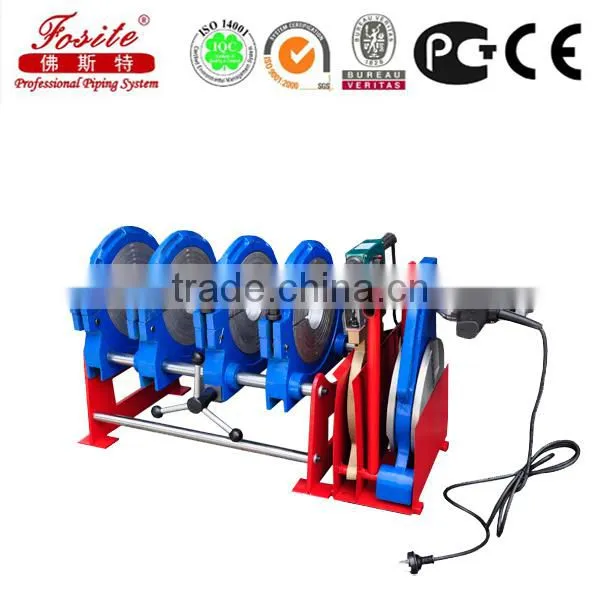

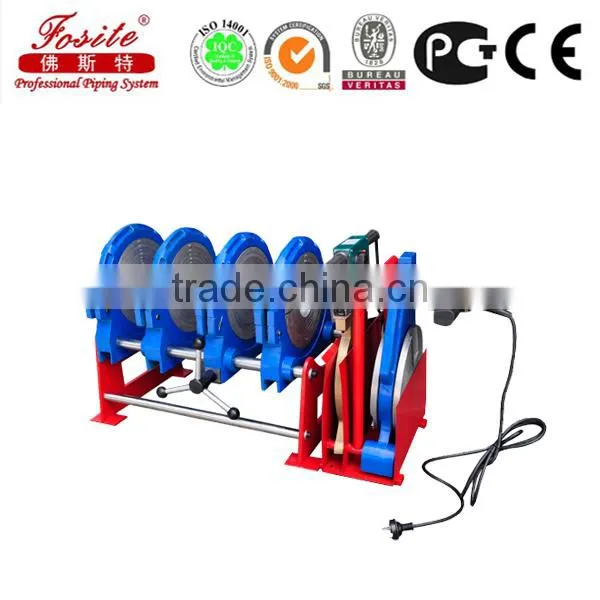

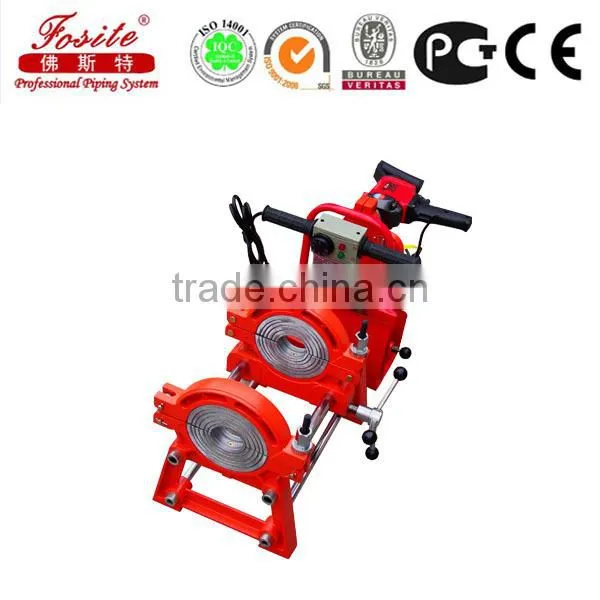

50-160mm Manual butt welding machine For PE pipe
1.welding spec :63-160mm
2.welding material:PE PPR PB
3.docking deviation:<0.3mm
Products Features:
Product name: |
PE welding machine |
Item No.: |
ST160/63 |
Power: |
1500W |
Voltage: |
230V |
Die size: |
63mm/75mm/110mm/160mm |
G.W.: |
55.6 KGS |
Specialty: |
PE pipe welding machine with digital indicator. |
Packing: |
in one wooden case |
Color: |
Color can be changed as you required |
| Dimensions: | 980*480*550 mm |
Content: |
User manual,screws,screw driver,hexagonal spanners,holder,glove |
Warranty |
2 years |
|
|
Application
Suitable for butt welding of plastic pipes and / or fittings made of PE,PP, and PVDF in worksite or workshop
Features
Removable PTFE coated heating plate with separate temperature control system.
Electrical planning tool;
Be made of lightweight and high strength material; simple structure, small and delicate user friendly;
Low starting pressure ensures reliable welding quality of small pipes;
Separate two-channel timer shows time in soaking and cooling phases;
High-accurate and shockproof pressure meter in indicates clear readings.
Changeable welding position brings more convenience while various fitting.
Technical specifications
Welding ranges: plastic pipes: 63mm-160mm
Ranges of application: PE,PP and PVDF
Working voltage: ~380V ±10%,50Hz
Total power: 14.7 kW, including: planning tool:1.5 kW, heating plate:11 kW , hydraulic unit motor: 2.2kW
PTFE coated heating plate, adjustable knob for temperature control, difference in heating plate surface temperature ≤±7°.
Environment temperature: -10° ~ 45° ;
Electronic count-down timer for heating and cooling time ;
Whole machine consists of basic frame, heating plate, planning tool, hydraulic unit, support (for planning tool & heating plate) ;
If you have intereted in our products,pls do not hesitate to contact us. OEM is also welcomed.
