Specifications

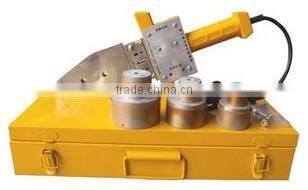

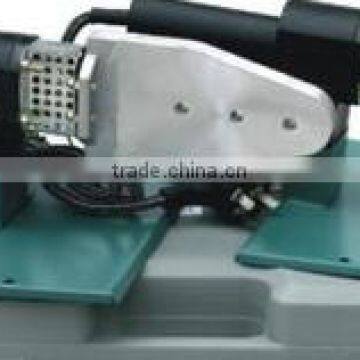

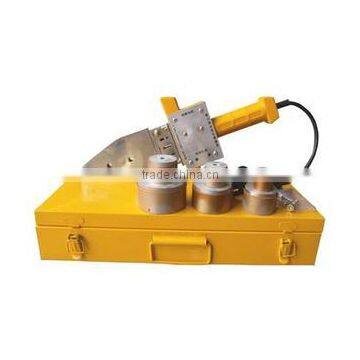

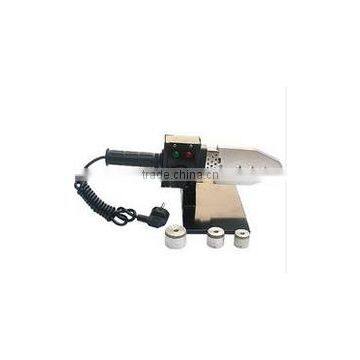

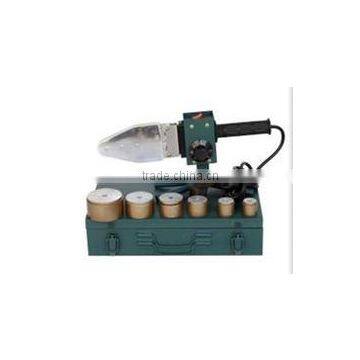

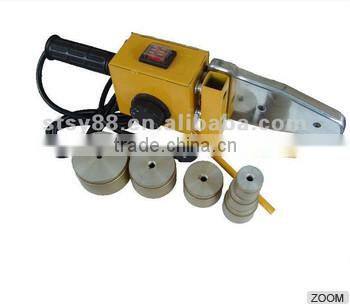

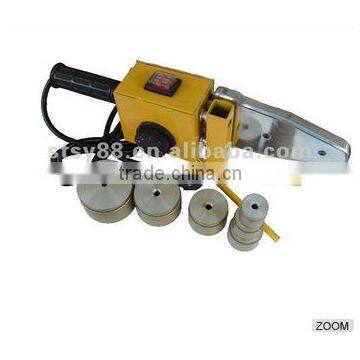

PPR pipe welding machine/ plastic pipe welder:
its equiped 6 moulds of its diameter size 20-63mm
PPR pipe welding machine/ plastic pipe welder:
its equiped 6 moulds of its diameter size:20-63mm
we can offer good quality with competive price
(1.) welding connector
(2.) Plastic pipe welding machine
(3.) Quality is excellent and professional.we have the ce certification
(4.) Voltage: 220V±10%,frequency:50/60Hz; Power: 800W
(5.) Component: 20-63MM sockets, screws, Screwdriver,hexagonal spanners.Using Manual.standing.
(6.) The size of the moulds:20mm,25mm,32mm,40mm 50mm 63mm
(8.) Pack list: 5pcs/CTN, 21/20KGS (G.W./N.W.), MEAS/CTN:45*36*38CM
(9.) Up to 500pcs, appointed color box and instruction.
Usage
1. Fixed install heating-side welding head, the welding device placed on the shelves, according to specifications required to install the corresponding heating pipe die head, and pull tight with a hex generally small in the preceding paragraph, a large back-end.
2. Switch on the power (note the power supply must be protected with a ground line), according to the corresponding models of the machine to the instruction attention to light changes, until the welding temperature control device to enter the work state, can be started.
3. With vertical cutting device to cut off pipe tube, pipe and fittings will also promote the welding device with no moving within the die, as required for operation. Immediately after the heating time to reach pipes and fittings removed from the die head at the same time, rapidly rotating non-uniform insert directly to the desired depth, to form a uniform flange joints.
Shijiazhuang Shentong Plastic Industry Co.Ltd was established in 2003, which is a enterprise concentrating manufacturing and sales. Specialized in new plastic piping. The leading products are Fosite Brand PP-R,PP,PE,UPVC,PE-RT,PEX pipe & fittings and plastic tubing welding equipment. Has a national advanced automated manufacturing equipment and complete product specifications. Following the quality policy of ''pursuit of excellence, render a service'',
Shentong has passed ISO9001,ISO
