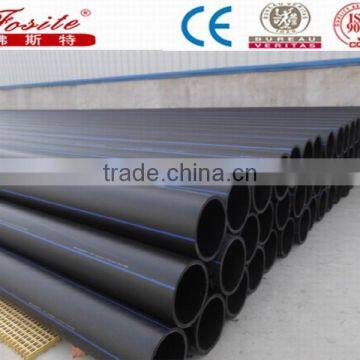

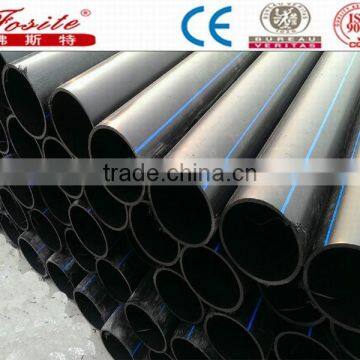

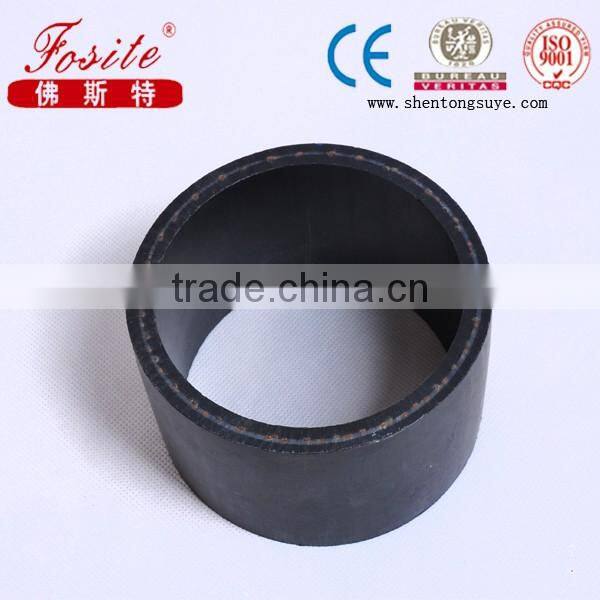

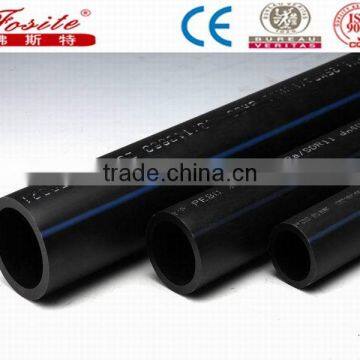

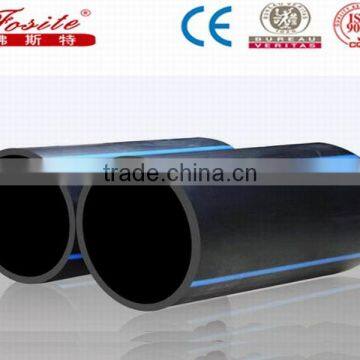

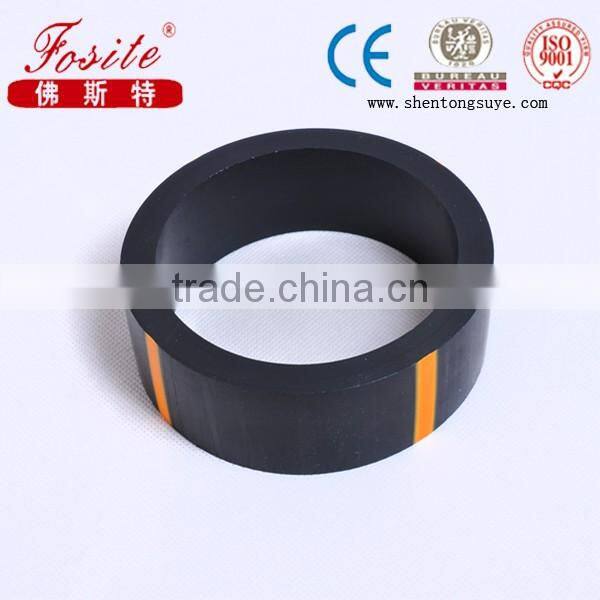

pe gas pipe
pe gas pipe feacture :
Colors: black
Connection: socket fusion joint
Applications: gas supply,
Length: 4m,6m,9m,12m of straight, coil or as requested
Packing: In coils or 6-12m/piece by plastic bag

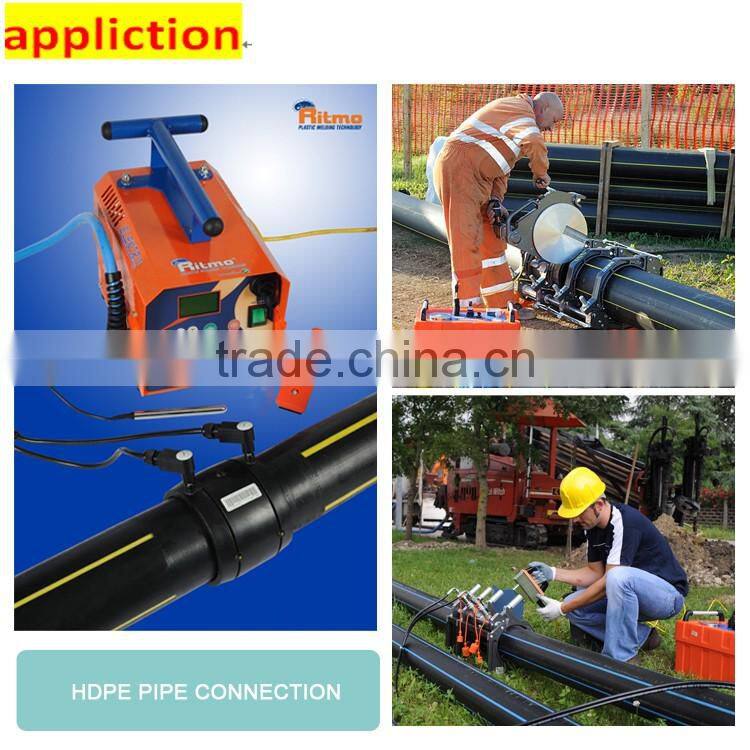

Connection: socket fusion, butt fusion, electro-fusion
Standard: GB/T13663-2000, ISO04427-2:2007(E)
Service Life: Minium 50 years life under normal condition
size detail:
| HDPE100 Water Pipe | |||||
| Standard: GB/T13663-2000 ISO9001-2008 Thickness:mm | |||||
| PN | 0.6MPa | 0.8MPa | 1.0MPa | 1.25MPa | 1.6MPa |
| SDR | SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 |
| DN(mm) | thickness | thickness | thickness | thickness | thickness |
| 16 | 2 | ||||
| 20 | 2 | 2.3 | |||
| 25 | 2.3 | 3 | |||
| 32 | 2.3 | 2.4 | 3 | ||
| 40 | 2.3 | 2.3 | 3 | 3.7 | |
| 50 | 2.3 | 2.9 | 3.7 | 4.6 | |
| 63 | 2.3 | 2.5 | 3.6 | 4.7 | 5.8 |
| 75 | 2.9 | 3.6 | 4.5 | 5.6 | 6.8 |
| 90 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 |
| 110 | 4.2 | 5.3 | 6.6 | 8.1 | 10 |
| 125 | 4.8 | 6 | 7.4 | 9.2 | 11.4 |
| 140 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 |
| 160 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 |
| 180 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 |
| 200 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 |
| 225 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 |
| 250 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 |
| 280 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 |
| 315 | 12.1 | 15 | 18.7 | 23.2 | 28.6 |
| 355 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 |
| 400 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 |
| 450 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 |
| 500 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 |
| 560 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 |
| 630 | 24.1 | 30 | 37.4 | 46.3 | 57.3 |
| 710 | 27.2 | 33.9 | 42.1 | 52.2 | - |
| 800 | 30.6 | 38.1 | 47.4 | 58.8 | - |
| 900 | 34.4 | 42.9 | 53.3 | ||
| 1000 | 38.2 | 47.7 | 59.3 | ||
| 1200 | 45.9 | 57.2 | 70.6 | ||
HDPE Pipe Applications:
1. Drinking water supply system
2. Nature Gas supply system
3. Food and chemical industry
4. Replacement of cement pipes and steel pipes
5. For Mine, argillaceous silt/mud transportation
6. Irrigation and garden green pipe networks and sewage treatment

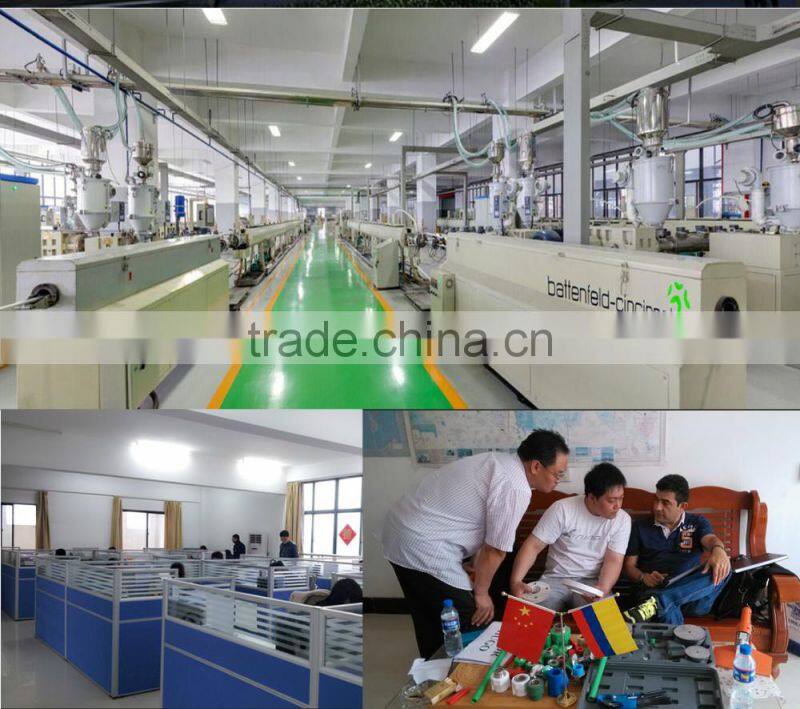

shentongplastic Co.,Ltd locating in Shijiazhuang Industrial Area is a professional manufacture of PPR Pipe
and Fittings. Adhering to the"Quality First,Sincere Service" and basing on advanced production technology ,
scientific management , first-class quality and best after sales service ,Luo Yang Yagene Pipe Co.,Ltd has
won the customers' trust at home and abroad. And in Construction and Pluming industry, our company also
has our extensive space and important position.
about delivery:
our conventional pipe fitting 24 to 48 hours in delivery,the need to
order or special order 5-7 days or so delivery,so the delivery
requirements,pleasw contact customer service,does not exclude logistics
and weather and other nathural factors of dellay.
If you have any questions, you can feel free to contact me in anytime . welcome to our company!
Contact information:
Skype:chunchungood
Mobile:0086-13582154118
