Specifications
Stainless Steel Test SievesBrass frame and wire, dia 8" with diferent mesh No
Stainless Steel Test Sieves
Application:
The Sieves is used to test the particle weight in different grain size in the soils and its making up percentage of total weight of dry soil (sand).
Specifications:
1. Sieve frame : brass construction with top cover and bottom pan
2. Sieve mesh material : stainless steel and brass
Model | Application | Sieves opening (mm) | Frame |
FB-2 | Soil analysis sieve | 0.075; 0.15; 0.3; 0.6; 1.18; 2.36; 4.75; 9.5 | Ø 200 x 50mm |
FB-3 | Sand analysis sieve | 9.50,4.75,2.36,1.18,600um,300um,150um | Ø 300 x 75mm |
FB-4 | Stone analysis sieve | 2.36,4.75,9.50,16.0,19.0,26.5,31.5,37.5,53.0,63.0,75.0,90.0 | Ø 300 x 75mm |
FB-5 | Asphalt analysis sieve | 0.075; 0.15; 0.3; 0.6; 1.18; 2.36; 4.75; 9.5; 13.2; 16; 19; 26.5; 31.5; 37.5; 53 | Ø 300 x 75mm |
FB-6 | Wash sieves | dia 120mm, 0.75mm |
|
FB-7 | Cement Sieves |
|
|
Model | Application | Sieves opening (mm) | Frame |
FB-2 | Soil analysis sieve | 40, 20, 10, 5, 2, 1, 0.5, 0.25, 0.075 | Ø 200 x 50mm height |

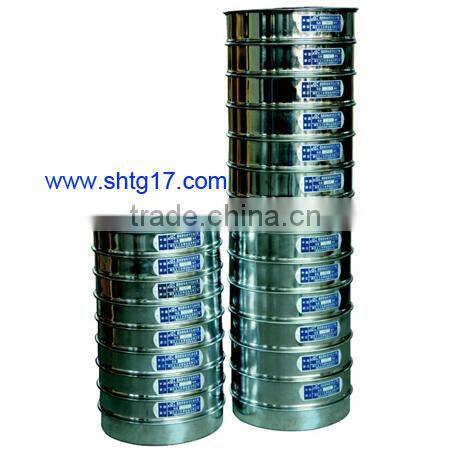

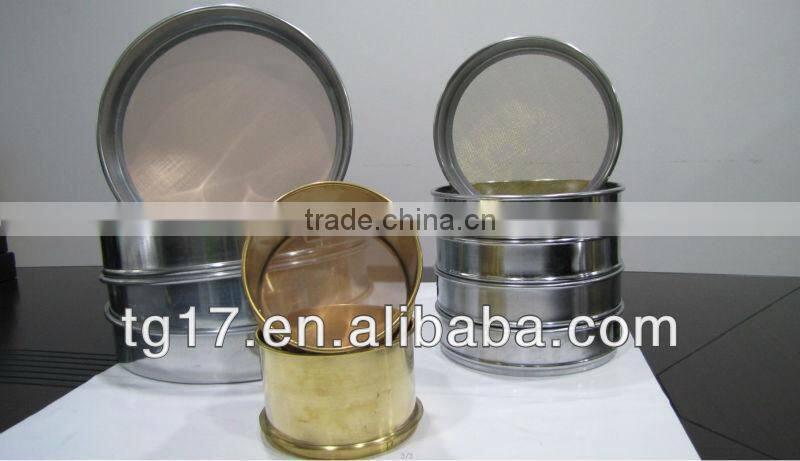

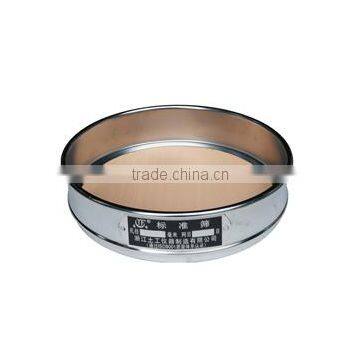

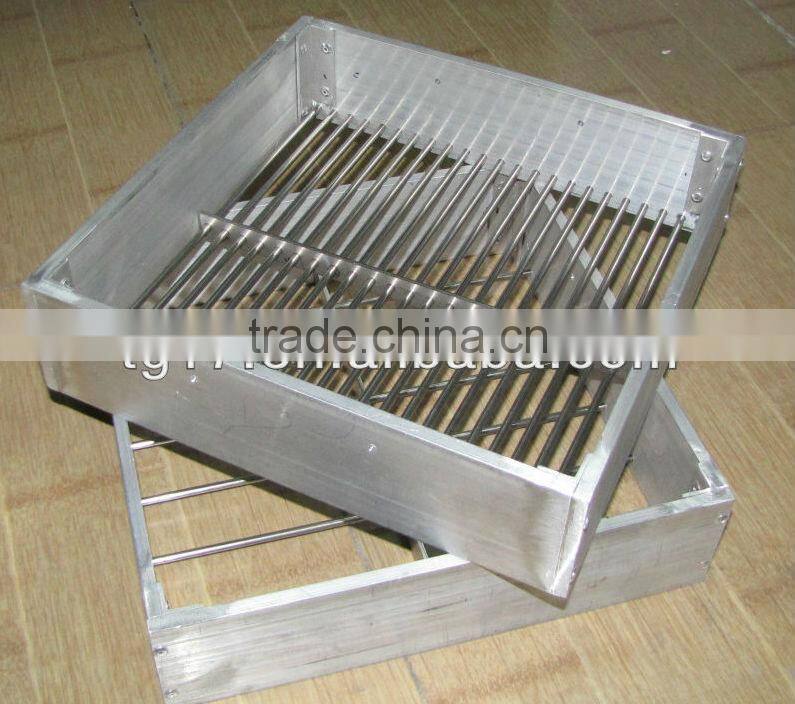

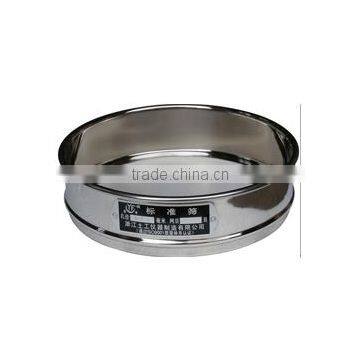

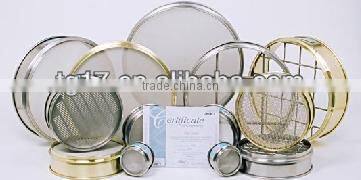

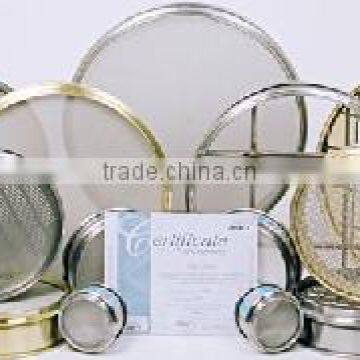

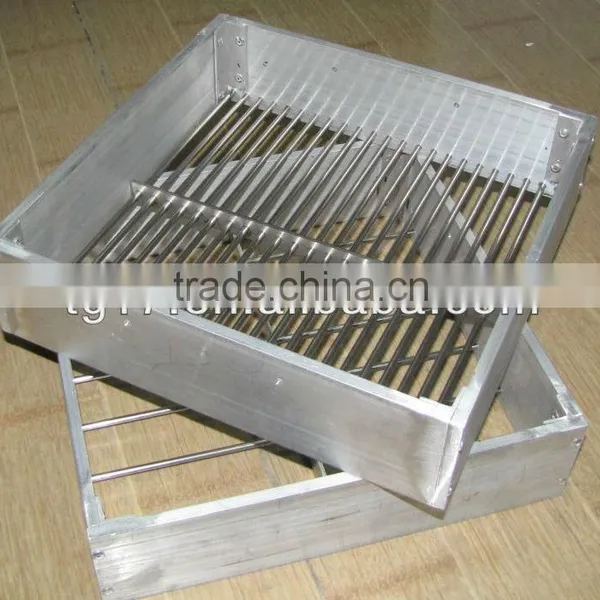

Below is picture of Stainless Steel Test Sieves :
