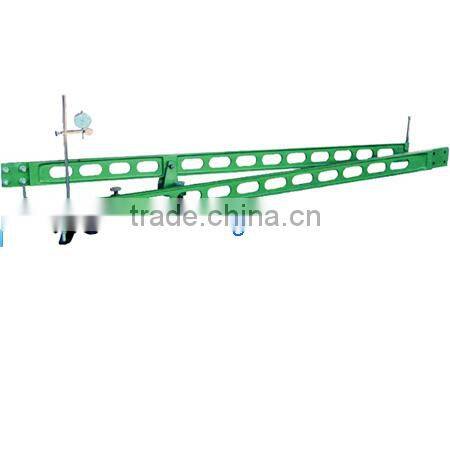

Resilient Modulus Testing for Pavement Test

Resilient Modulus Testing

1. Applicatioin:

It is used to determin the intensity of pavement andcheck the quality of pavement through test the resilience value of pavement under negative pressure. It is widely used by highway design, execution and maintenance.

2. Characteristic

• Patent product
• The supporting part of lever is used billard bearing structure
• High  sensitivity, convenient operation, precise measurement
• Have three measuring bar with different length, is suitabl for measurement in all kinds of different working site

3. Specification:

• lever ratio: 2:1
• indication graduation: 0.01mm
• specification: 3.6m, 5.4m, 7.2m

 4. Apparatus set:

• Front lever
• Back lever
• Apparatus seat
• Dial gauge bracket
• Measuring poling
• Measuring head: 50mm, 100mm, 150mm  1pc per size
• Dial gauge
