1. Summary
These test methods are used to estimate the bearing capacity of a soil under field loading conditions for a specific loading plate and depth of embedment (ASTM D1194) but also for load tests of soil and flexible pavement components for use in evaluation and design of airport and highway pavements (ASTM D1195, D1196 - BS 1377 - CNR No. 92 and No. 146 – DIN 18134). We propose a complete range of plate load testing equipment conforming to the different standards.
2. Use

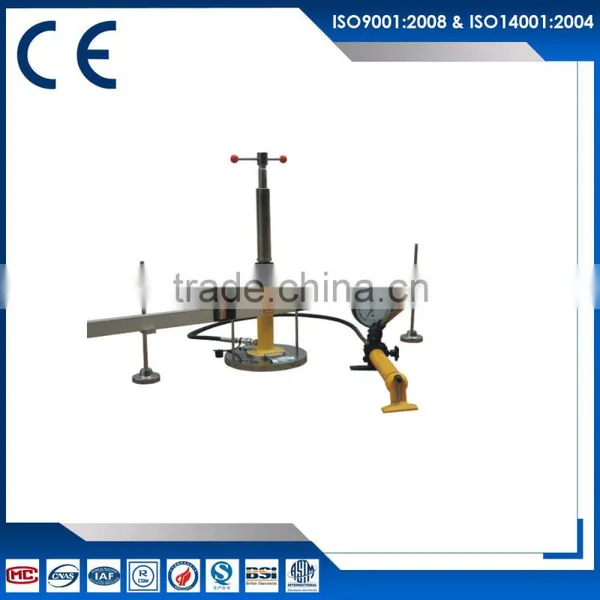

Plate Bearing Testing Apparatus used to estimate bearing capacity of road base or ground base, which is filled and compacted after coarse and fine grained soil, also can used to count deformation modulus of even groundsill.
3. Specification
1). Load plate: 300mm
2). Hydraulic jack max. load: 5T
3). Hydraulic jack journey: 12mm
4). Span: 3000mm
5). Electric oil pump rated pressure: 70Mpa
6). Pressure range: 0-25Mpa
7). Displacement range: 0-10mm
8). Use engine oil: number 15 engine oil,
9). Use temperature environment: 5—45 degree
