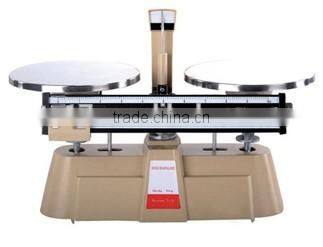

Lab Double Beam Balance

Specifications

Double Beam Balance
two-gauge balance
1. Capacity: 2000g
2. Sensitivity: 0.1 g

Double Beam Balance

Description:
Mechanical double beam balance is suitable for physics and chemistry experiments, analytical weighing in chemical works, medical hygiene weighing, foodstuff, agriculture, textiles, electronics, mines, scientific research institutions, high school science labs, universities, colleges and more.
Double Beam Balance With single pan and captive weights sliding on scales. Reading can be taken with index scale and pointer. Meant for speed in weighing routine samples.



Specifications

0~2000g/0.1g, Metal base and beam, stainless steel pan, beams with sliding weights and a variety of weighing platforms.

Main technical date:
1.Capacity: 2000g
2.Sensitivity: 0.1g
3.Second beam: 200gx10g
4.Front beam: 10x0.1g
5.Pan size(diameter ): 150mm
6.Weighting: grams
7.Damping system: Magnetic



Model	STMB-2000
Capacity	2000 g
Division	0.1 g
First Rod	10×0.1g
Second Rod	500×100g
Pan	150 mm (stainless iron)
Weights	1kg, 500g, 200g, 100g
Net Weight (1 pc)	2.1 kg
Gross Weight (1 box)	5 kg
Outline	350×240×170 mm
Out Packing (4 pcs)	490×430×580 mm (by carton)
Gross Weight (kg)	20 kg











How to Use a Double Beam Balance
There are two general types of double beam balance scales. The first is the tabletop kind that is most often seen in laboratories. The second type is more familiar to the general population because it is commonly used in a doctor's office to determine your weight. Both types have a pan on which the object being measured is placed and two beams with sliding weights to record the measurement. The method for using both types is the same.

Instructions
1. Check the beam to make sure it is balanced with nothing on the scale.
2. Place the object to be weighed on the pan. If you are using a doctor's scale, stand on the pan. The indicator will move upward.
3. Slide the larger weight along its beam until the indicator points downward. Many scales will have notches for the larger weight. Once the indicator falls, slide the weight back one notch. The indicator should rise again slightly above the center mark.
4. Slide the smaller weight along its beam until the indicator is balanced and points to the center mark. This smaller weight allows greater precision than a single weight on a single beam.
5. Read the values indicated on each beam's scale and combine them to get the object's or person's weight.
