Geosynthetic Direct Shear Instrument

Specifications

1.standard (JTGE50/2006-10-1)
2.high precision stepper motors
3.Power 220V 10%

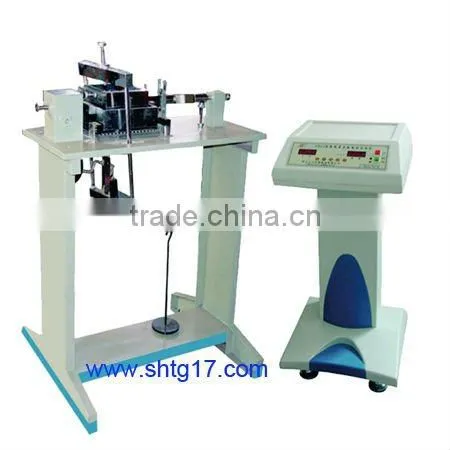

STJY-5 Geosynthetic Direct Shear Instrument



Geosyntheic Materials testing machine

standard :
The instrument is in line with the new standard (JTGE50/2006-10-1)
Application: for determination of friction characteristics between soil and geosynthetics along the border edge.

Features: It uses high precision stepper motors.

Specification:
Measuring range 0-10KN
Vertical load pressure 100Kpa, 200Kpa, 300Kpa, 400Kpa
The level of shear rate 0.02 -3mm/min
The level of shear displacement 0-30mm
Power 220V ± 10%
