Drilling fluid Filter Press

Specifications

Drilling fluid Filter Press

Description:

Drilling fluid Filter Press is the most effective means of determining the filtration properties of drilling muds and cement slurries.
Measuring filtration behavior and wall-cake building characteristics of a mud is essential to drilling fluid control and treatment. The characteristics of the filtrate, such as oil, water or emulsion content, are also fundamentally important. The types and quantities of solids in the fluid and their physical and chemical interactions affect these characteristics. Temperature and pressure in turn affect the physical and chemical interactions. It is therefore necessary to run tests at both low-pressure/low-temperature and high-pressure/high-temperature. Each of these testing conditions requires different equipment and techniques.
The ZNS-5A Low Pressure Low Temperature (LPLT) Filter Press consists of a mud reservoir mounted in a frame, a pressure source, a filtering medium, and a graduated cylinder for receiving and measuring filtrate. The basic unit has a cell assembly constructed of rustproof anodized aluminum and chrome plated brass, and includes the required screen and gaskets.

Main Technical Date:

1.Effective Filtration Area: 7.1 in²(45.6 cm²);
2.Working Presure: 0.69MPa (100 PSI);
3.Amount of the drilling fluid injected: 350 ml/unit Repetitive error: 1.5ml
4.Configuration:stage form,
5.Amirican API standard
6.Overall size: 240×200×500mm

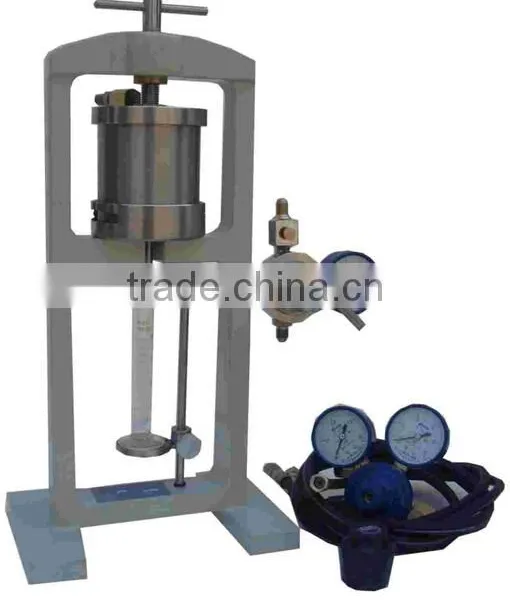

Below is picture of Drilling fluid Filter Press :

Please feel free to contact me for price list . MY SKYPE ID is magnolia-fu .
