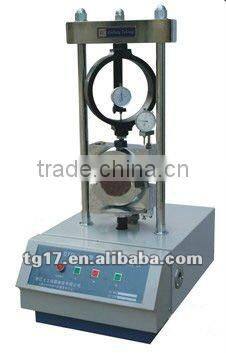

Marshall Testing Machine

Specifications

      Marshall  testing machine

Function:

The apparatus is used to determine thermal stability of bituminous mix material and capability of resisting-plastic deformation and flow value of the material as well as providing accurate basis For the composition of bituminous mix material.

Complies to ASTM D1559

Specification:

1. Capacity:0-50KN precision:1%

2. Resolution:0.1KN,0.01KN

3. Twin displacement structure, displacement resolution: 0.01mm

4. Environment temperature: -10°C-40°C

5. Test speed 50.8mm/minute

6. Supplied with one breaking head, diameter 101.6mm

Features: Equipped with one S shape load cell and double displacement sensors, peak value automatically preserved and printing, the principal axis automatically fall after printing

Feature:

Complete with S-type pressure sensor,

double displacement sensor,

 ABS controller.

It can automatically keep record of the peak value and print it out.

principal axis can automatically fall after print.
