steel structure workshop

FOB Price

USD $35 - $85 / Square Meter

200 Square Meters(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	JinYi
Model Number	ST-002

Steel structure warehouse
Easy construction and low cost
Seismic and fire-proof resistance
High resistance and flexible

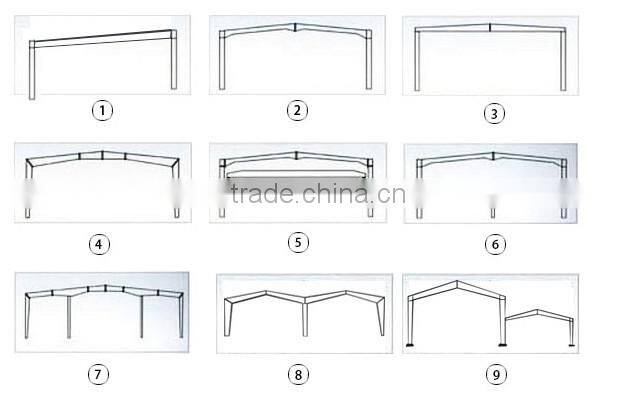

Type portal frame:

1. Single slope

2. Large span double slope ( Span :9m-12m ; H:3m-7m ; Slope :1/20 1/10 1/5 1/3 )

3. Small span and double slope ( Span :9m-30m ; H:3m-8m ; Slope :1/20 )

4. Large span double slope ( Span :18m-36m ; H:3m-9m ; Slope :1/20 1/10 )

5. Large span double slope ( with cranes ) ( Span :12m-24m ; H:3m-10m ; Slope :1/20 1/10 1/5 )

6. Large span double inclined plane (double) ( Span :12m-24m ; H:3m-10m ; Slope :1/20 1/10 1/5 )

7. Multi span double slope ( Span :72m-180m ; H:3m-8m ; Slope :1/20 1/10 )

8. Multi span and multi slope

9. High and low span combination

Classified steel structure

Simple Steel Structure Warehouse
Main structure	Single span: L -shorter than 18m, H -lower than 6m
Maintenance system	Roof	Colored steel sheet with 50mm glass wool
	Wall	Colored steel sheet
	Door	Simple steel rolling shutter (within 10m2)
	Window	customizable

Standard Steel Structure Warehouse
Main structure	Single span: L -shorter than 24m, H -lower than 8m
Maintenance system	Roof	Colored steel sheet with 50mm glass wool insulation
	Wall	Colored steel sheet or 50mm EPS sandwich board
	Door	Wind resistance rolling door(within 15m2)
	Window	customizable

Coastal (high wind speed) Steel Structure Warehouse
Main structure	Single span: L -shorter than 18m, H -lower than 6m
Maintenance system	Roof	Colored steel sheet with 50mm glass wool insulation
	Wall	Colored steel sheet or 50mm EPS sandwich board
	Door	Wind resistance rolling door (within 15m2)
	Window	customizable

Cold Region (heavy snow) Steel Structure Warehouse
Main structure	Single span: L -shorter than 18m, H -lower than 6m
Maintenance system	Roof	EPS/rock wool/PU sandwich board
	Wall	EPS/rock wool/PU sandwich board
	Door	PU foamed rolling door
	Window	customizable

Application examples
