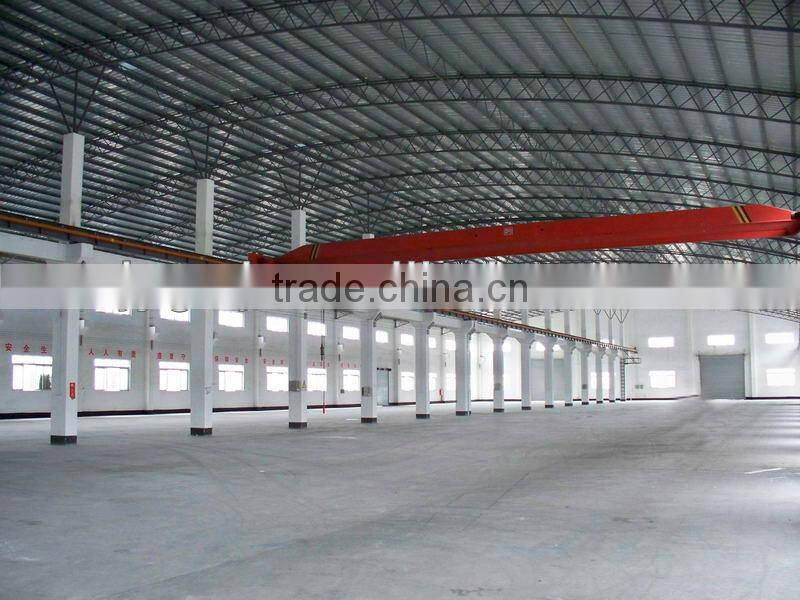

steel structure frame workshop

Specifications

1.steel construction
2.steel structure building
3 widely used as warehouse , factory ,hotel ,workshop
4.it's beautful

Light steel structure building is a new type of building structure system, which is formed by the main steel framework linking up H-section, Z-section, and U-section steel components, roof and walls using a variety of panels and other components such as windows and doors. Light steel structure building is widely used in warehouses, workshops, large factories, and so on.





1. we can supply as you need



	1)Steel Structure Buling
	2)Metal Building

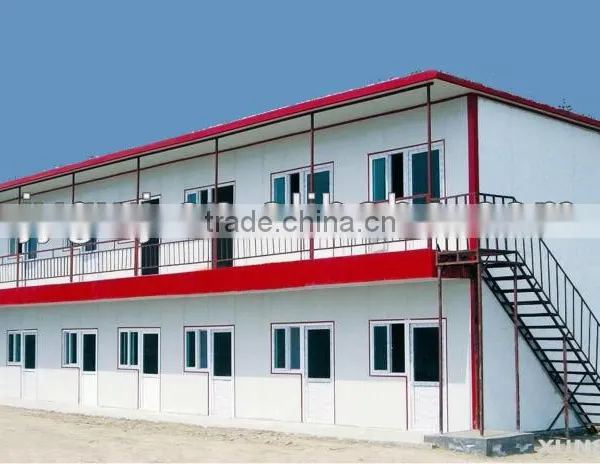

	3)Modular House
choose	4)steel Structure factory
	5)workshop&warehouse
	6)hotel
	7)labor house









2.Designation



a).Different Bases : Cement and  steel foundation bolts







 b).Different column and beams : Material Q345 or Q235 steel







 c).Different brace : any type







 d).different Purlins : C or Z type







 e).different roof and wall panel : single colorful corrugated steel sheet or sanwich panel witrock wool ,PU







 f).all accessories : Glavanized gutter, pipe ,ventilators,and semi-transparent skylight belt







 g)surface : 2 layers of anti -rust painting







 h). packing : main structure packing in an integrated rack made by H beams , other parts pasking in parcels or pallet , loading in 1*40 container, that will safe and easy to handle











3.Design specification















A. up to coustomer







 B. live load on roof ( kn/m2)







 C. wind speed (km/h)







 D.Snow load (kg/m2)







 E.earthquake load







 F.style of door and window







 G:size : length  *  width * eave height ,roof gradient































4.Category

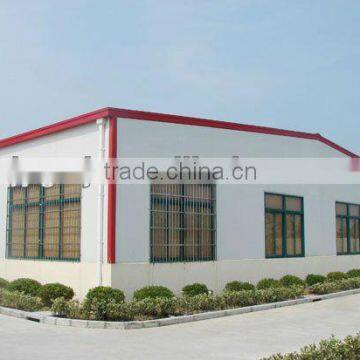

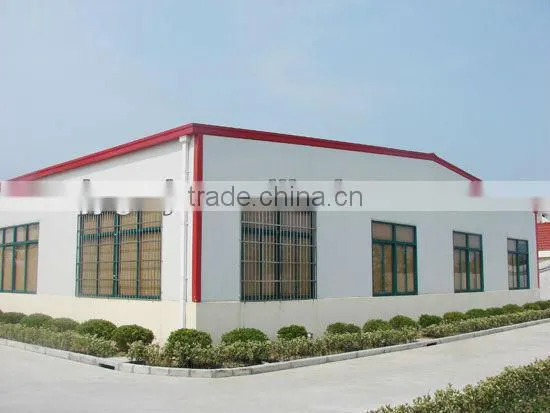

A. Simple steel structure Warehouse















a). main structure :  Single Span







 b).Maintenance system :







 1.Roof : colored steel sheet with 50 mm glass wool







 2.wall  : colored steel sheet







 3.Door : simple steel rolling shutter







 dow : few















c)usage : warehouse ,workshop, factory















 d) standard and suitable markket : africa, Middle-east















 B.standard steel struvture warehouse















a). main structure :  Single Span















b).Maintenance system :







 1.Roof : colored steel sheet with 50 mm glass wool







 2.wall  : colored steel sheet or 50mm EPS  sandwich board







 3.Door : wind resistance  rolling door ( with 15m2)







 dow : Alu.alloy (or with skylight)















c)usage : warehouse ,workshop, factory .super market ,mall,  hall







 any question pls send the e-mail to (guocc0515@hotmailcom)
