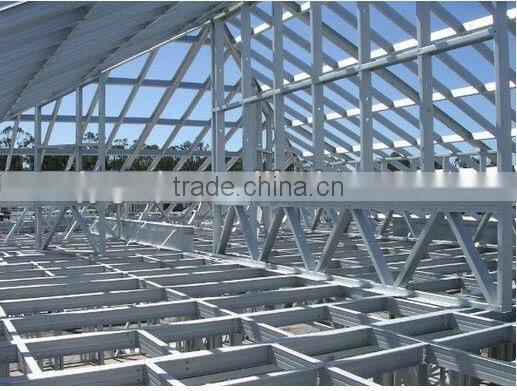

steel structure warehouse

Specifications

1.steel construction
2.Quick installation speed
3.Low price & Reusable
4.Rich experience in large projects

1) Steel structure warehouse description:

Light steel structure building is a new type of building structure system, which is formed by the main steel framework linking up H-section, Z-section, and U-section steel components, roof and walls using a variety of panels and other components such as windows and doors. Light steel structure building is widely used in warehouses, workshops, large factories, and so on.









Dimensions	Length	Hbeam:4000-15000mm
	Thickness:	web plate:6-32mm       wing plate:6-40mm
	Height	200-1200mm
	Color	according to customers
Main components	Main frame	H beam
	Purlin	C or Z section steel purlin
	Brace	Anchor, ordinary, high strength bolt
	Bolt	Sandwich panel or steel plate
	Roof & wall	PVC or aluminum alloy door
	Door	Sliding or rolling door
	Insulation panel	EPS, XPS, Rock wool , PU sandwich
	Material	Q235B,Q345B China standard steel
	Sheet	0.5mm or 0.6mm galvanized sheet







2) Materials:



1. The main frame (columns and beams) is made of welded H-style steel.



2. The columns are connected with the foundation by pre-embedding anchor bolt.



3. The beams and columns, beams and beams are connected with high intensity bolts.



4. The envelop construction net is made of cold form C-style purlins.



5. The wall and roof are made of color steel board or color steel sandwich panels, which are connected with the purlin by Self-tapping nails.



6. Doors and windows can be designed at anywhere which can be made into normal type, sliding type or roll up type with material of PVC, metal, alloy aluminum, sandwich panel and so on.











3) Characteristics:



1. Wide span: single span or multiple spans, the max span is 36m without middle column.



2. Low cost: Unit price range from USD35/m2 to USD70/m2 according to customers' request.



3. Fast construction and easy installation.



4. Long using life: up to 50 years.



5. Easy construction, time-saving, and labor saving
6. Flexible layout, beautiful appearances, and higher space efficiency
7. Be used as warehouses, workshops, shopping mall, dinning hall, stadium, etc.



5. Others: environmental protection, stable structure, earthquake proofing, water proofing, and energy conserving.



5) How to build a steel building?







You should give us the following data:











Design Data	load on roof(KN/M2)   d speed(KM/H)   3.snow load (KG/M2) if have 4.earthquake load if have    5.crane (if have), lift height, lift capacity,
Size	1.width 2.length 3.eave height  4.roof slope
Type	1.single slope OR double slope        2.muti slope OR single span 3.double-span OR Multi-span         4.single floor OR two floors
Intercolumn	5m, or 6m….
Windows &Door	1.quantity    2.size   3.Location 4.PVC or aluminum
Column &Beam	straight cross-section OR Variable cross-section
Roof & Wall Panel	lorfull corrugated steel sheet   0.326~0.8mm thick ,YX28-205-820(820mm wide), 2.sandwich panel with EPS,ROCK WOOL,PU etc, insulation thickness around 30 ~300mm, 3.sheet+glass fiber(thick 50mm~200mm)
Purlin	1.C purlin size:120~C320,Z 2.purlin size100~Z200
Accessories	Do you need the skylight belts, Ventilators, down pipe, out gutter etc?
Surface Treatment	Shot blasting with anti rust paint or hot dip galvanize
