Home > Products > Anchor Bolt > M6X50 Bolt Anchor

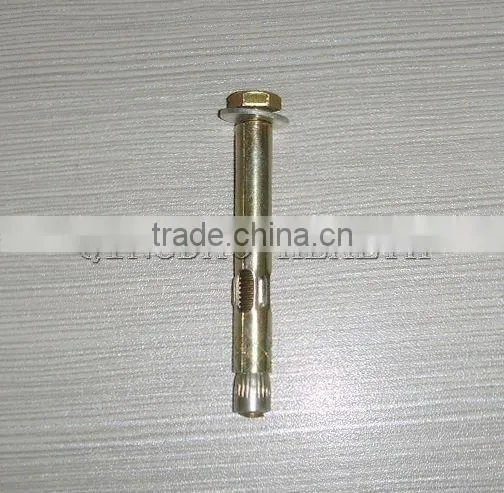

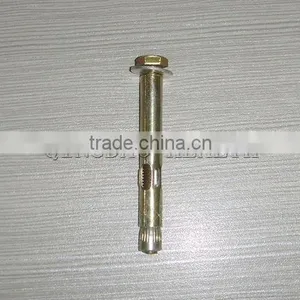

M6X50 Bolt Anchor
US$ 0.4 - 0.68
/ Piece
50000 Pieces(Min. Order)
- Qingdao China
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | HLTH | |
| Model Number | anchor | Type | Other, Bolt Anchor | |
| Material | Steel | Diameter | 1/4" | |
| Length | 50mm | Capacity | 890-4950lbs |
Product Description
Specifications
Bolt AnchorStandard:DIN,ANSI/ASME,BS
Size:M6-M20
Material:Stainless Steel,Carbon Steel
Finish:YZP,WZP,BZP,H.D.G
Size (mm) | Outside Dia(mm) | Sleeve Length(mm) | Drill Dia (mm) | Pull Out Load (kgs) |
| M6(1/4)×50 | 9.5 | 30 | 9.5 | 890 |
| M8(5/16)×65 | 12.0 | 35 | 12.0 | 1390 |
| M8(5/16)×70 | 12.0 | 35 | 12.0 | 1390 |
| M10(3/8)×70 | 14.0 | 40 | 14.5 | 1600 |
| M10(3/8)×80 | 14.0 | 40 | 14.5 | 1600 |
| M10(3/8)×100 | 14.0 | 40 | 14.5 | 1600 |
| M12(1/2)×100 | 17.2 | 50 | 18.0 | 2540 |
| M12(1/2)×120 | 17.2 | 50 | 18.0 | 2540 |
| M12(1/2)×150 | 17.2 | 50 | 18.0 | 2540 |
| M16(5/8)×100 | 21.6 | 60 | 22.0 | 3300 |
| M16(5/8)×120 | 21.6 | 60 | 22.0 | 3300 |
| M16(5/8)×150 | 21.6 | 60 | 22.0 | 3300 |
| M16(5/8)×200 | 21.6 | 60 | 22.0 | 3300 |
| N20(3/4)×160 | 25.4 | 80 | 26.0 | 4950 |
| M20(3/4)×200 | 25.4 | 80 | 26.0 | 4950 |
Artical:Bolt Anchor
Material:SS,Carbon Steel
Finish:YZP,WZP,BZP,H.D.G
Packing:box/carton
