Help CenterFoot Anchor,lifting Anchor
Related Products
lifting anchors were used for the construction industry around the world ,they provide most effective method of lifting and handing precast concrete elements.It is available of swift lift foot anchor,Eye anchor, edge lift anchor,concrete bolt anchor,recess formers and accessories.
We can produce type of forged hardware and fastener by customer’s OEM,the products are in mild carton steel,alloy steel and stainless steel by the weight from 0.1kg to 30kg.
We have patented lifting anchor in China. we would provide qualified products with timely and sincerely service to the customers from all over the world.
PRODUCT NO.

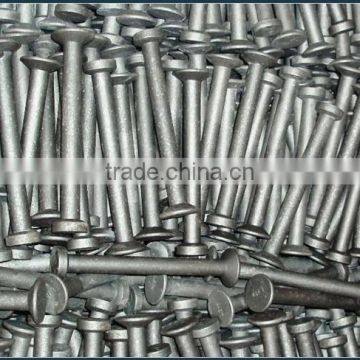

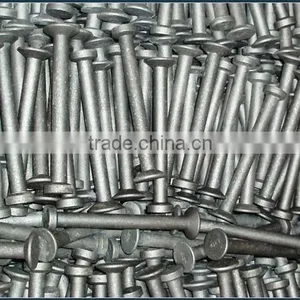

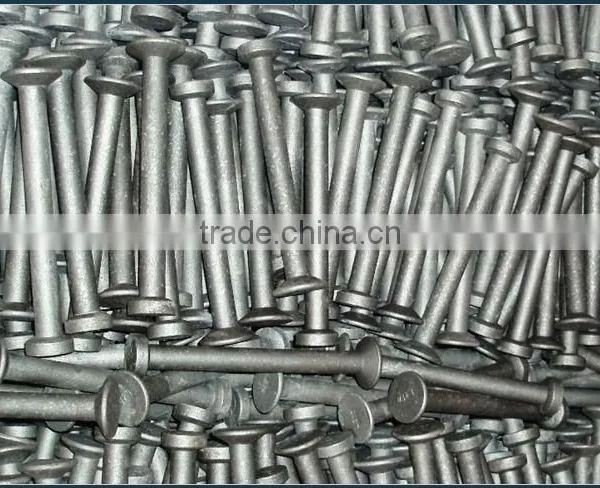

Foot Anchor
DESCRIPTION
1) Material: St52.3 or stainless steel
2) Specification: 1.3T 2.5T 4T 5T 7.5T 10T 15T 20T 32T
3) Surface: plain, Zinc plating, H.D.G
4) Products available: We're manufactue specialized in producing Swift Lift hardware to lift and handle precast concrete elements series.
The Swift Lift Foot Anchor is hot forged from Manganese steel. The formed head provides spherical seating that the Lifting Eye engages, while a disc-shaped foot is embedded in the concrete. Due to its being a forged part, the Swift Lift Foot Anchor does not depend on welds or thread engagement to develop its safe working load. Forging provides maximum safety with its advantageous material structure. This allows the anchor to easily meet the OSHA requirement of a 4 to 1 factor of safety.In addition to the Manganese steel anchors, Type 304 or 316 Stainless Steel Swift Lift foot Anchors are available on special order. Use stainless steel anchors when maximum protection against corrosion is required.
| 1.3T: L=35mm,40mm,50mm,55mm,65mm,85mm,120mm,240mm are available. | ||
R | R1 | R2 |
10mm | 19mm | 25mm |
| 2.5T: L=45mm,55mm,65mm,70mm,85mm,100mm,120mm,170mm,280mm are available. | ||
R | R1 | R2 |
14mm | 26mm | 35mm |
5.0T: L=65mm,75mm,80mm,95mm,120mm,160mm,180mm,210mm,240mm,340 are available. | ||
R | R1 | R2 |
20mm | 36mm | 50mm |
7.5T: L=85mm,95mm,120mm,150mm,160mm,200mm,300mm,540mm are available. | ||
R | R1 | R2 |
24mm | 46mm | 60mm |
| 10.0T: L=100mm,110mm,115mm,120mm,135mm,150mm,170mm,250mm,340mm,650mm,680mm are available. | ||
R | R1 | R2 |
28mm | 46mm | 70mm |
SPECIAL NOTES
