The multi-function Solar System Connection

Specifications

ACC to IEC60670-1 and IE C60670-22 standard
Connector with fuse, to solve the PV module's current overload question.

The multi-function Solar System Connection

Product summarization:

Connector R4 system for photovoltaic adopts contact and insertion of read with innerknob type. It is used with male and famale points,PV junction box and cables made of elastomeri.



ACC to IE C60670-1 and IE C60670-22 standard.

Connector with fuse, to solve the PV module's current overload question. Avoid the mismatch appearance, protect the PV.

Specification:



Product Name	The multi-function Solar System Connection
Rated current	30A (4mm2, AWG12)
Conventional Rated current	30A
Withstanding Voltage	DC1000V
Contact resistance	2mΩ
Insulation resistance	> 500MΩ
Ambient temperature	-40°C~90°C
Protection class	IP65
Safety class	Ⅱ
Housing	TPU





           ♥ ♥ ♥ ♥ ♥ Advantage ♥ ♥  ♥  ♥ ♥

      1 .Low MOQ: It can meet your promotional business very well.

      2. OEM Accepted : We can produce any your design .

      3. Good Service : We treat clients as friend.

      4. Good Quality :We have strict quality control system .Good reputation in the market.

      5. Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).

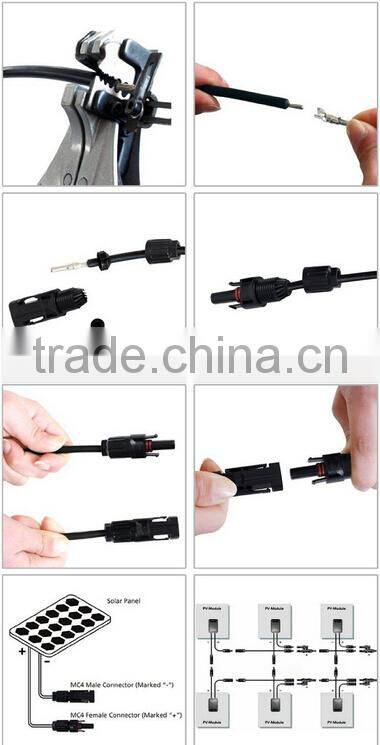

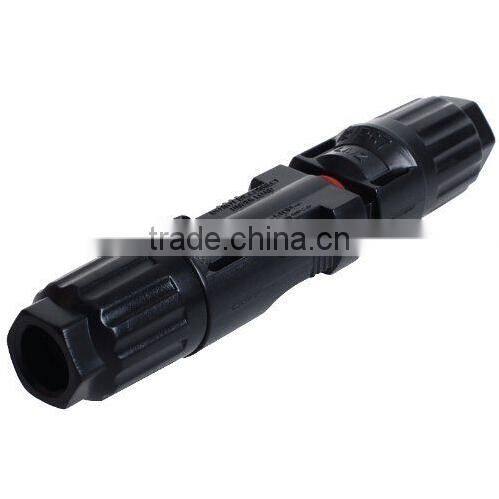

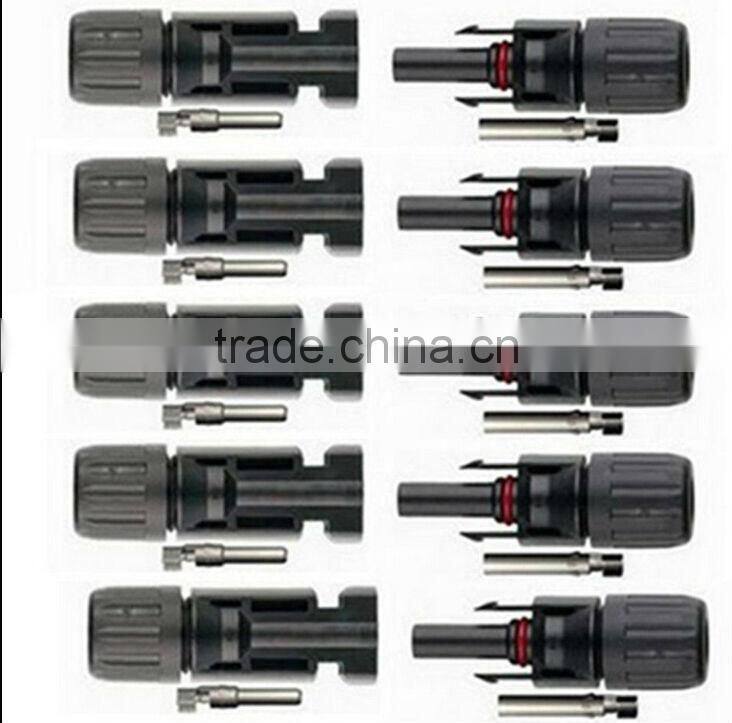

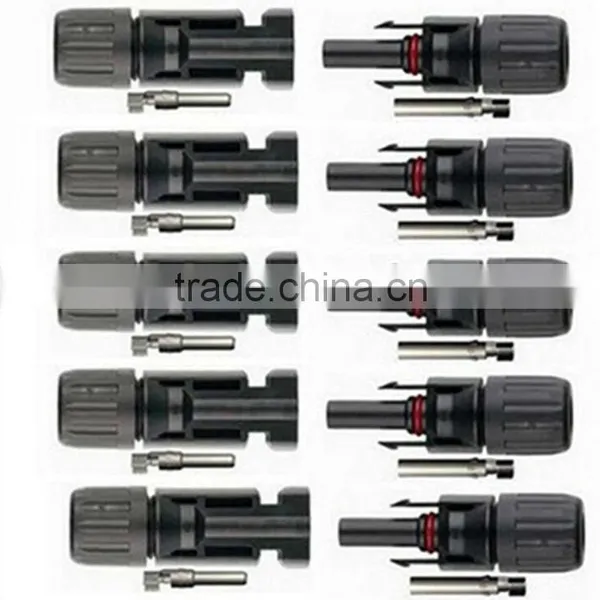

Photoes:













We always offer competitive prices for any clients, we do not seek for super profit from any orders, our profits are mainly attained from large orders and repeated orders from old clients.



We well understand that success business is always not from super profit, the most important thing is to take customer's profit into priority account. Therefore:

1, We always help customers find economic transportation,
2, We always quote with reasonable prices,---We do not promise lowest prices, but we promise competitive prices.
3, We always keep timely delivery for orders
4, We are always strict in quality control



If you are interested in them, please contact me freely. We also offer other silica gel items for you.
