Dunnage Bag Air Dunnage Bag Inflatable Bag Dunnage Air Abg Contanier Pillow Bag /pp Woven Dunnage Bag/ Dunnage Air Bags
Width of 1000 mm, 2000 mm in length.Fill the width of 400 mm, height 1800 mm.
Product description:
Buffer inflatable Bag Dunnage Bag outside the Bag is made of PP and PE coated kraft paper, tough and strong, inner Bag is made of PA mainly five layer arch from the nylon plastic.This is an innovative and easy to use transport protection tools.One-way non-return valve inflated or deflated, fast operation, airtight and firm, can be 10 tons of under pressure.Buffer inflatable Bag Dunnage Bag in simple and easy to use, can greatly save the time, using the effective reduce the transportation cost, has been adopted by more and more companies.
The buffer inflatable Bag Dunnage Bag have what effect?

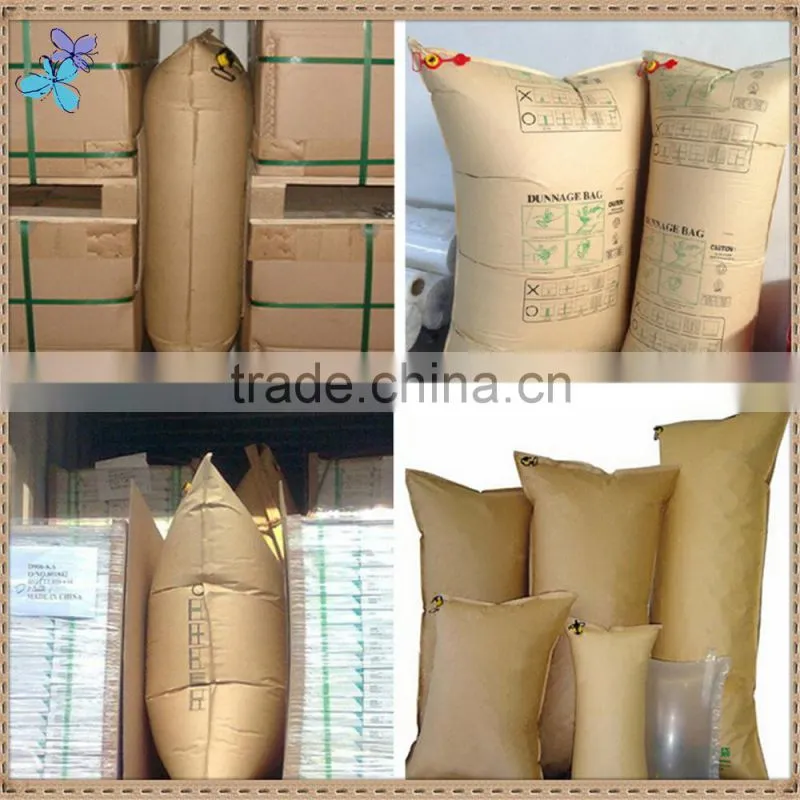

Buffer inflatable Bag Dunnage Bag which can effectively prevent the trucks, container, or the movement of goods in railway transportation.It fully filling the space between the goods, to support the weight of the goods due to shake, absorb vibration, to protect the goods from damage during transit.Better than any other support filling protection, than with the traditional filling method such as foam plastic more environmental protection, than with pallets, wood and other fixed way more economical.
2. What is the most common factor of the damage occurred during transit?
The biggest damage factor is in the process of transportation of goods from the forward or backward collisions between damage to the packaging and then cause the damage of the goods.
3. How to decide what to use the size of the buffer inflatable Bag Dunnage Bag?
A, measuring the space between the size of goods
B, measure the overall height cargo stowage
C, the depth of the measuring the depth of the tray or packing size
type
| Specification(WxL) | width(mm) | Use standard pressure(kg/cm²) | breaking pressure(kg/ cm²) | Operating Altitude(mm) |
AQD0510 | 500x1000 | 200 | 0.5~1 | 1.5~2 | 900 |
AQD0518 | 500x1800 | 200 | 0.5~1 | 1.5~2 | 1700 |
AQD0609 | 600x900 | 250 | 0.5~1 | 1.5~2 | 200 |
AQD0612 | 600x1200 | 250 | 0.5~1 | 1.5~2 | 1100 |
AQD0618 | 600x1800 | 250 | 0.5~1 | 1.5~2 | 1700 |
AQD0812 | 800x1200 | 300 | 0.5~1 | 1.5~2 | 1100 |
AQD0815 | 800x1500 | 300 | 0.5~1 | 1.5~2 | 1400 |
AQD0912 | 900x1200 | 350 | 0.5~1 | 1.5~2 | 1100 |
AQD0915 | 900x1500 | 350 | 0.5~1 | 1.5~2 | 1400 |
AQD0918 | 900x1800 | 350 | 0.5~1 | 1.5~2 | 1700 |
AQD0921 | 900x2100 | 350 | 0.5~1 | 1.5~2 | 2000 |
AQD1014 | 1000x1400 | 400 | 0.5~1 | 1.5~2 | 1300 |
AQD1016 | 1000x1600 | 400 | 0.5~1 | 1.5~2 | 1500 |
AQD1018 | 1000x1800 | 400 | 0.5~1 | 1.5~2 | 1700 |
AQD1020 | 1000x2000 | 400 | 0.5~1 | 1.5~2 | 1900 |
AQD1218 | 1200x1800 | 500 | 0.5~1 | 1.5~2 | 1700 |
AQD1224 | 1200x2400 | 500 | 0.5~1 | 1.5~2 | 2300 |
