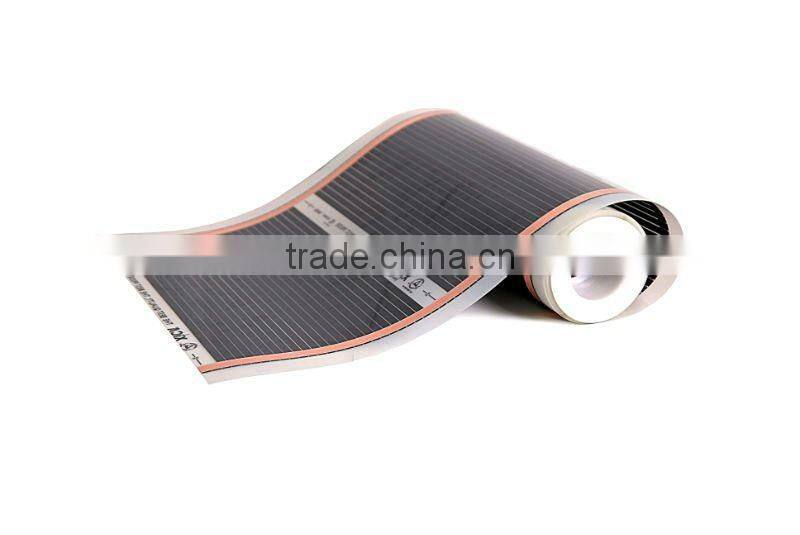

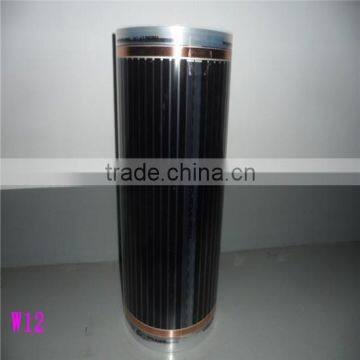

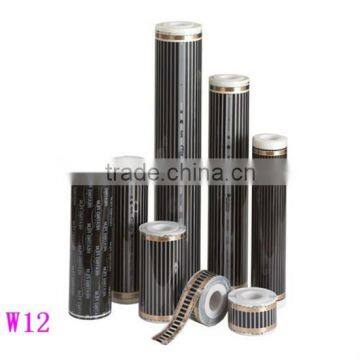

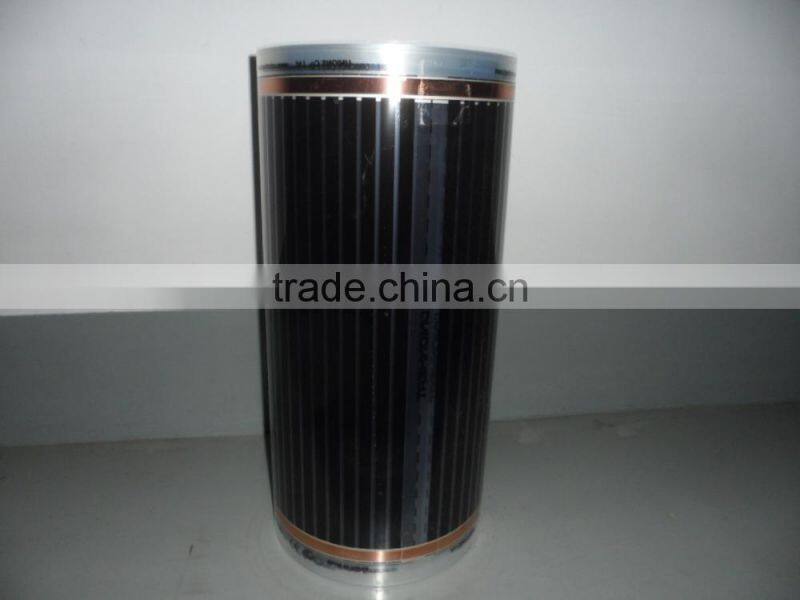

Help CenterNew Product!! Self-adhesive Carbon Floor Heating Film/Carbon Heating Film
Related Products
-
High Quality! Agricultural Mulch Film/PE Mulch Film/ PE Agriculture FilmUS$ 980 - 1,500MOQ: 5 Metric Tons -
Aluminum Metallized Film / Plastic Automatic Packing Rolls /Aluminum Foil Composite FilmUS$ 1 - 5MOQ: 1 Kilogram
-
Cpp Film Cast Polyropylene Film Composite Membrane for Food Packaging FilmUS$ 1 - 1,000MOQ: 25 Metric Tons
-
PA/PE Film PA/PE Multi-layer Co-extrusion Stretch Film Seven Layers of Nylon Co-extrusion FilmUS$ 1 - 1,000MOQ: 16 Metric Tons
-
Polyolefin Film POF Shrink Film Polyolefin Shrink Film POF Heat FilmUS$ 1 - 1,000MOQ: 25 Metric Tons
Description
This kind of carbon floor heating films are mainly designed to be used in floor heating systems,user-friendly and eco-friendly.
Feature

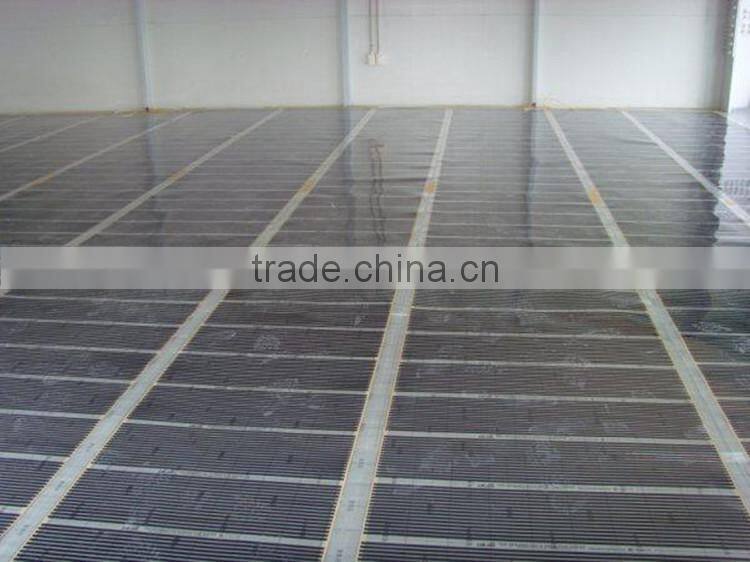

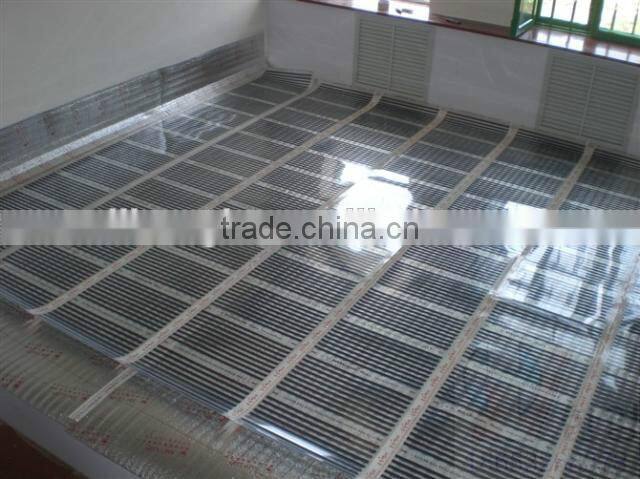

Ideal for installation under any type of floating floor..
Provides radiant floor heat with a level of comfort that no other heating method can match
Benefits the human body by applying for infrared heat .
No electromagnetic waves emitted from the heating film.
With its slim design, it is simple to install and ready to use.
Able to select desired temperature level for your own comfort .
Small or partial application is possible.
Extremely energy efficient
Produces negative ions.
Technical Data
| Power supply: 230VAC, 50Hz | IP Grade: IP54 |
| Compression strength: 2750V | Tensile strength: 0.15mp/cm2 |
| Insulation grade: B1 | Ambient temperature: -40~+90°C |
| Radiance: 75%~85% | Oxygen index: >31% |
| Thickness: 0.25mm | Wavelength of radiation: 8~15μm |
| The max breakdown voltage: 10,000V | Melting temperature: 110°C |
| Flame retardant rating: UL94VO | Infrared energy: 756.9K/m2 |
| Adhesive strength: 8.0kg/cm2 | The max surface temperature: 73°C |
Specification
Width:0.5m
Length/roll:100m
Thickness:0.25mm
Weight: 22Kgs/roll
Electric Consumption(W/m2): 220W
Copper bar width: 15mm
Silver Paste: 18mm
