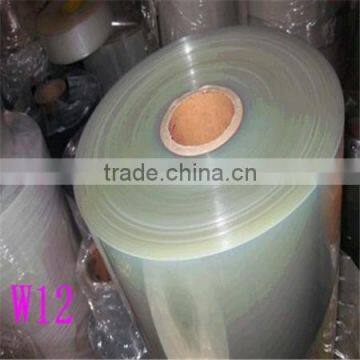

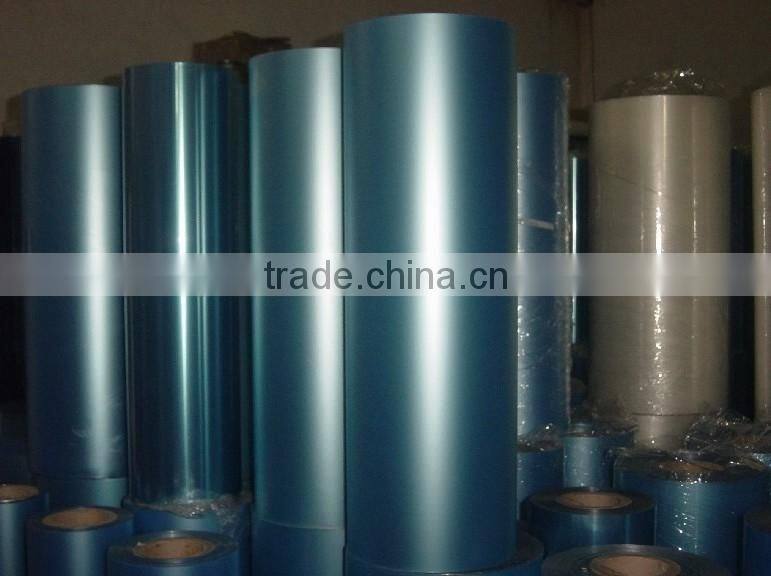

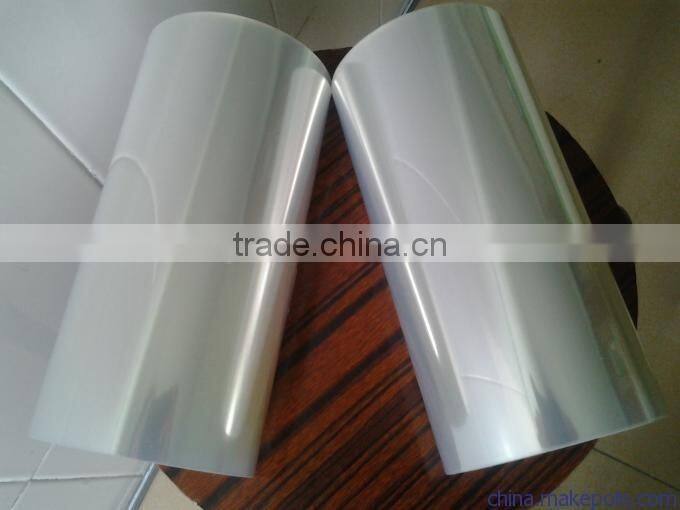

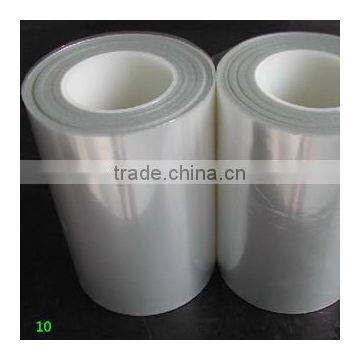

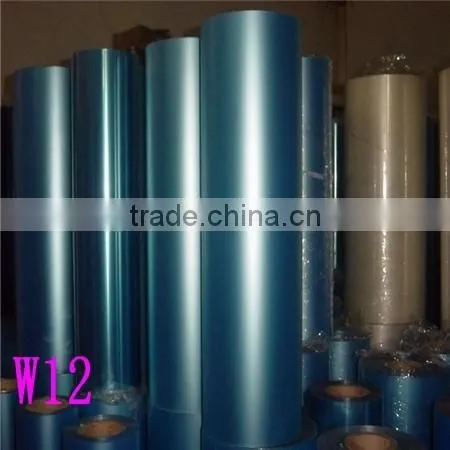

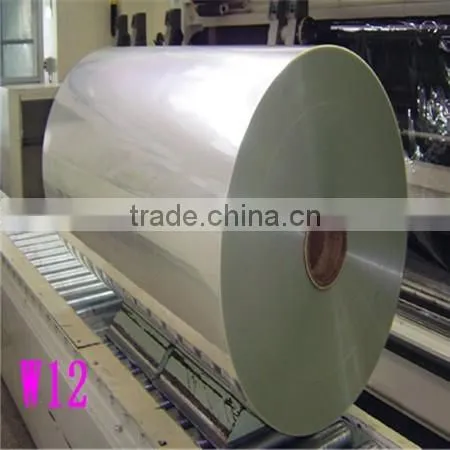

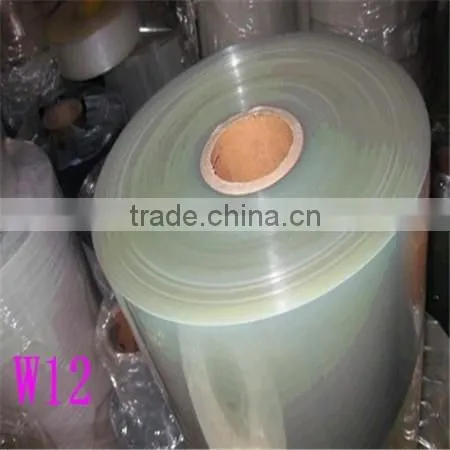

Help Center12 Micron Blue Pet Film for Laminated Glass/ PET Heat Sealing Film for Packing/Transparent PET Self Adhesive FILM
Related Products
-
FREE Testing! PVA Film/PVA Cold Water Soluble Film for the Chemical Package/pva Embroidered FilmUS$ 980 - 1,800MOQ: 5 Tons -
HIPS Films/High Impact Polystyrene Sheets/HIPS Sheets/HIPS RESINUS$ 1,000 - 1,700MOQ: 3 Tons
-
Medical Grade CPP Sealing Film/CPP Casting Film for Food Package/opp Cpp FilmUS$ 1,000 - 1,600MOQ: 5 Tons
-
New Discount!! 25-130micron OPP Film Food Grade /OPP Plastic Film/bopp Film for Opp BagUS$ 950 - 1,500MOQ: 5 Tons
-
Manufacturer !!aluminum Foil Film/food Grade Aluminum Foil/aluminum Foil FilmUS$ 1,020 - 1,800MOQ: 5 Tons
Widely used in pringting,packing field.
Bruckner and Dornier
Specification
Spec | ||||||||
Thickness |
Length |
Width |
Core size |
|||||
10~50 µm |
|
325mm~2500mm |
3”, 6” |
|||||
*) Other specifications on request. The typical lengths of reel roll equal to 12 µm film roll lengths are 6000m, 12000m, 18000m,24000m and 36000m. | ||||||||
|
The film is processed by three layer co-extrusion. Low heat shrinkage. High combination with multiple resin. High tensile strength. One side corona treatment is available. Stable quality. | ||||||||
Physical Property | ||||||||
Properties |
Unit |
Typical Value |
Scope |
Method |
||||
Thickness |
TD |
µm |
tolerance±4% |
12±0.2 |
DIN 53370 |
|||
Tensile Strength |
MD |
N/mm2 |
>200 |
100~235 |
ASTM D882 |
|||
TD |
N/mm2 |
>220 |
245~280 |
ASTM D882 |
||||
Elongation |
MD |
% |
>100 |
130~160 |
ASTM D882 |
|||
TD |
% |
>100 |
105~125 |
ASTM D882 |
||||
E Module |
MD |
N/mm2 |
>4000 |
4000~4300 |
ASTM D882 |
|||
TD |
N/mm2 |
>4200 |
4400~4800 |
ASTM D882 |
||||
Haze |
TD |
% |
2.5~3.0 |
2.5~3.0 |
ASTM D1003 |
|||
Heat Shrinkage |
MD |
% |
<1.55 |
1.3~1.5 |
BMSTT11 |
|||
TD |
% |
<-0.1 |
-0.1~-0.25 |
BMSTT11 |
||||
Wetting tension |
TD |
mN/m |
>54 |
58 |
ASTM D2578 |
|||
|
Remark: MD is machine direction, TD is transverse direction. The values above can not be understood as guaranteed values. They are only the basic test values for your reference. If required can be adjusted according to your requirements.l Listed are the average test values token from 6.2m,6.7m and 8.7m width jumbo roll | ||||||||
