Digital Humidity Sensor

Name: Digital Humidity Sensor
Brand: Tongdy
SKU: 141811150
Availability: InStock

Tongdy Sensing Technology Corporation (Beijing)

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Beijing, China

Brand Name:

Tongdy

Model Number:

F2000P-TH

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Beijing

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Beijing, China

Brand Name Tongdy

Model Number F2000P-TH

Theory Other, on/off output to control temperature and humidity

Output Digital Sensor

digital humidity sensor

digital humidity sensor Features

u Detect and display ambiance relative humidity& temperature

u A high accuracy RH & Temp. sensor inside

u LCD can display working status such as %RH,

temperature, set point, and device mode, etc.

Makes reading and operating easy and accurate

u Provide one or two dry contact outputs to control a

Humidifier/dehumidifier and a cooling/heating device

u All models feature user-friendly setting buttons

u Enough parameters setup for end users for more

applications. All setup will be held even if power

failure

u Button-lock function avoids wrong operation and keep on the setup

u Infrared Remote Control (optional)

u Blue backlight (optional)

u Modbus RS485 interface (optional)

u Provide the controller with an external RH&Temp. sensor or external RH&Temp. sensor box

u Other wall mounting and duct mounting humidity controllers, please see our high accuracy hygrostat THP/TH9-Hygro series and THP –Hygro16 Plug-and-Play high-power humidity controller.

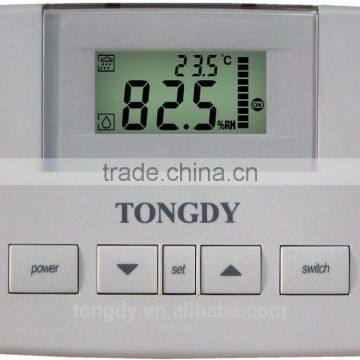

Buttons and LCD

humidity device on

setting switch

temperature

humidify

down up

turn on/off

set cool/heat mode for temperature

dehumidify

relative humidity

Models

Product Name	Model	Description
Humidity Controller Power supply: -(A)/(B)/(C) A: 230VAC B: 110VAC C: 24 VAC	F2000P-TH-K01-a-(A)/(B)/(C)	Detect and display RH&Temp. 1XON/OFF relay output to control a humidifier or dehumidifier. The max. current is 5A.
	F2000P-TH-K02-a-(A)/(B)/(C)	Detect and display RH&Temp. 2 ON/OFF relay outputs to control a humidifier/ dehumidifier and a cooling/heating device. The max. current is 5A.
	F2000P-TH-K01-WT-(A)/(B)/(C)	Detect and display RH&Temp. with the external sensor. 1XON/OFF relay output to control a humidifier or dehumidifier.
	F2000P-TH-K02-WT-(A)/(B)/(C)	Detect and display RH&Temp. with the external sensor. 2 ON/OFF relay outputs to control a humidifier/ dehumidifier and a cooling/heating device.
	F2000P-TH-K01-TSM-(A)/(B)/(C)	Detect and display RH&Temp. with an external sensor box. 1XON/OFF relay output to control a humidifier or dehumidifier.
	F2000P-TH-K02-TSM-(A)/(B)/(C)	Detect and display RH&Temp. with an external sensor box. 2X ON/OFF relay outputs to control a humidifier/ dehumidifier and a cooling/heating device.
Humidity Controller With Modbus	F2000PC-TH-K01-(A)/(B)/(C)	Detect and display RH&Temp. 1XON/OFF relay output to control a humidifier or dehumidifier. Modbus interface
Humidity Controller With Modbus	F2000PC-TH-K02-(A)/(B)/(C)	Detect and display RH&Temp. 2 ON/OFF relay outputs to control a humidifier/ dehumidifier and a cooling/heating device. Modbus interface.
Options for Above Models
	Back light-EL	Blue back light displaying
	Remote receiving-R	Remote control humidity with the infrared hand held controller

¨ Specifications

	Power supply		230VAC/110VAC/24VAC selectable in the order
	Output		One or two Max. 5A relay/each for the On/Off output
	Displaying		LCD
	External sensor connection		Typical 2m, 4m/6m/8m selectable
	Net weight		280g
	Dimensions		120mm(L)×90mm(W)×32mm(H)
	Mounting standard		Wall mounting in the wire box of 2”×4” or 65mm×65mm
Sensor spec.		Temperature		Humidity
Accuracy		±0.5°C (20°C~40°C)		±3.5% RH (20%-80%RH), 25°C
Measuring range		0°C~60°C		0~100%RH
Display resolution		0.1°C		0.1%RH
Stability		<0.04°C/year		<0.5%RH/year
Storage environment		10°C-50°C, 10%RH~80%RH
